HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88453AFAN, COOLING

main88453-20020iST162..ST;ST162..CVT198708-198908

main88453-32020iST162..GTS198708-198908

88460CONDENSER ASSY, COOLER

main88460-20200iST162..ST;ST162..CVT198708-198908

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iST162..ST;ST162..CVT198708-198908

sub04884-33110

88470CBOLT, FUSE

main88475-12020iST162..ST;ST162..CVT198708-198908

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iST162..GTS198708-198908

main88550-20030iST162..ST;ST162..CVT198708-198908

sub88550-24060

88590BLOWER ASSY, W/SHROUD

main88590-20080iST162..ST;ST162..CVT198708-198908

main88590-20100iST162..GTS198708-198908

8845420050GRILLE, AIR GRILLE HOLDER BASE

main88454-20050

8857832020PAKING, COOLER AIR DUCT

main88578-32020

8868820600BRACKET, COOLER DIAPHRAGM

main88688-20600

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9009080509

main90090-80509

9009120609

main90091-20609

9017906032

main90179-06032

9165140612

main91651-40612

9165140614

main91651-40614

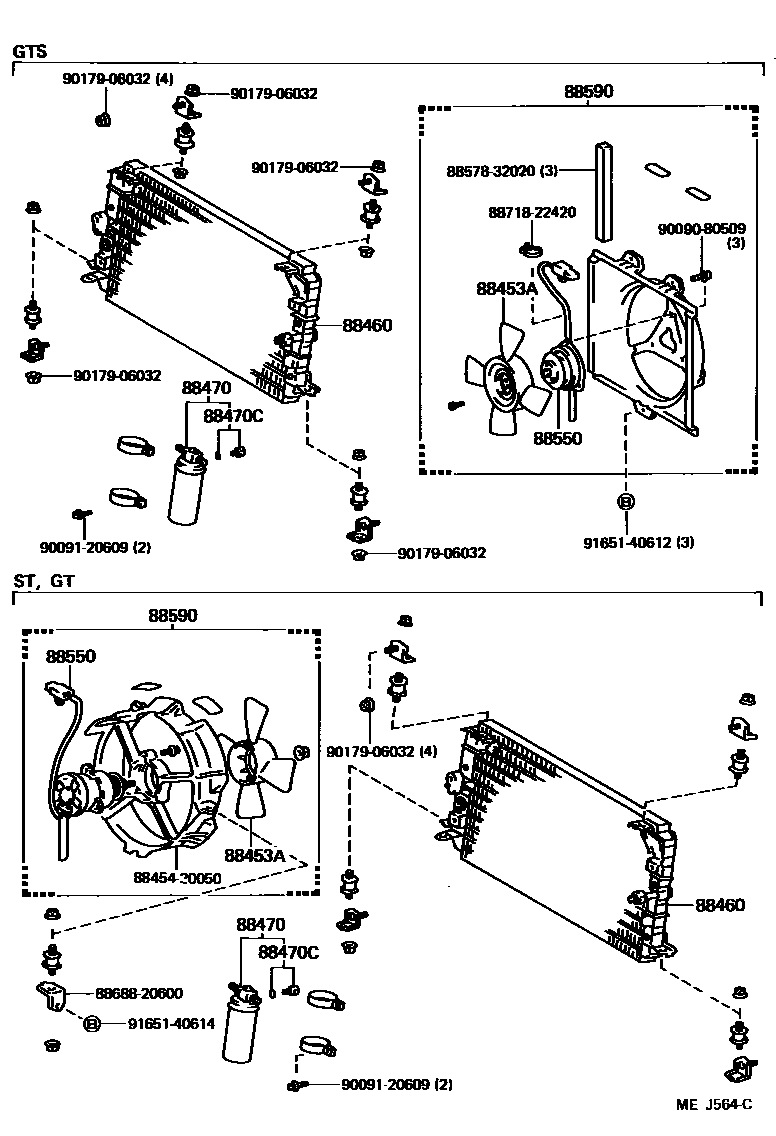

15 parts on this diagram · 2 diagrams in section
