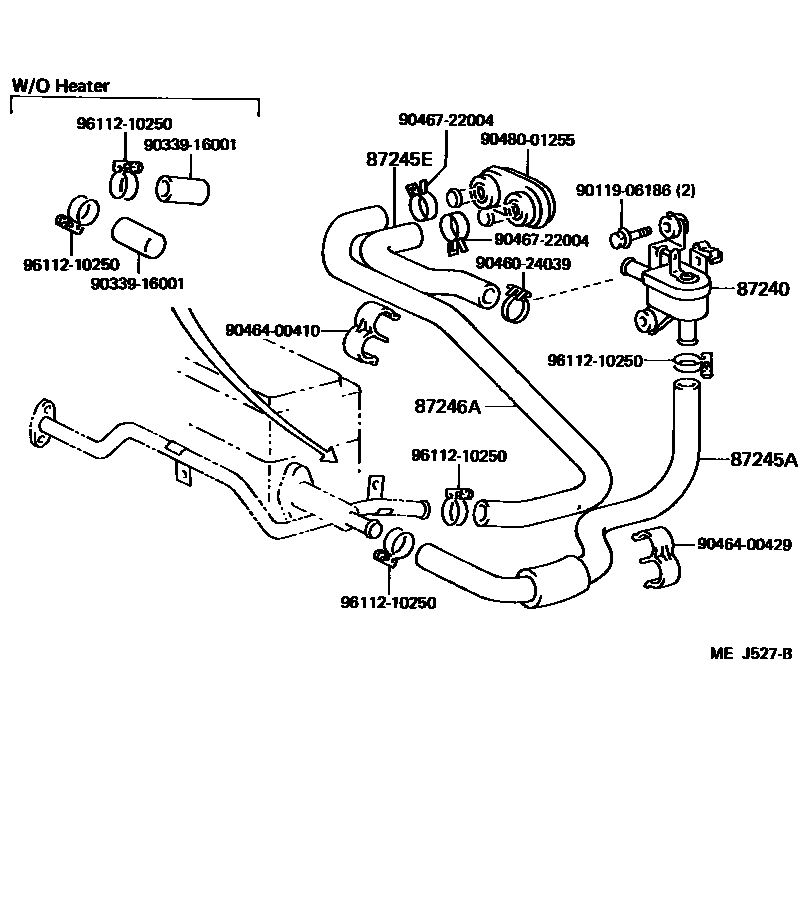

HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-20300iST16#¥3,210198708-198908

87245AHOSE, HEATER WATER, INLET A

main87245-2B080iST162¥880198708-198908

main87245-2B430iST165¥1,050198710-198908

87245EHOSE, HEATER WATER, INLET E

main87245-20820iST16#¥1,530198708-198908

87246AHOSE, HEATER WATER, OUTLET A

main87245-20870iST16#¥2,660198708-198908

9011906186

main90119-06186¥140

9033916001

main90339-16001¥180

9046024039

main90460-24039

9046400410

main90464-00410¥0

9046400429

main90464-00429¥260

9046722004

main90467-22004¥330

9048001255

main90480-01255

9611210250

main96112-10250¥240

12 parts on this diagram · 1 diagram in section
