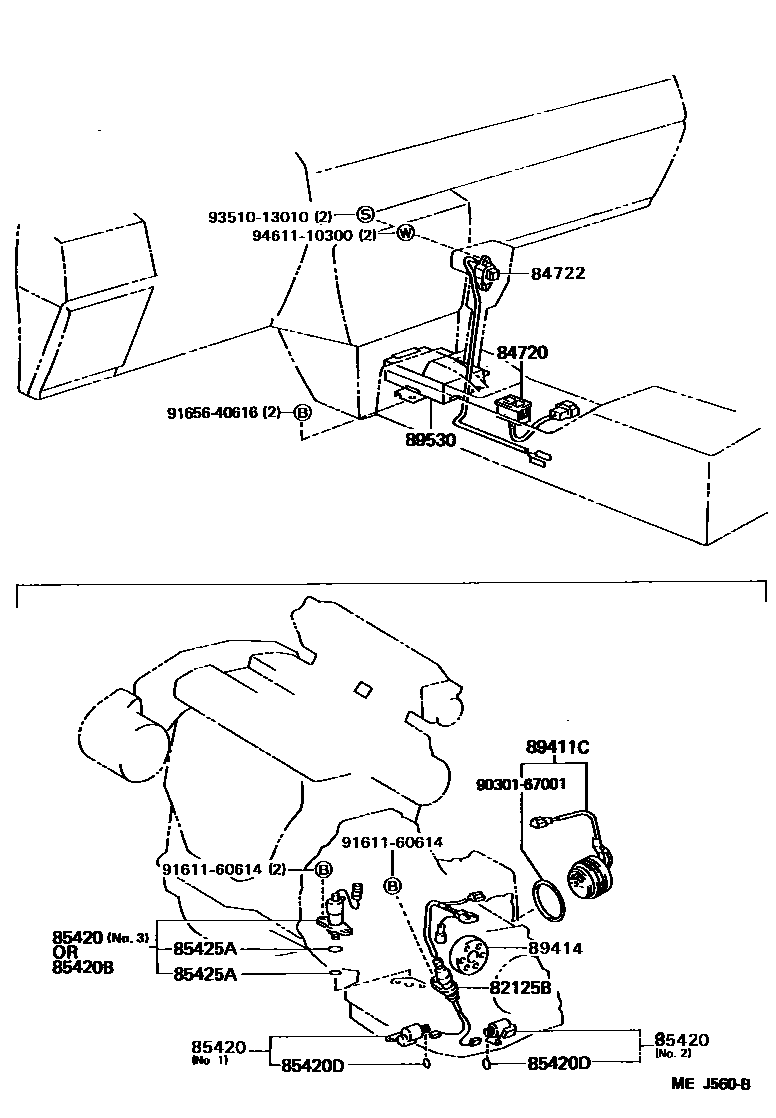

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-20090iST162..4FC..GTS198708-198908

84720SWITCH ASSY, PATTERN SELECT

main84720-20060iST162..4FC..GTS198708-198908

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-11iST162..4FC198708-198908

BLACK,TRIM2#

sub84722-20040

main84722-20040-12iST162..(CP,LB)..4FC198708-198908

RED,TRIM3#

sub84722-20040

main84722-20040-24iST162..(CP,LB)..4FC198708-198908

BLUE,TRIM8#

sub84722-20040

main84722-20040-25iST162..(CP,LB)..4FC198708-198908

DARK BEIGE,TRIM4#

sub84722-20040

85420SOLENOID ASSY, TRANSMISSION

main85420-32020iST162..4FC..GTS198708-198809

NO.1

sub85420-32021

main85420-32021iST162..4FC..GTS198809-198908

NO.1

main85420-32040iST162..4FC..GTS198708-198809

NO.2

sub85420-32041

main85420-32041iST162..4FC..GTS198809-198908

NO.2

main85420-32071iST162..4FC..GTS198708-198908

NO.3

sub85420-32061

85420BSOLENOID ASSY, TRANSMISSION

main85420-32081iST162..4FC..(GT,ST)198708-198908

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iST162..4FC..GTS198708-198908

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iST162..4FC..(GT,ST)198708-198908

ID=6.6

main96721-19017iST162..4FC..(GT,ST)198708-198908

ID=17

89411CSENSOR, SPEED

main89411-20020iST162..4FC..GTS198708-198904

sub89411-32040

main89411-32040iST162..4FC..GTS198904-198908

89414ROTOR, SENSOR

main89414-32010iST162..4FC..GTS198708-198908

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-20220iST162..4FC..GTS198708-198808

AISIN

sub89530-20350

main89530-20350iST162..4FC..GTS198808-198908

AISIN

9030167001

main90301-67001

9161160614

main91611-60614

9165640616

main91656-40616

9351013010

main93510-13010

9461110300

main94611-10300

15 parts on this diagram · 1 diagram in section
