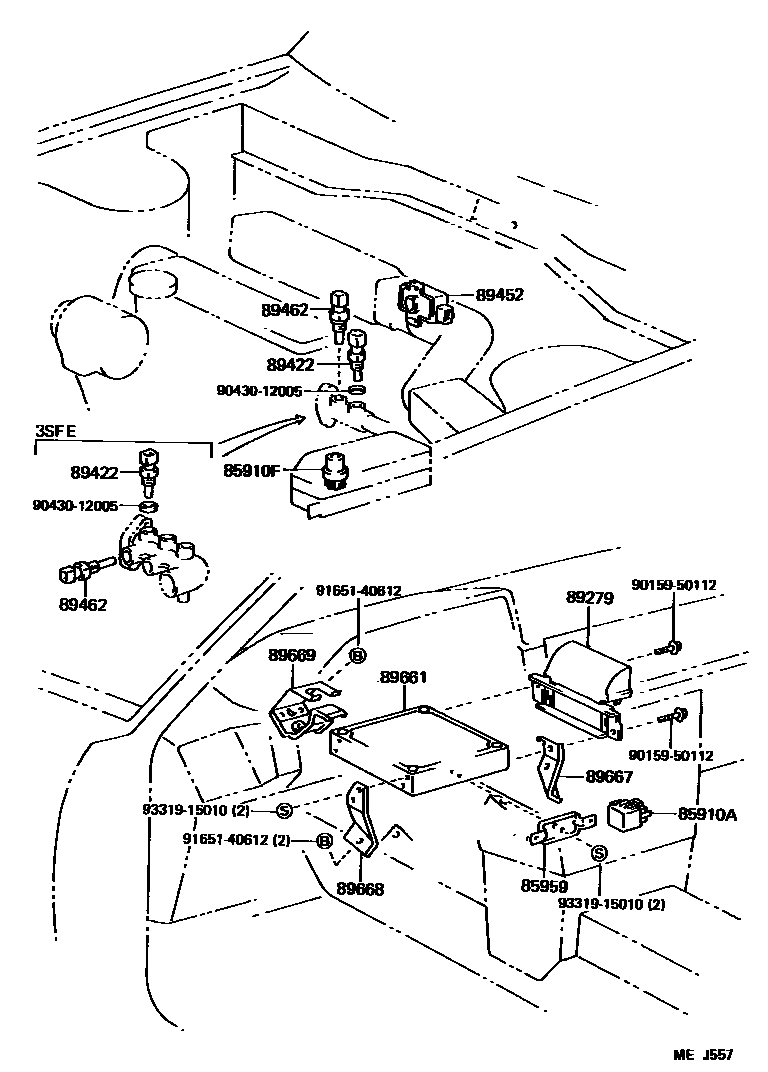

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iST16#198708-198908

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iST16#198708-198908

85959HOLDER, RELAY

main85959-20070iST165198710-198908

main85959-20100iST162198708-198908

89279COVER, ENGINE CONTROL COMPUTER

main89279-20100iST165198710-198908

main89279-32030iST162..GT,ST198708-198908

main89279-32040iST162..GTS198708-198908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iST16#198808-198908

main89422-30020iST16#198708-198808

sub89422-12010

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20050iST16#..GTS,TBO4W,TBOAT198708-198908

main89452-32020iST162..GT,ST198708-198908

89462SWITCH, START INJECTOR TIME

main89462-20010iST16#..GTS,TBO4W,TBOAT198708-198808

main89462-20030iST162..GT,ST198808-198908

main89462-20040iST16#..GTS,TBO4W,TBOAT198808-198908

main89462-30011iST162..GT,ST198708-198808

89661COMPUTER, ENGINE CONTROL

main89661-20320iST162..GTS198708-198908

sub89661-20321

main89661-20360iST165198710-198810

sub89661-20361

main89661-20361iST165198810-198908

main89661-20441iST162..GT,ST198708-198808

sub89661-20443

main89661-32320iST162..GT,ST198808-198811

sub89661-32321

main89661-32321iST162..GT,ST198811-198908

sub89661-32323

main89661-32350iST162..(GT,ST)..USA198808-198811

CALIFORNIA SPEC

sub89661-32351

main89661-32351iST162..(GT,ST)..USA198811-198908

CALIFORNIA SPEC

sub89661-32353

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20100iST162198708-198908

main89667-20120iST165198710-198908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20100iST162198708-198908

main89668-20110iST165198710-198908

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-20060iST162198708-198908

main89669-20070iST165198710-198908

9015950112

main90159-50112

9043012005

main90430-12005

9165140612

main91651-40612

9331915010

main93319-15010

15 parts on this diagram · 3 diagrams in section
