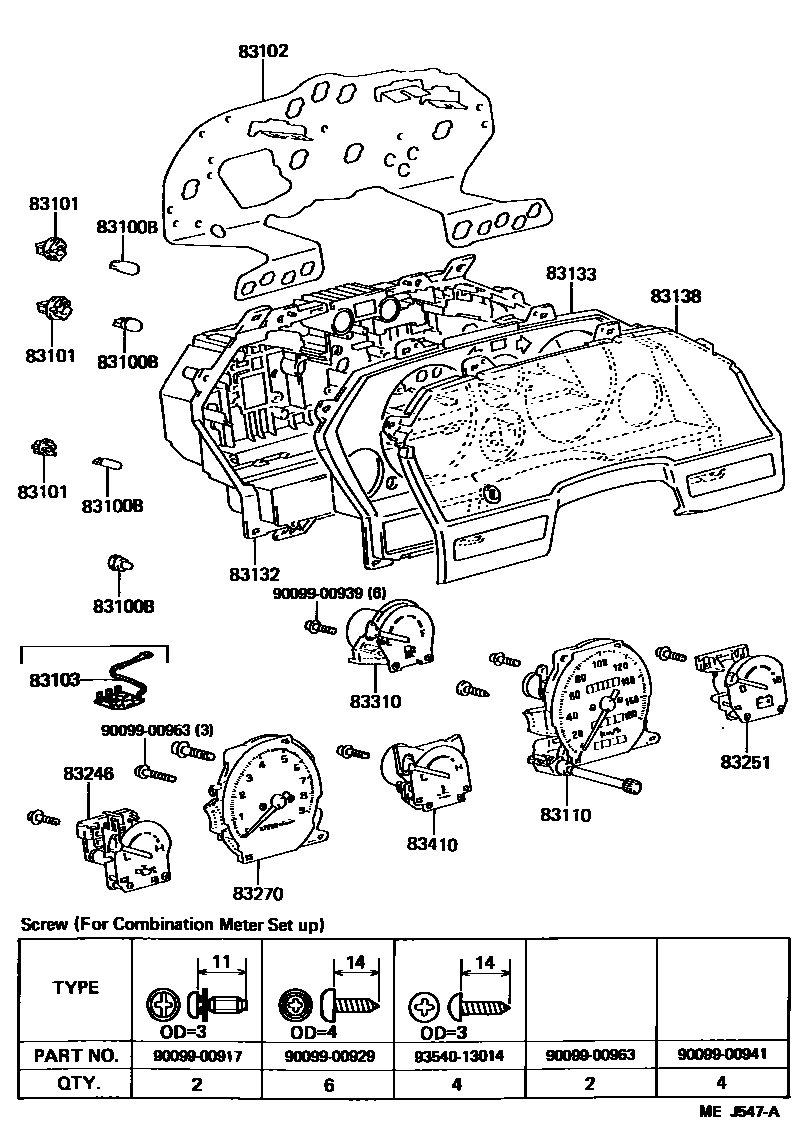

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83101-20080×2iST162..4FC..GTS198708-198908

12V 1.4W,W(SOCKET)

main83109-24020×4iST16#198708-198908

12V3.4W W(GREEN CAP)

main90981-11018iST162..(CP,LB)..GT..USA198708-198908

12V 1.2W W/O SOCKET

main99132-12034×4iST162..(CP,LB)..GT198708-198908

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×8iST162..5F..GTS..USA198708-198908

BULB:12V 3.4W

main83101-14040×7iST162..5F..GTS;ST16#..(CP,LB)..(GT,TBO4W,TBOAT)198708-198908

BULB:12V 1.2W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1D020iST162..5F..GTS198708-198908

main83247-1D040iST162..4FC..GTS198708-198908

main83247-1D060iST165198710-198908

sub83247-1D860

main83247-1J130iST162..ST;ST162..CVT198708-198908

main83247-1J150iST162..(CP,LB)..GT198708-198908

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1D180iST165198710-198908

83110SPEEDOMETER ASSY

main83110-2B430iST162..(GT,ST)..USA198708-198908

main83110-2B440iST16#..5F..(GTS,TBOAT)..USA198708-198908

main83110-2B450iST162..(GT,ST)..CND198708-198908

main83110-2B460iST16#..(GTS,TBO4W)..CND198708-198908

main83110-2B620iST162..4FC..GTS198708-198908

83132CASE, COMBINATION METER

main83132-1D400iST162..GTS..CND198708-198908

main83132-1D420iST165198710-198908

main83132-1D620iST162..4FC..GTS198708-198908

main83132-1D840iST162..ST;ST162..CVT198708-198908

main83132-1D860iST162..(CP,LB)..GT198708-198908

83133PLATE, COMBINATION METER, NO.1

main83133-1B490iST16#198708-198908

83138GLASS, SPEEDOMETER

main83138-1B150iST16#198708-198908

83246GAUGE, OIL PRESSURE RECEIVER

main83246-14650iST16#198708-198908

83251METER, VOLTAGE

main83251-14630iST162198708-198908

main83251-14730iST165..CND198710-198908

main83251-14750iST165..USA198710-198908

83270TACHOMETER ASSY, ENGINE

main83242-1B130iST162..(GT,ST)..USA198708-198908

main83242-1B150iST162..5F..GTS..USA198708-198908

main83242-1B170iST162..4FC..GTS198708-198908

main83242-1B190iST162..(GT,ST)..CND198708-198908

main83242-1B210iST162..GTS..CND198708-198908

main83242-1D250iST165..USA198710-198908

main83242-1D270iST165..CND198710-198908

83310GAGE ASSY, FUEL RECEIVER

main83243-14730iST16#198708-198908

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B310iST16#198708-198908

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9009900941

main90099-00941

9009900953

main90099-00953

9009900963

main90099-00963

9354013014

main93540-13014

20 parts on this diagram · 3 diagrams in section
