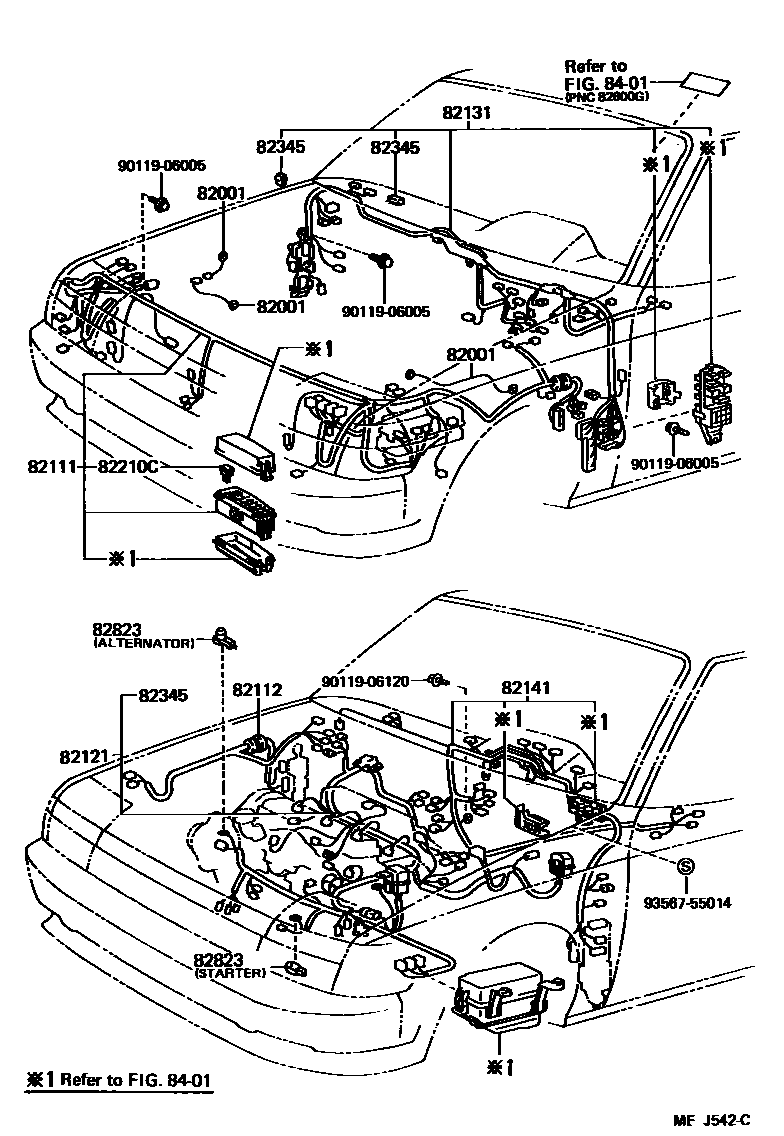

WIRING & CLAMP
82001CABLE, BOND, NO.1
FENDER RH
ENGINE HANGER
TRANSMISSION--FENDER
ENGINE HANGER
ENGINE HANGER
82111WIRE, ENGINE ROOM MAIN
W(CRUISE CONTROL)
W(CRUISE CONTROL OR REAR WINDOW WIPER)
W(ANTI-LOCK BRAKE SYSTEM)
82112WIRE, ENGINE ROOM, NO.2
W(CRUISE CONTROL)
82121WIRE, ENGINE
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)
CALIFORNIA SPEC
CALIFORNIA SPEC
82131WIRE, COWL
W(*PW) OR W(SUN ROOF) OR W(CRUISE CONTROL)
W(*PW) OR W(SUN ROOF) OR W(CRUISE CONTROL) OR W(REAR WINDOW WIPER)
W(ANTI-LOCK BRAKE SYSTEM)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
60A,TERM.:FEMALE,YEL
30A,TERM.:MALE,PNK
100A,TERM.:MALE,BLUE
82345DIODE
NO.1
NO.2
NO.3
NO.4
82823CAP, TERMINAL, NO.1
ALTERNATOR
STARTER
ALTERNATOR
8401
9011906005
main90119-06005
9011906120
main90119-06120
9356755014
main93567-55014
13 parts on this diagram · 10 diagrams in section
