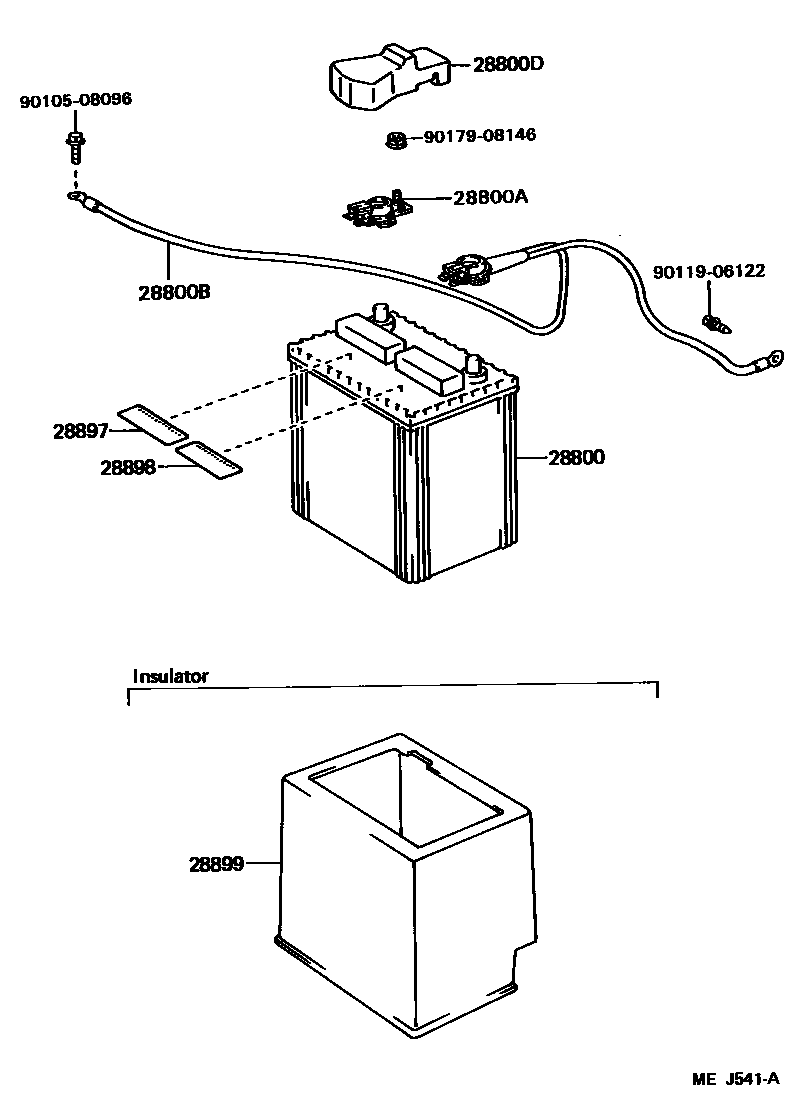

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31020i3SFE,3SGELC..ST162..(CP,LB)..USA198708-198908

32C24L,KOBE

sub28800-31021

main28800-31031i3SFE,3SGELC..ST162..(CP,LB)..USA198708-198908

32C24L,GS

sub28800-31021

main28800-43220i3SFE,3SG#..ST16#198708-198908

55D23L

sub28800-74170

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i3SFE,3SG#..ST16#198708-198908

28800BCABLE, BATTERY TO GROUND

main82123-20090i3SFE,3SG#..ST16#198708-198805

sub82123-20091

main82123-20091i3SGELC..ST162;3SFE,3SGTE..ST16#..5F198805-198908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i3SGELC..ST162198708-198908

28897PLATE, BATTERY CAUTION

main28897-26010i3SFE,3SGELC..ST162..(CP,LB)..USA198708-198908

main28897-38010i3SFE,3SG#..ST16#..CND198708-198908

28898PLATE, BATTERY

main28898-26010i3SFE,3SG#..ST16#..USA198708-198908

28899INSULATOR, BATTERY

main28899-74020i3SGTE..ST165198710-198908

9010508096

main90105-08096

9011906122

main90119-06122

9017908146

main90179-08146

10 parts on this diagram · 1 diagram in section
