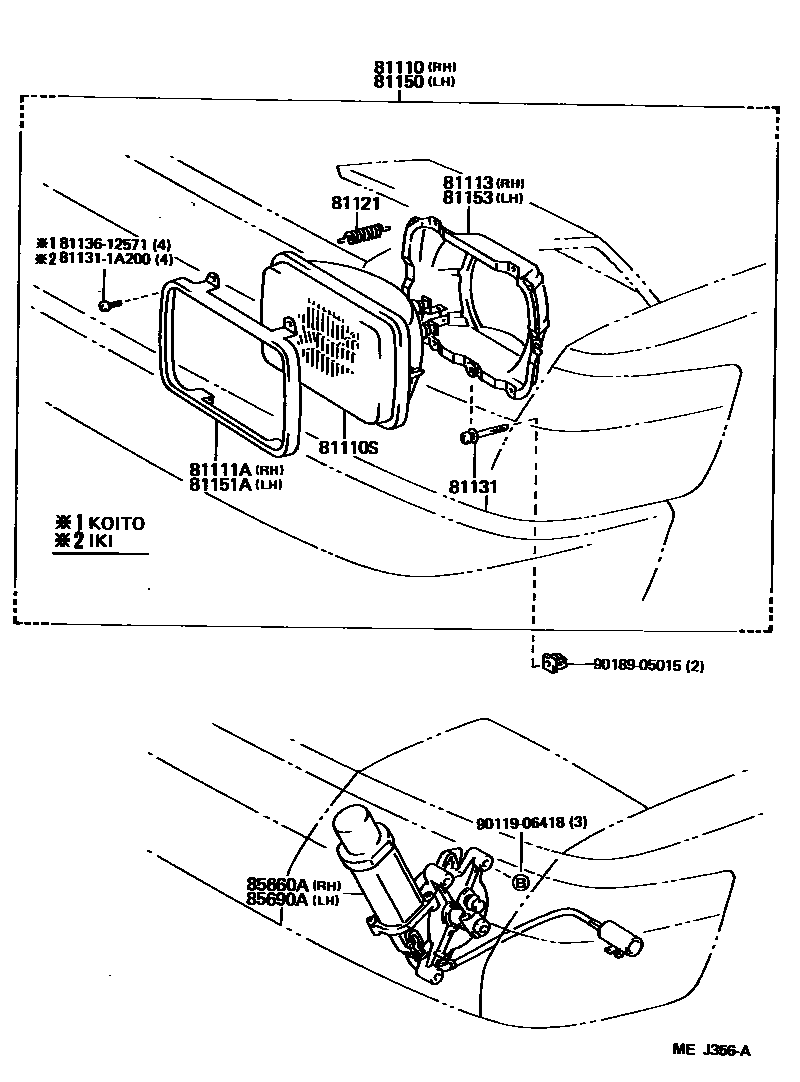

HEADLAMP
81110HEADLAMP ASSY, RH
HALOGEN
KOITO
IKI
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB,KOITO
12V 65/35W,*HAL,*WB
81111ARING, SEALED BEAM RETAINING, NO.1 RH
IKI
81113RING, SEALED BEAM MOUNTING, NO.1 RH
KOITO
HALOGEN
IKI
81121SPRING, HEADLAMP TENSION
IKI
KOITO
HALOGEN
81131SCREW, HEADLAMP ADJUSTING
IKI
KOITO
HALOGEN
81150HEADLAMP ASSY, LH
HALOGEN
KOITO
IKI
81151ARING, SEALED BEAM RETAINING, NO.1 LH
IKI
81153RING, SEALED BEAM MOUNTING, NO.1 LH
KOITO
HALOGEN
IKI
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
811311A200SCREW, HEADLAMP ADJUSTING
main81131-1A200
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9011906418
main90119-06418
9018905015
main90189-05015
15 parts on this diagram · 1 diagram in section
