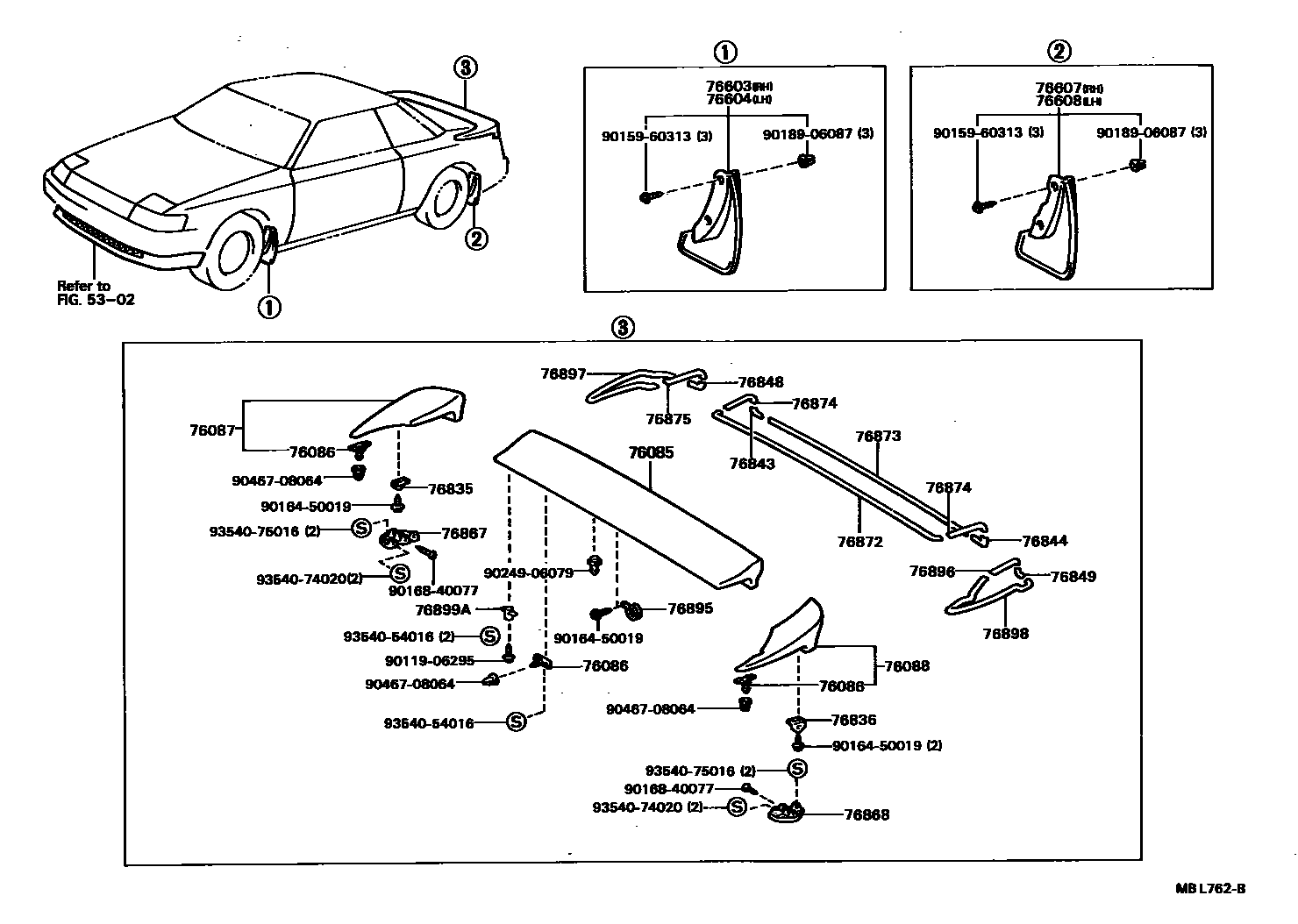

MUDGUARD & SPOILER

0001 1 0002 1

5302

76085SPOILER SUB-ASSY, REAR

main76871-20900iST16#..LB..(GTS,TBO4W,TBOAT)¥46,000198708-198908

main76871-20902iST162..CP..GTS¥44,200198708-198908

76086RETAINER SUB-ASSY, REAR SPOILER

main76086-20080iST162..CP..GTS¥460198708-198908

76087SPOILER SUB-ASSY, REAR NO.1

main76087-20902iST162..CP..GTS¥11,900198708-198908

main76087-20904iST16#..LB..(GTS,TBO4W,TBOAT)¥11,900198708-198908

76088SPOILER SUB-ASSY, REAR NO.2

main76088-20904iST162..CP..GT..USA¥11,900198708-198908

main76088-20907iST16#..LB..(GTS,TBO4W,TBOAT)¥11,900198708-198908

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29075iST162..(CP,LB)..(GT,ST)¥2,500198708-198908

main76603-29095iST162..CVT;ST162..GTS198710-198908

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29075iST162..(CP,LB)..(GT,ST)¥2,500198708-198908

main76604-29095iST162..CVT;ST162..GTS198710-198908

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29095iST162..(CP,LB)..(GT,ST)¥2,500198708-198908

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29095iST162..(CP,LB)..(GT,ST)¥2,500198708-198908

76835RETAINER, REAR SPOILER SIDE, NO.1

main76835-20010iST162..CP..GT..USA¥390198708-198908

main76835-20020iST16#..LB..(GTS,TBO4W,TBOAT)¥390198708-198908

76836RETAINER, REAR SPOILER SIDE, NO.2

main76836-20010iST16#..LB..(GTS,TBO4W,TBOAT)¥390198708-198908

main76836-20020iST162..CP..GT..USA¥390198708-198908

76843PROTECTOR, REAR SPOILER, NO.11 RH

main76843-20010iST162..LB..GT..USA¥640198708-198908

main76843-20020iST162..CP..GTS¥310198708-198908

76844PROTECTOR, REAR SPOILER, NO.11 LH

main76844-20010iST16#..LB..(GTS,TBO4W,TBOAT)¥640198708-198908

main76844-20020iST162..CP..GTS¥310198708-198908

76848PROTECTOR, REAR SPOILER, NO.12 RH

main76848-20010iST162..LB..GT..USA¥1,010198708-198908

main76848-20020iST162..CP..GT..USA¥640198708-198908

76849PROTECTOR, REAR SPOILER, NO.12 LH

main76849-20010iST16#..LB..(GTS,TBO4W,TBOAT)¥1,010198708-198908

main76849-20020iST162..CP..GT..USA¥640198708-198908

76867RETAINER, REAR SPOILER SIDE, RH

main76867-20071iST162..LB..GT..USA¥880198708-198908

main76867-20090iST162..CP..GTS¥1,730198708-198908

76868RETAINER, REAR SPOILER SIDE, LH

main76868-20061iST162..LB..GT..USA¥880198708-198908

main76868-20080iST162..CP..GT..USA¥1,730198708-198908

76872PROTECTOR, REAR SPOILER, NO.1

main76803-20010iST16#..LB..(GTS,TBO4W,TBOAT)¥2,600198708-198908

main76803-20020iST162..CP..GTS¥2,600198708-198908

76873PROTECTOR, REAR SPOILER, NO.2

main76873-20020iST162..CP..GTS¥2,370198708-198908

main76873-20040iST162..LB..GT..USA¥2,170198708-198908

76874PROTECTOR, REAR SPOILER, NO.3

main76874-20020iST162..CP..GT..USA¥1,220198708-198908

76875PROTECTOR, REAR SPOILER, NO.4

main76875-20020iST162..CP..GTS¥1,010198708-198711

sub76875-20021¥1,010

main76875-20021iST162..CP..GT..USA¥1,010198711-198908

76895PROTECTOR, REAR SPOILER, NO.5

main76895-20020iST162..CP..GT..USA¥750198708-198908

main76895-20030iST162..LB..GT..USA¥1,220198708-198908

76896PROTECTOR, REAR SPOILER, NO.6

main76896-20040iST162..CP..GTS¥1,010198708-198711

sub76896-20041¥1,010

main76896-20041iST162..CP..GTS¥1,010198711-198908

76897PROTECTOR, REAR SPOILER, SIDE RH

main76807-20010iST162..LB..GT..USA¥2,550198708-198908

main76807-20020iST162..CP..GTS¥2,550198708-198908

76898PROTECTOR, REAR SPOILER, SIDE LH

main76808-20010iST16#..LB..(GTS,TBO4W,TBOAT)¥2,550198708-198908

main76808-20020iST162..CP..GTS¥2,550198708-198908

76899PROTECTOR, REAR SPOILER, SIDE NO.6

main76899-20030iST162..LB..GT..USA¥660198708-198908

76899ANUT, REAR SPOILER

main76899-20010iST162..CP..GT..USA¥240198708-198908

9011906295

main90119-06295¥140

9015960313

main90159-60313¥80

9016450019

main90164-50019¥120

9016840077

main90168-40077¥130

9018906087

main90189-06087¥130

9024906079

main90249-06079¥330

9046708064

main90467-08064¥190

9354054016

main93540-54016¥90

9354074020

main93540-74020¥120

9354075016

main93540-75016¥130

37 parts on this diagram · 2 diagrams in section
