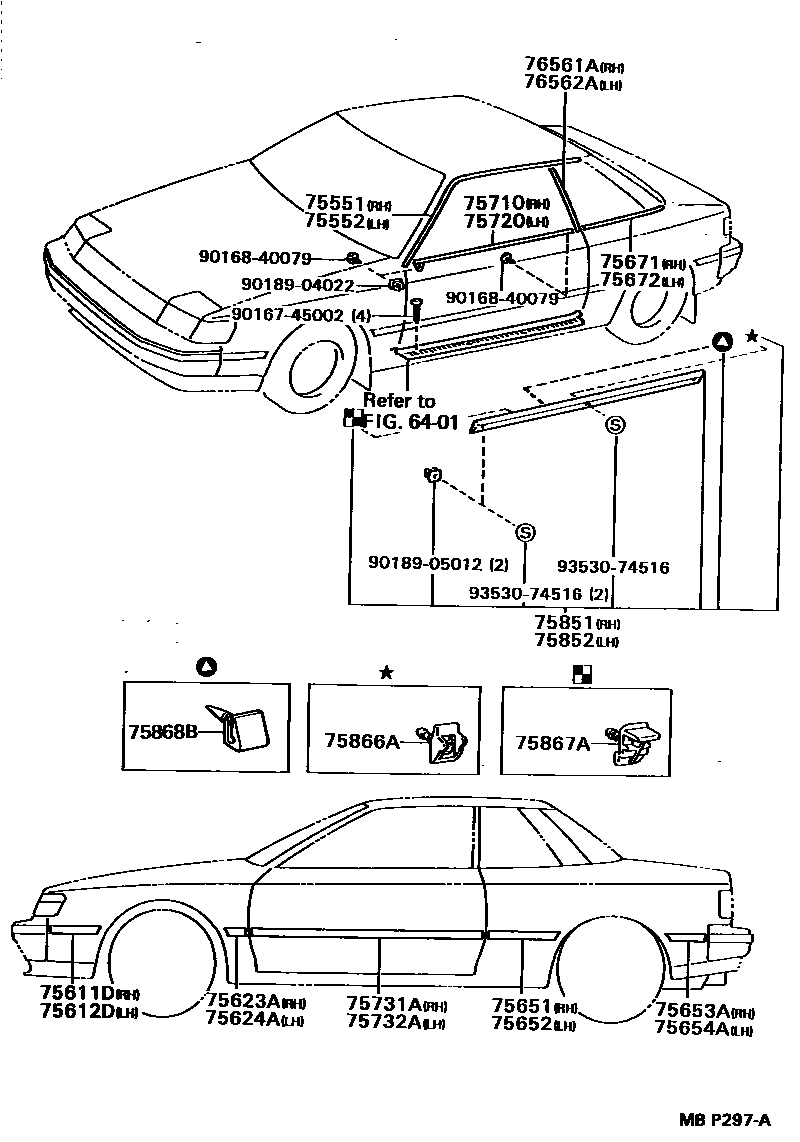

SIDE MOULDING

0001 1 0002 1 0003 1

6401

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-20260iST162..CP¥5,800198708-198908

main75551-20270iST162..LB¥5,400198708-198710

sub75551-20271¥5,600

main75551-20271iST16#..LB¥5,600198710-198908

main75551-20290iST162..CVT¥5,800198708-198908

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-20260iST162..CP¥5,800198708-198908

main75552-20270iST162..LB¥5,400198708-198710

sub75552-20271¥5,600

main75552-20271iST16#..LB¥5,600198710-198908

main75552-20290iST162..CVT¥5,800198708-198908

75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH

main75611-20210iST162¥1,800198708-198908

main75611-20430-01iST165198710-198908

BLACK,202

main75611-20430-02iST165198710-198908

SUPER RED 2,3E5

main75611-20430-03iST165198710-198908

GRAY-M,168

main75611-20430-04iST165198710-198908

BLUE MAICA,8E3

main75611-20430-08iST165198710-198908

SUPER WHITE 2,040

main75611-20490-02iST162..(CP,LB)..(GT,GTS)..USA198808-198908

SUPER RED 2,3E5

main75611-20490-04iST162..GTS..USA198808-198908

BLUE MICA,8E3

main75611-20490-08iST162..(CP,LB)..(GT,GTS)..USA198808-198908

SUPER WHITE 2,040

75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH

main75612-20180iST162¥1,800198708-198908

main75612-20400-01iST165198710-198908

BLACK,202

main75612-20400-02iST165198710-198908

SUPER RED 2,3E5

main75612-20400-03iST165198710-198908

GRAY-M,168

main75612-20400-04iST165198710-198908

BLUE MAICA,8E3

main75612-20400-08iST165198710-198908

SUPER WHITE 2,040

main75612-20460-02iST162..GTS..USA198808-198908

SUPER RED 2,3E5

main75612-20460-04iST162..(CP,LB)..(GT,GTS)..USA198808-198908

BLUE MICA,8E3

main75612-20460-08iST162..GTS..USA198808-198908

SUPER WHITE 2,040

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-20070iST162¥1,010198708-198908

main75623-20190-01iST165198710-198908

BLACK,202

main75623-20190-02iST165198710-198908

SUPER RED 2,3E5

main75623-20190-03iST165198710-198908

GRAY-M,168

main75623-20190-04iST165198710-198908

BLUE MAICA,8E3

main75623-20190-08iST165198710-198908

SUPER WHITE 2,040

main75623-20210-02iST162..(CP,LB)..(GT,GTS)..USA198808-198908

SUPER RED 2,3E5

main75623-20210-04iST162..GTS..USA198808-198908

BLUE MICA,8E3

main75623-20210-08iST162..(GT,GTS)..USA198808-198908

SUPER WHITE 2,040

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-20070iST162¥1,010198708-198908

main75624-20190-01iST165198710-198908

BLACK,202

main75624-20190-02iST165198710-198908

SUPER RED 2,3E5

main75624-20190-03iST165198710-198908

GRAY-M,168

main75624-20190-04iST165198710-198908

BLUE MAICA,8E3

main75624-20190-08iST165198710-198908

SUPER WHITE 2,040

main75624-20210-02iST162..(CP,LB)..(GT,GTS)..USA198808-198908

SUPER RED 2,3E5

main75624-20210-04iST162..(CP,LB)..(GT,GTS)..USA198808-198908

BLUE MICA,8E3

main75624-20210-08iST162..GTS..USA198808-198908

SUPER WHITE 2,040

75651MOULDING, QUARTER, OUTSIDE RH

main75651-20200iST162¥2,200198708-198908

main75651-20290-01iST165198710-198908

BLACK,202

main75651-20290-02iST165198710-198908

SUPER RED 2,3E5

main75651-20290-03iST165198710-198908

GRAY-M,168

main75651-20290-04iST165198710-198908

BLUE MAICA,8E3

main75651-20290-08iST165198710-198908

SUPER WHITE 2,040

main75651-20320-02iST162..GTS..USA198808-198908

SUPER RED 2,3E5

main75651-20320-04iST162..(CP,LB)..(GT,GTS)..USA198808-198908

BLUE MICA,8E3

main75651-20320-08iST162..GTS..USA198808-198908

SUPER WHITE 2,040

75652MOULDING, QUARTER, OUTSIDE LH

main75652-20190iST162¥2,200198708-198908

main75652-20260-01iST165198710-198908

BLACK,202

main75652-20260-02iST165198710-198908

SUPER RED 2,3E5

main75652-20260-03iST165198710-198908

GRAY-M,168

main75652-20260-04iST165198710-198908

BLUE MAICA,8E3

main75652-20260-08iST165198710-198908

SUPER WHITE 2,040

main75652-20280-02iST162..(CP,LB)..(GT,GTS)..USA198808-198908

SUPER RED 2,3E5

main75652-20280-04iST162..GTS..USA198808-198908

BLUE MICA,8E3

main75652-20280-08iST162..(CP,LB)..(GT,GTS)..USA198808-198908

SUPER WHITE 2,040

75653AMOULDING, QUARTER, OUTSIDE REAR RH

main75653-20140iST162..LB¥1,320198708-198908

main75653-20170iST162..CP,CVT¥1,600198708-198908

main75653-20220-02iST162..LB..GTS..USA198808-198908

SUPER RED 2,3E5

main75653-20220-04iST162..LB..GTS..USA198808-198908

BLUE MICA,8E3

main75653-20220-08iST162..LB..USA198808-198908

SUPER WHITE 2,040

main75653-20240-02iST162..(CP,CVT)..(GT,GTS)..USA198808-198908

SUPER RED 2,3E5

main75653-20240-04iST162..CP..(GT,GTS)..USA198808-198908

BLUE MICA,8E3

main75653-20240-08iST162..CP..(GT,GTS)..USA198808-198908

SUPER WHITE 2,040

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75654-20130iST162..LB¥1,320198708-198908

main75654-20160iST162..CP,CVT¥1,600198708-198908

main75654-20210-02iST162..LB..USA198808-198908

SUPER RED 2,3E5

main75654-20210-04iST162..LB..USA198808-198908

BLUE MICA,8E3

main75654-20210-08iST162..LB..USA198808-198908

SUPER WHITE 2,040

main75654-20230-02iST162..CP..(GT,GTS)..USA198808-198908

SUPER RED 2,3E5

main75654-20230-04iST162..CP..(GT,GTS)..USA198808-198908

BLUE MICA,8E3

main75654-20230-08iST162..CP..(GT,GTS)..USA198808-198908

SUPER WHITE 2,040

75671MOULDING, QUARTER BELT, RH

main75660-20030iST162..CVT¥4,710198708-198908

main75671-20030iST162..CP¥2,810198708-198908

main75671-20040iST16#..LB¥4,310198708-198908

75672MOULDING, QUARTER BELT, LH

main75670-20010iST162..CVT¥4,710198708-198908

main75672-20030iST162..CP¥2,810198708-198908

main75672-20040iST16#..LB¥4,310198708-198908

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-20280iST16#..CP,LB¥6,700198708-198908

main75710-20290iST162..CVT¥6,700198708-198908

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-20280iST16#..CP,LB¥6,700198708-198908

main75720-20290iST162..CVT¥6,700198708-198908

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-20220iST162¥7,500198708-198908

main75731-20430-01iST162..(CP,LB)..(GT,GTS)..USA198710-198908

BLACK,202

main75731-20430-02iST162..GTS..USA198710-198908

SUPER RED 2,3E5

main75731-20430-03iST165198710-198908

GRAY-M,168

main75731-20430-04iST165198710-198908

BLUE MAICA,8E3

main75731-20430-08iST162..GTS..USA198710-198908

SUPER WHITE 2,040

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-20220iST162¥7,500198708-198908

main75732-20430-01iST162..(CP,LB)..(GT,GTS)..USA198710-198908

BLACK,202

main75732-20430-02iST162..(CP,LB)..(GT,GTS)..USA198710-198908

SUPER RED 2,3E5

main75732-20430-03iST162..(CP,LB)..(GT,GTS)..USA198710-198908

GRAY-M,168

main75732-20430-04iST165198710-198908

BLUE MAICA,8E3

main75732-20430-08iST165198710-198908

SUPER WHITE 2,040

75851MOULDING, ROCKER PANEL, RH

main75850-20140iST162..CVT;ST162..GTS¥15,800198708-198908

main75850-29175iST162..(CP,LB)..(GT,ST)¥8,000198708-198908

75852MOULDING, ROCKER PANEL, LH

main75850-29175iST162..(CP,LB)..(GT,ST)¥8,000198708-198908

main75860-20100iST162..CVT;ST162..GTS¥15,800198708-198908

75866ARETAINER, ROCKER PANEL MOULDING

main75866-20020iST162..(CP,LB)..(GT,ST)¥310198708-198908

75867ACLIP, ROCKER PANEL MOULDING

main75867-20050iST162..(CP,LB)..(GT,ST)¥310198708-198908

main75867-20060iST162..CVT;ST162..GTS¥240198708-198908

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75868-20010iST162..CVT;ST162..GTS¥240198708-198908

76561AMOULDING, CENTER PILLAR, RH

main76561-20010iST16#..CP,LB¥1,590198708-198908

76562AMOULDING, CENTER PILLAR, LH

main76562-20010iST16#..CP,LB¥1,590198708-198908

9016745002

main90167-45002¥130

9016840079

main90168-40079¥120

9018904022

main90189-04022¥70

9018905012

main90189-05012¥220

9353074516

main93530-74516¥130

29 parts on this diagram · 3 diagrams in section
