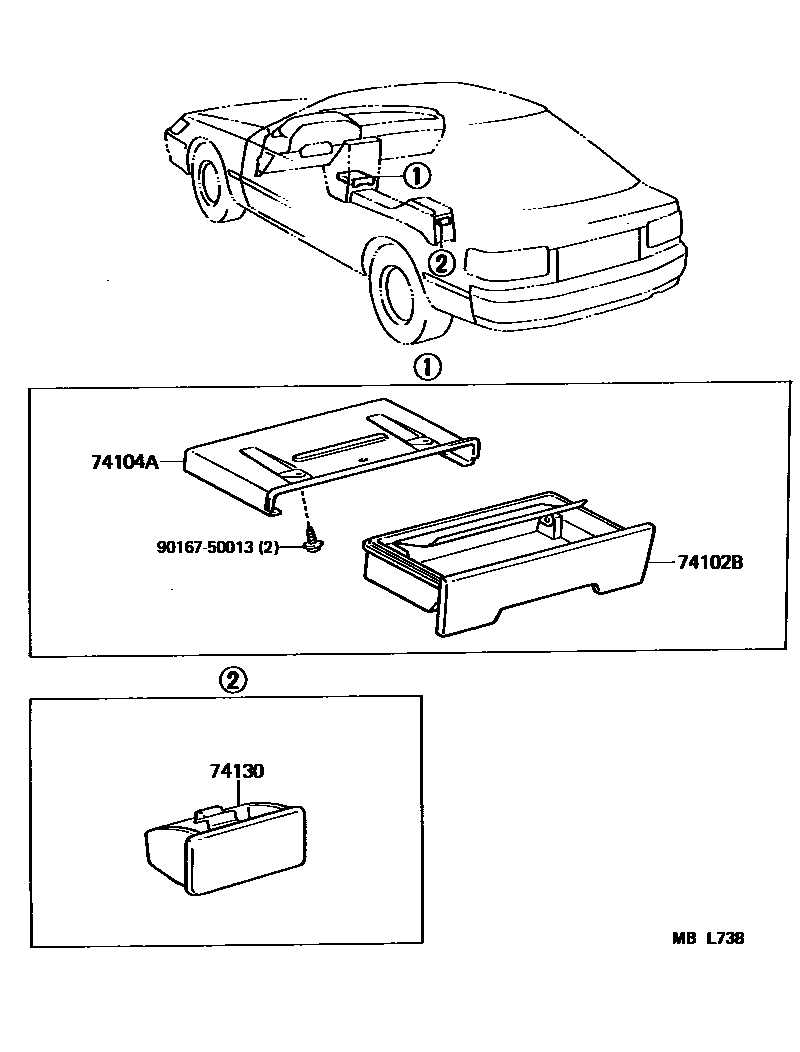

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-20120-01iST162..ST198708-198908

BLACK,TRIM2#

sub74102-20130

main74102-20120-02iST162..ST198708-198908

RED,TRIM3#

sub74102-20130

main74102-20120-04iST162..ST198708-198908

DEEP BLUE,TRIM8#

sub74102-20130

main74102-20120-05iST162..ST198708-198908

DARK BEIGE,TRIM4#

sub74102-20130

main74102-20130-01iST16#..GT,GTS,TBO4W,TBOAT198708-198908

BLACK,TRIM2#

sub74102-20130

main74102-20130-02iST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)198708-198908

RED,TRIM3#

sub74102-20130

main74102-20130-04iST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)198708-198908

DEEP BLUE,TRIM8#

sub74102-20130

main74102-20130-05iST162..(CP,LB)..(GT,GTS)198708-198908

DARK BEIGE,TRIM4#

sub74102-20130

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-20170iST16#198708-198908

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-01iST16#198708-198908

BLACK,TRIM2#

sub74109-20080

sub74109-32010

main74109-32010-05iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-12iST16#..CP,LB198708-198908

RED,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-14iST16#..CP,LB198708-198908

BLUE,TRIM8#

sub74109-20080

sub74109-32010

9016750013

main90167-50013

4 parts on this diagram · 1 diagram in section
