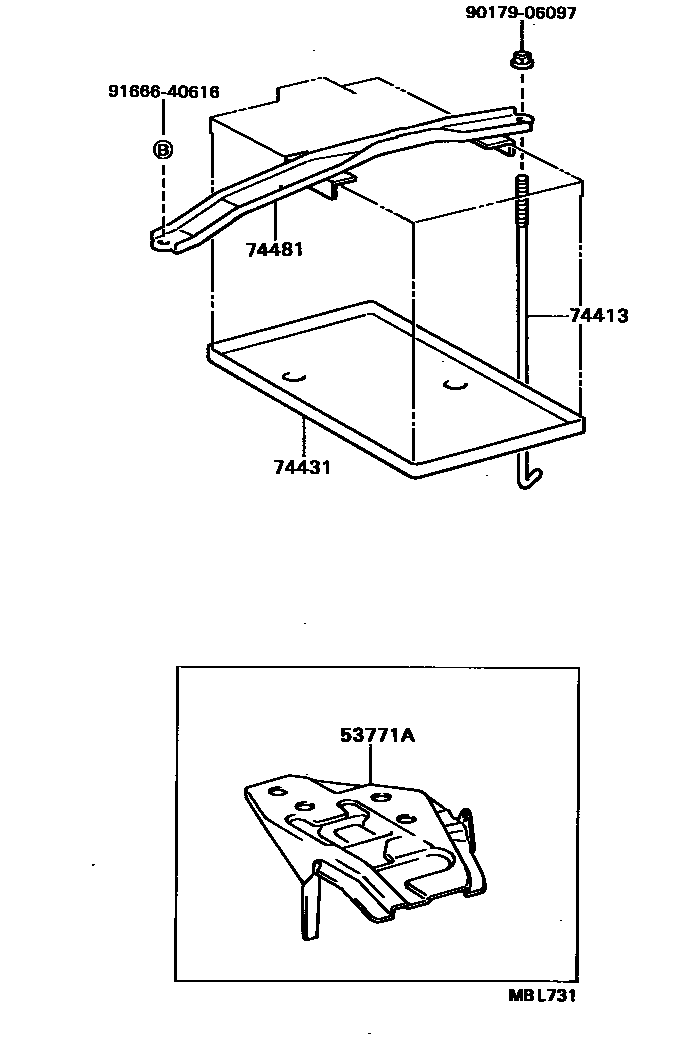

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-20030iST16#198708-198908

74413BOLT, BATTERY CLAMP

main74451-14010iST162..GTS198708-198908

main74451-30060iST16#..GT,ST,TBO4W,TBOAT198708-198908

W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

74431TRAY, BATTERY

main74431-14020iST162..GTS..USA198708-198908

W(BATTERY=32C24L)

main74431-14030iST16#198708-198908

sub74431-52040

74481CLAMP, BATTERY HOLD DOWN

main74404-20170iST162..GTS..USA198708-198908

W(BATTERY=32C24L)

main74404-20180iST162..GTS198708-198908

main74404-20220iST16#..GT,ST,TBO4W,TBOAT198708-198908

sub74404-20221

main74404-20230iST162..(CP,LB)..(GT,ST)..USA198708-198908

W(BATTERY=32C24L)

main74404-20240iST162..GTS198708-198908

W(ANTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

9017906097

main90179-06097

9166640616

main91666-40616

6 parts on this diagram · 1 diagram in section
