ARMREST & VISOR

74223CAP, DOOR ARMREST, RH

main74223-20030-01iST162198708-198908

BLACK,TRIM2#

main74223-20030-02iST162..CP,LB198708-198908

RED,TRIM3#

main74223-20030-04iST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

main74223-20030-05iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

74224CAP, DOOR ARMREST, LH

main74224-20030-01iST162198708-198908

BLACK,TRIM2#

main74224-20030-02iST162..CP,LB198708-198908

RED,TRIM3#

main74224-20030-04iST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

main74224-20030-05iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

74225CAP, DOOR ARMREST, REAR RH

main74225-20020-01iST162198708-198908

BLACK,TRIM2#

main74225-20020-02iST162..CP,LB198708-198908

RED,TRIM3#

main74225-20020-04iST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

main74225-20020-05iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

74226CAP, DOOR ARMREST, REAR LH

main74225-20020-01iST162198708-198908

BLACK,TRIM2#

main74225-20020-02iST162..CP,LB198708-198908

RED,TRIM3#

main74225-20020-04iST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

main74225-20020-05iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20151-01iST165198708-198908

BLACK,TRIM2#

main74231-20151-02iST165198708-198908

RED,TRIM3#

main74231-20151-04iST165198708-198908

DEEP BLUE,TRIM8#

main74231-20151-05iST162..GTS198708-198908

DARK BEIGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20151-01iST165198708-198908

BLACK,TRIM2#

main74232-20151-02iST165198708-198908

RED,TRIM3#

main74232-20151-04iST165198708-198908

DEEP BLUE,TRIM8#

main74232-20151-05iST162..GTS198708-198908

DARK BEIGE,TRIM4#

main74232-20161-01iST162..CVT198710-198908

BLACK,TRIM2#

74266ACAP, DOOR ARMREST, NO.1

main74266-20060-01×2iST165198708-198908

BLACK,TRIM2#

main74266-20060-02×2iST165198708-198908

RED,TRIM3#

main74266-20060-04×2iST165198708-198908

DEEP BLUE,TRIM8#

main74266-20060-05×2iST162..GTS198708-198908

DARK BEIGE,TRIM4#

74267ACAP, DOOR ARMREST, NO.2

main74267-20040-01×2iST165198708-198908

BLACK,TRIM2#

main74267-20040-02×2iST165198708-198908

RED,TRIM3#

main74267-20040-04×2iST165198708-198908

DEEP BLUE,TRIM8#

main74267-20040-05×2iST162..GTS198708-198908

DARK BEIGE,TRIM4#

74310VISOR ASSY, RH

main74310-20290-02iST162..ST198708-198908

RED,TRIM3#

sub74310-20300

main74310-20290-03iST162..ST198708-198908

SHADOW GRAY,TRIM2#

sub74310-20300

main74310-20290-04iST162..ST198708-198908

DEEP BLUE,TRIM8#

sub74310-20300

main74310-20290-05iST162..ST198708-198908

DARK BEIGE,TRIM4#

sub74310-20300

main74310-20532-01iST162..CVT198710-198908

BLACK,TRIM2#

main74310-20610-02iST16#..GTS,TBO4W,TBOAT198708-198908

RED,TRIM3#

main74310-20610-03iST16#..GTS,TBO4W,TBOAT198708-198908

GRAY,TRIM2#

main74310-20610-04iST16#..GTS,TBO4W,TBOAT198708-198908

DEEP BLUE,TRIM8#

main74310-20610-05iST162..GTS198708-198908

DARK BEIGE,TRIM4#

main74310-20620-02iST162..(CP,LB)..GT198808-198908

RED,TRIM3#

main74310-20620-03iST162..LB..GT198708-198808

GRAY,TRIM2#

main74310-20620-04iST162..LB..GT198708-198808

DEEP BLUE,TRIM8#

main74310-20620-05iST162..LB..GT198708-198808

DARK BEIGE,TRIM4#

74320VISOR ASSY, LH

main74320-20400-02iST162..ST198708-198908

RED,TRIM3#

main74320-20400-03iST162..ST198708-198908

SHADOW GRAY,TRIM2#

main74320-20400-04iST162..ST198708-198908

DEEP BLUE,TRIM8#

main74320-20400-05iST162..ST198708-198908

DARK BEIGE,TRIM4#

main74320-20492-01iST162..CVT198710-198908

BLACK,TRIM2#

main74320-20580-02iST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)198708-198908

RED,TRIM3#

main74320-20580-03iST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)198708-198908

GRAY,TRIM2#

main74320-20580-04iST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)198708-198908

DEEP BLUE,TRIM8#

main74320-20580-05iST162..(CP,LB)..(GT,GTS)198708-198908

DARK BEIGE,TRIM4#

74348HOLDER, VISOR

main74348-12020-01×2iST162..CVT198811-198908

BLACK,TRIM2#

sub74348-60010

sub74348-26020

main74348-12020-03×2iST16#..CP,LB198811-198908

LIGHT GRAY,TRIM2#

sub74348-60010

sub74348-26020

main74348-12020-04×2iST16#..CP,LB198811-198908

LIGHT BLUE,TRIM8#

sub74348-60010

sub74348-26020

main74348-12020-22×2iST16#..CP,LB198811-198908

RED,TRIM3#

sub74348-60010

sub74348-26020

main74348-12020-25×2iST162..CP,LB198811-198908

DARK BEIGE,TRIM4#

sub74348-60010

sub74348-26020

main74348-20020-01×2iST162..CVT198708-198811

BLACK,TRIM2#

main74348-20020-02×2iST16#..CP,LB198708-198811

RED,TRIM3#

main74348-20020-03×2iST16#..CP,LB198708-198811

SHADOW GRAY,TRIM2#

main74348-20020-04×2iST16#..CP,LB198708-198811

DEEP BLUE,TRIM8#

main74348-20020-05×2iST162..CP,LB198708-198808

DARK BEIGE,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-10020-02×2iST16#..CP,LB198708-198908

RED,TRIM3#,RR

main74610-10020-14×2iST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#,RR

main74610-10020-20×2iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#,RR

main74610-10020-33×2iST16#..CP,LB198708-198908

SHADOW GRAY,TRIM2#,RR

main74610-14030-22iST16#..CP,LB198708-198908

RED,TRIM3#,FR

sub74610-12050

main74610-14030-24iST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#,FR

sub74610-12050

main74610-14030-33iST16#..CP,LB198708-198908

SHADOW GRAY,TRIM2#,FR

sub74610-12050

main74610-14030-45iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#,FR

sub74610-12050

74617APLUG, ASSIST GRIP

main74617-14010-10×4iST16#..CP,LB198708-198908

SHADOW GRAY,TRIM2#

main74617-14010-12×4iST16#..CP,LB198708-198908

RED,TRIM3#

main74617-14010-30×4iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

main74617-14010-34×4iST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20010-01iST162198708-198908

BLACK,TRIM2#

main74630-20010-02iST162..CP,LB198708-198908

RED,TRIM3#

main74630-20010-04iST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

main74630-20010-05iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

main74630-20021-01iST165198708-198908

BLACK,TRIM2#

main74630-20021-02iST165198708-198908

W(POWER WINDOW),RED,TRIM3#

main74630-20021-04iST165198708-198908

DEEP BLUE,TRIM8#

main74630-20021-05iST162..GTS198708-198908

W(POWER WINDOW),DARK BEIGE,TRIM4#

74631BHOOK, COAT

main74631-14010-02iST16#..CP,LB198708-198908

RED,TRIM3#

sub74631-20040

main74631-14010-10iST16#..CP,LB198708-198908

SHADOW GRAY,TRIM2#

sub74631-20040

main74631-14010-34iST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub74631-20040

main74631-14010-45iST162..CP,LB198708-198908

LIGHT BEIGE,TRIM4#

sub74631-20040

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20010-01iST162198708-198908

BLACK,TRIM2#

main74640-20010-02iST162..CP,LB198708-198908

RED,TRIM3#

main74640-20010-04iST162..CP,LB198708-198908

DEEP BLUE,TRIM8#

main74640-20010-05iST162..CP,LB198708-198908

DARK BEIGE,TRIM4#

main74640-20021-01iST165198708-198908

BLACK,TRIM2#

main74640-20021-02iST165198708-198908

MAROON,TRIM3#

main74640-20021-04iST165198708-198908

DEEP BLUE,TRIM8#

main74640-20021-05iST162..GTS198708-198908

W(POWER WINDOW),DARK BEIGE,TRIM4#

9015960016

main90159-60016

9015960188

main90159-60188

9016460014

main90164-60014

9016840076

main90168-40076

9018906024

main90189-06024

9018906075

main90189-06075

9353045020

main93530-45020

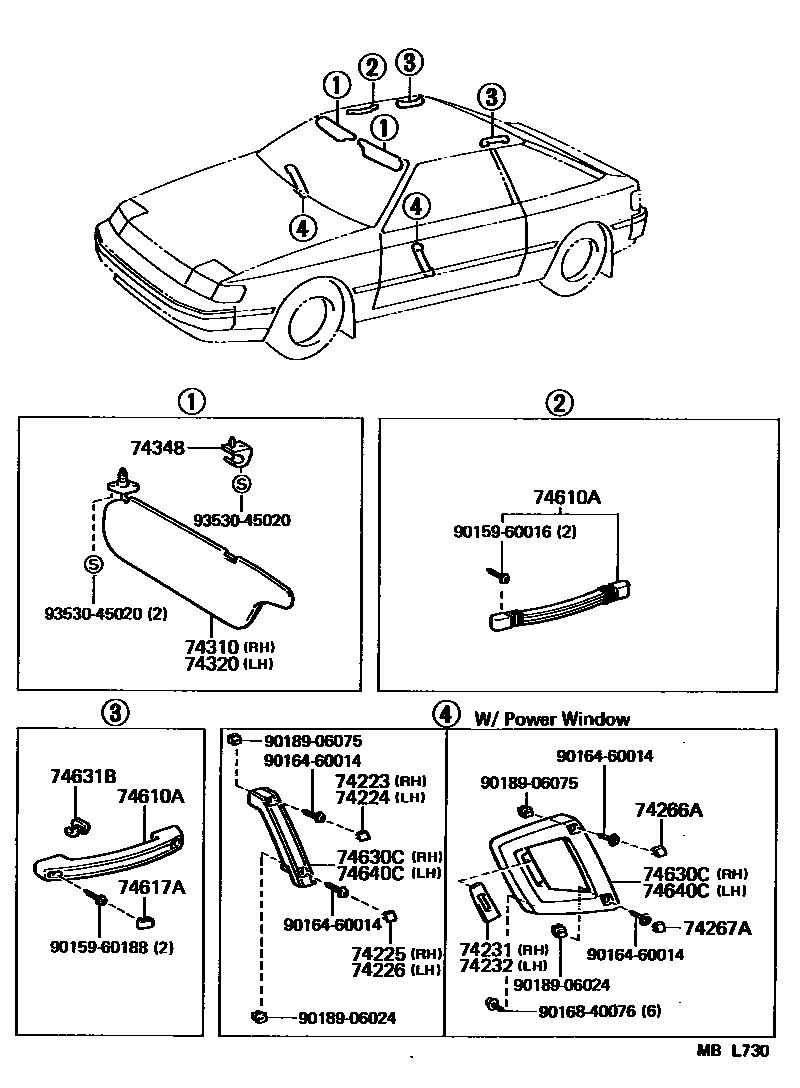

23 parts on this diagram · 1 diagram in section
