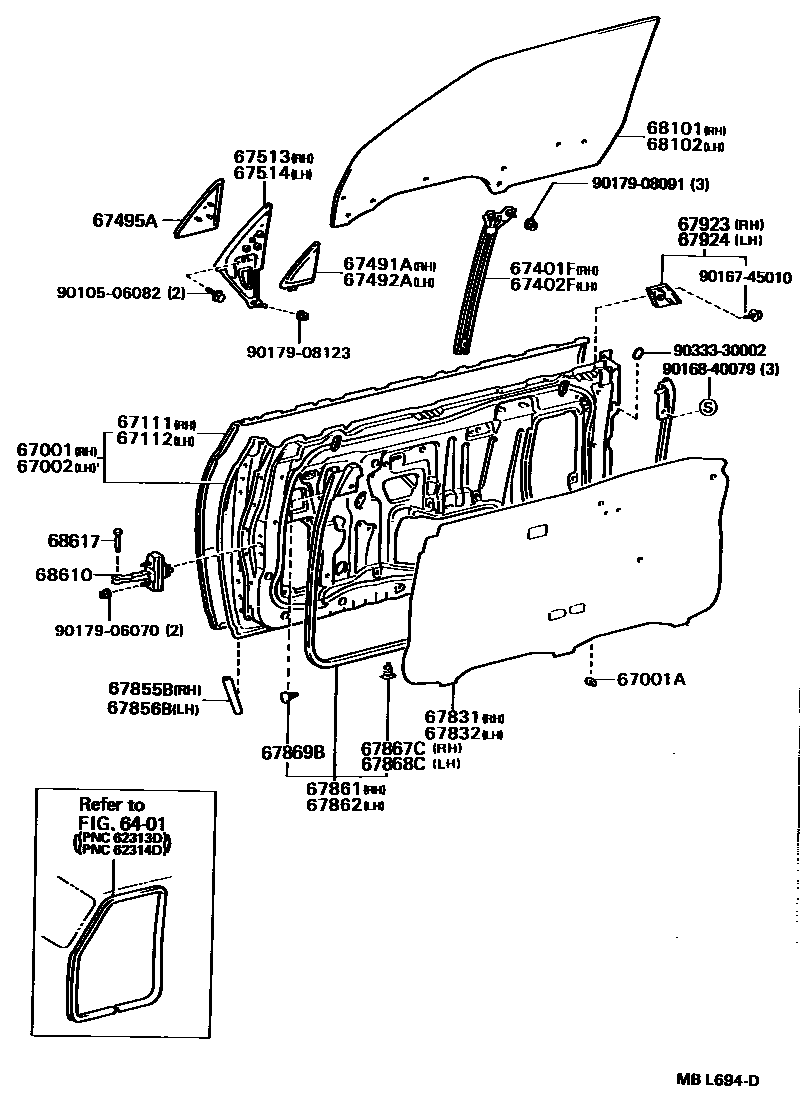

FRONT DOOR PANEL & GLASS
6401
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67513BRACKET, FRONT DOOR MIRROR, RH
67514BRACKET, FRONT DOOR MIRROR, LH
sub67514-20051
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
9010506082
main90105-06082
9016745010
main90167-45010
9016840079
main90168-40079
9017906070
main90179-06070
9017908091
main90179-08091
9017908123
main90179-08123
9033330002
main90333-30002
35 parts on this diagram · 2 diagrams in section
