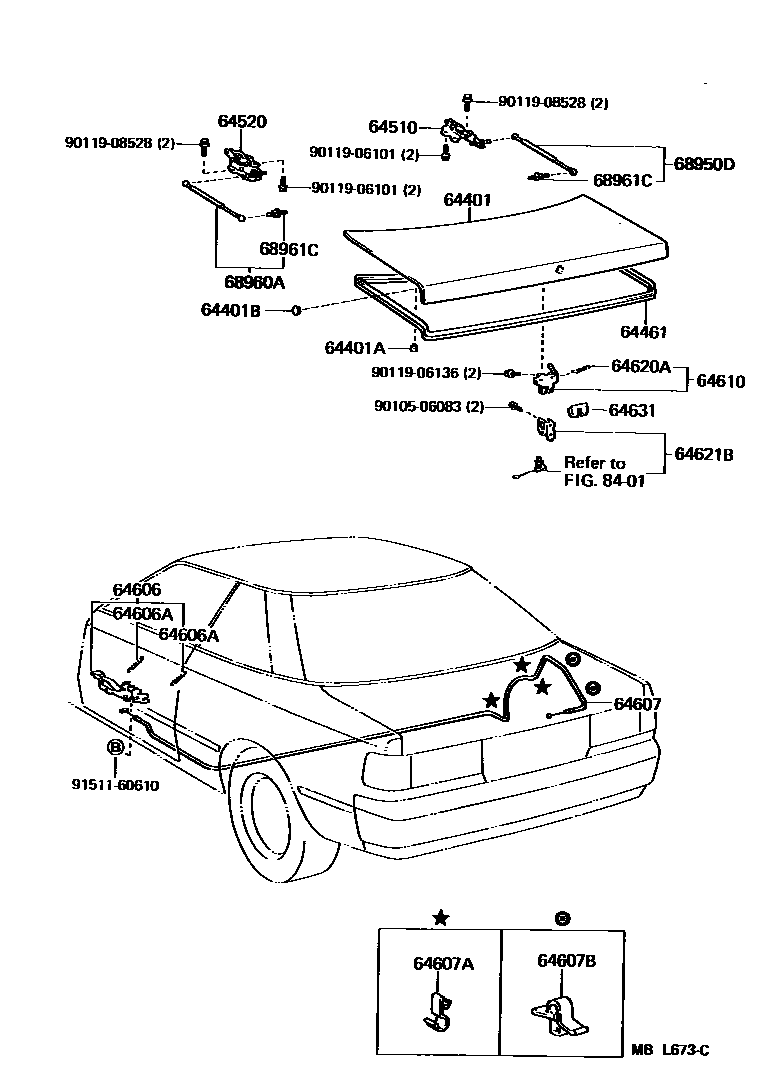

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B070iST162..CP..GTS198708-198908

W(REAR SPOILER)

main64401-2B220iST162..CP..(GT,ST)198708-198908

main64401-2B240iST162..CVT198708-198908

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09043iST162..CP,CVT198708-198908

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01150iST162..CP,CVT198708-198908

sub90950-01882

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20230iST162..CP,CVT198708-198908

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20120iST162..CP,CVT198708-198808

sub64510-20121

main64510-20121iST162..CP,CVT198808-198908

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20110iST162..CP,CVT198708-198808

sub64520-20111

main64520-20111iST162..CP,CVT198808-198908

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20060iST162..CP,CVT198708-198908

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iST162..CP,CVT198708-198908

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20200iST162..CP,CVT198708-198908

sub64607-12230

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iST162..CP,CVT198708-198908

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01209iST162..CP,CVT198708-198908

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20090iST162..CP198708-198908

main64610-20100iST162..CVT198708-198908

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iST162..CP,CVT198708-198908

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20040iST162..CP..(GT,GTS)198708-198908

main64621-20050iST162..ST198708-198908

main64621-20070iST162..CVT198708-198908

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iST162..CP,CVT198708-198908

68950DSTAY ASSY, LUGGAGE DOOR, RH

main68950-29415iST162..(CP,CVT)..(GT,ST)198708-198908

main68950-29425iST162..CP..GT..USA198708-198908

W(REAR SPOILER)

main68950-29425iST162..CP..GTS198708-198908

68960ASTAY ASSY, LUGGAGE DOOR, LH

main68950-29415iST162..(CP,CVT)..(GT,ST)198708-198908

main68950-29425iST162..CP..GT..USA198708-198908

W(REAR SPOILER)

main68950-29425iST162..CP..GTS198708-198908

68961CBOLT, LUGGAGE DOOR STAY

main68961-20051iST162..CP,CVT198708-198908

8401

9010506083

main90105-06083

9011906101

main90119-06101

9011906136

main90119-06136

9011908528

main90119-08528

9151160610

main91511-60610

24 parts on this diagram · 1 diagram in section
