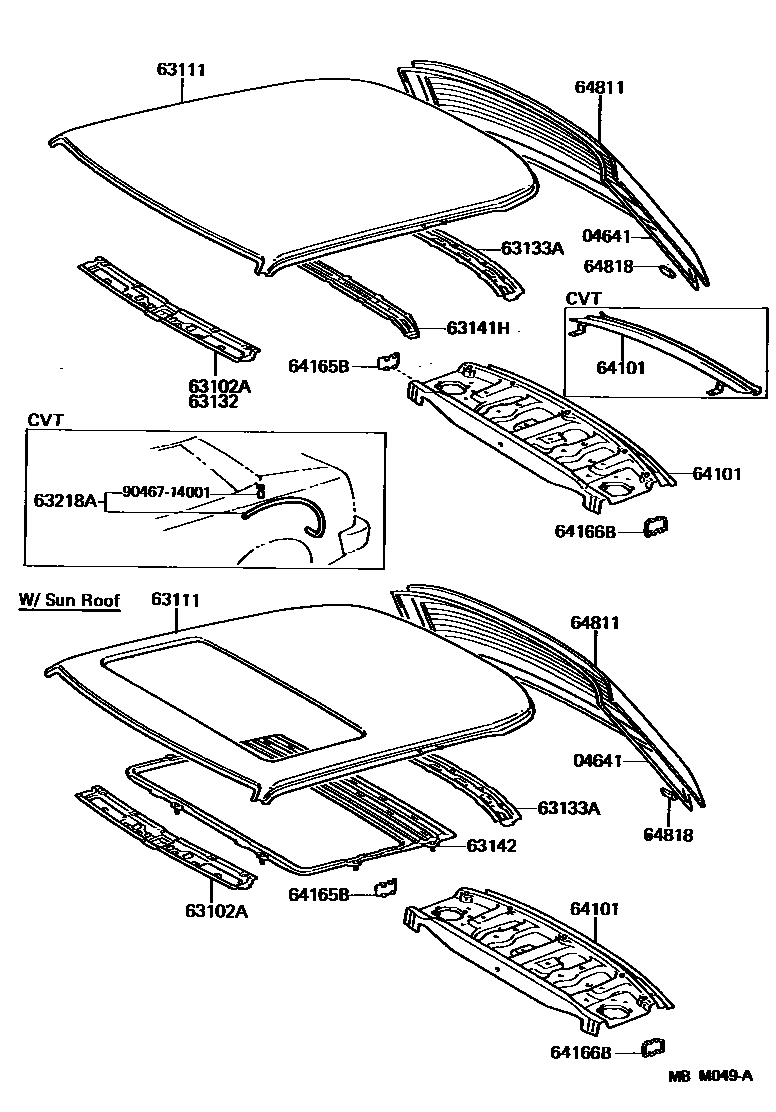

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iST162..CP198708-198908

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20090iST16#..CP,LB198708-198908

63111PANEL, ROOF

main63111-20220iST162..CP,CVT198708-198908

main63111-20230iST162..CP198708-198908

W(SUN ROOF)

main63111-20240iST16#..LB198708-198908

main63111-20250iST16#..LB198708-198908

W(SUN ROOF)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-20110iST162..CVT198708-198908

63133AFRAME, BACK WINDOW, UPPER

main63133-20120iST162..CP,CVT198708-198908

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20060iST16#198708-198908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20040iST16#..CP,LB198708-198908

63218AHOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)

main63249-20060iST162..CP198708-198908

RR RH

main63249-20070iST16#..LB198708-198908

RR RH

main63249-20080iST16#..CP,LB198708-198908

FR

sub63249-16190

main63249-20090iST162..CP198708-198908

RR LH

main63249-20100iST16#..LB198708-198908

RR LH

main63249-20140iST162..CVT198708-198908

64101PANEL SUB-ASSY, UPPER BACK

main64101-20230iST162..ST198708-198908

main64101-20250iST162..CP..(GT,GTS)198708-198908

main64101-20280iST162..CVT198708-198908

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20030iST162..CP198708-198908

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-20020iST162..CP198708-198908

64811GLASS, BACK WINDOW

main64801-20110iST162..CP..USA198708-198908

*EHTT,T=4.0

main64801-20120iST162..CP..CND198708-198908

*EHTT,T=4.0

main64801-20120iST162..CP..CND198708-198908

*EHTT,T=4.0,COLD SPEC

64818SPACER, BACK WINDOW GLASS

main64818-30050iST162..CP198708-198908

9046714001

main90467-14001

14 parts on this diagram · 3 diagrams in section
