SIDE MEMBER
58741BPROTECTOR, QUARTER PANEL, RH
FR
RR,L=280
58742BPROTECTOR, QUARTER PANEL, LH
RR,L=280
FR
58743APROTECTOR, REAR WHEEL EXTENSION, NO.2 RH
58744APROTECTOR, REAR WHEEL EXTENSION, NO.2 LH
58792BSUPPORT, JACK CARRIER
sub58792-20040
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61123PANEL, COWL SIDE LOWER, RH
61124PANEL, COWL SIDE LOWER, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61317BRETAINER, DOOR LOCK
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH
61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH
61365AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, NO.3
sub61365-20020
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
W(REAR SPOILER)
W(REAR SPOILER)
W(REAR SPOILER)
W(REAR SPOILER)
61612PANEL, QUARTER, LH
W(REAR SPOILER)
W(REAR SPOILER)
W(REAR SPOILER)
W(REAR SPOILER)
61613BPANEL, QUARTER, INNER FRONT RH
61614BPANEL, QUARTER, INNER FRONT LH
61617BPANEL, QUARTER INNER, LOWER RH
61618BPANEL, QUARTER, INNER LOWER LH
61623EEXTENSION, QUARTER INNER PANEL, REAR RH
61624EEXTENSION, QUARTER INNER PANEL, REAR LH
61625DEXTENSION, QUARTER PANEL, UPPER FRONT RH
61626DEXTENSION, QUARTER PANEL, UPPER FRONT LH
61627CREINFORCEMENT, QUARTER INNER PANEL, RH
61628CREINFORCEMENT, QUARTER INNER PANEL, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61675CREINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR RH
61676CREINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR LH
61677REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH
61678REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61718AREINFORCEMENT, QUARTER PANEL EXTENSION, LH
61735APANEL, ROOF SIDE, INNER REAR RH
61735BEXTENSION, QUARTER PANEL, INNER RH
61736APANEL, ROOF SIDE, INNER REAR LH
61736BEXTENSION, QUARTER PANEL, INNER LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61755ARETAINER, DECK SIDE TRIM, UPPER RH
61756ARETAINER, DECK SIDE TRIM, UPPER LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
62612APAD, QUARTER WHEEL HOUSE, NO.2
62615APAD, QUARTER WHEEL HOUSE, NO.3
64118AREINFORCEMENT, UPPER BACK, NO.4 RH
64119AREINFORCEMENT, UPPER BACK, NO.4 LH
64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH
64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH
64135AREINFORCEMENT, BACK CORNER, OUTER RH
64136AREINFORCEMENT, BACK CORNER, OUTER LH
66243CPROTECTOR, REAR BODY, NO.1
67812APAD, QUARTER PANEL SILENCER
9011906101
main90119-06101
9033315002
main90333-15002
9033330002
main90333-30002
9095001006
main90950-01006
9095001025
main90950-01025
9095001248
main90950-01248
9095001266
main90950-01266
9095001353
main90950-01353

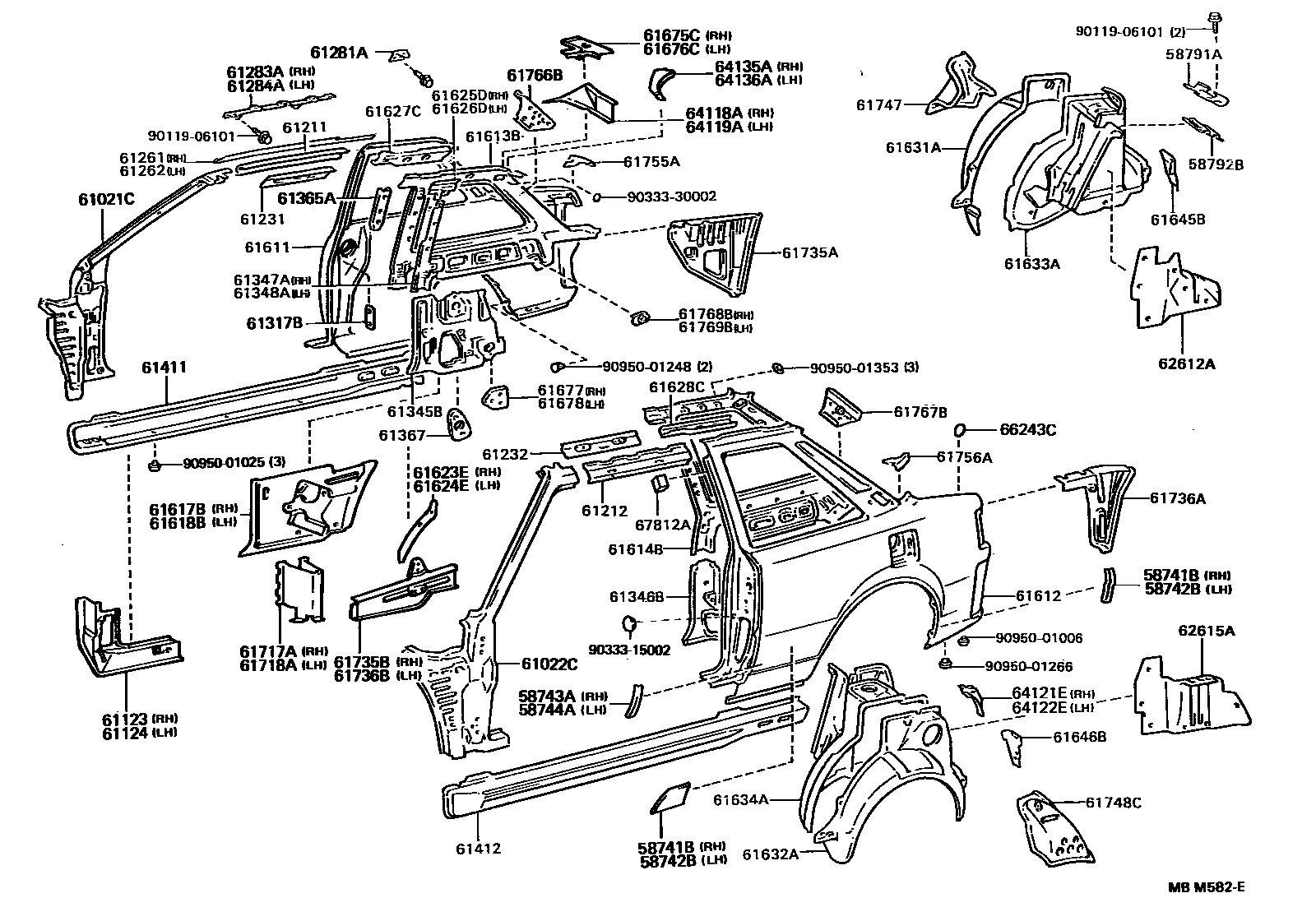

82 parts on this diagram · 2 diagrams in section
