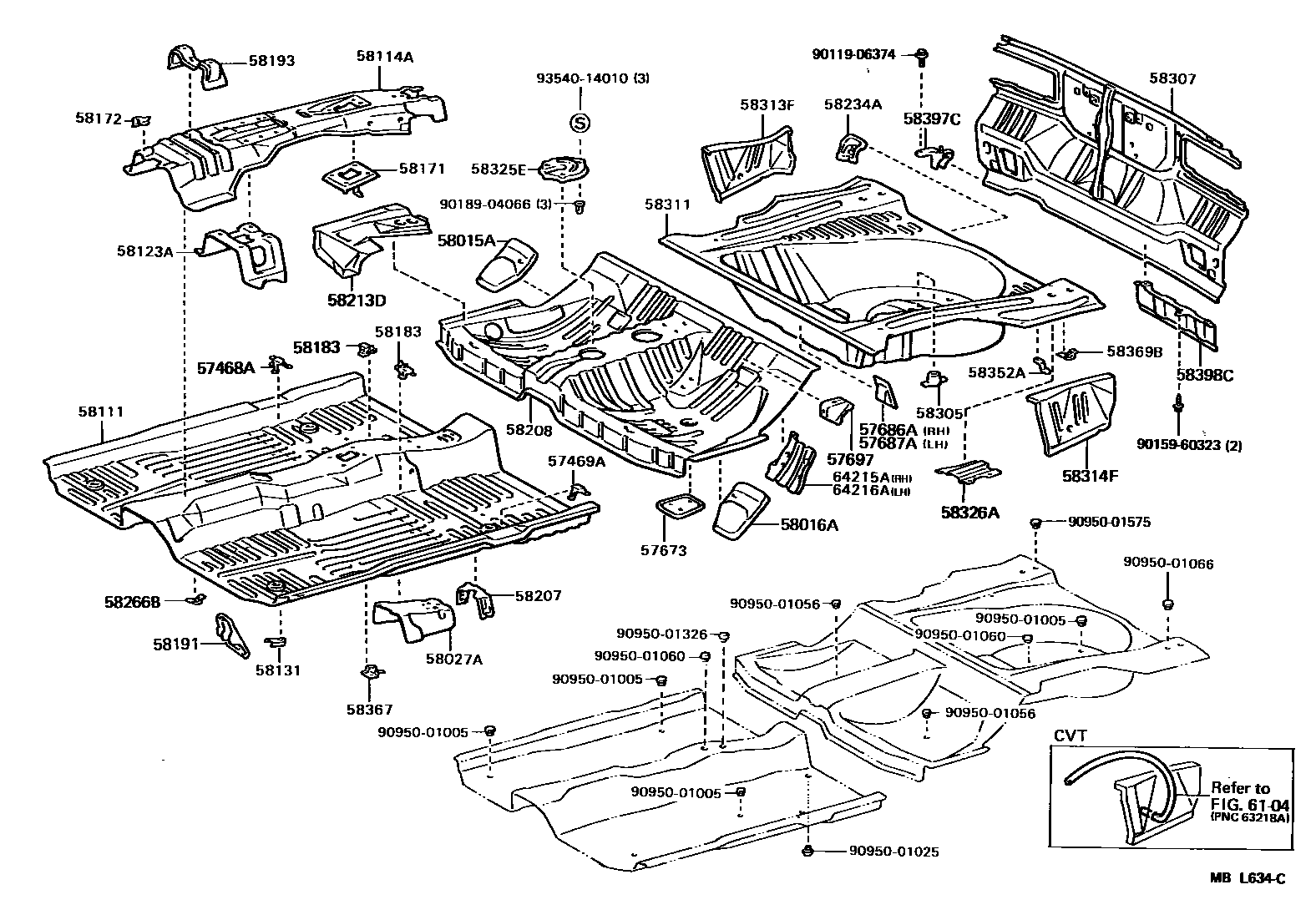

FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
57697RETAINER, REAR SEAT CUSHION
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58213DREINFORCEMENT, CENTER FLOOR PANEL
RH
LH
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58266BBRACKET, FUEL TUBE CLAMP
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58326ABRACE, REAR FLOOR PANEL, REAR
58352ABRACKET, REAR FLOOR STAY
58367BRACKET, FUEL TUBE CLAMP
58369BBRACKET, FUEL TUBE, NO.3
58397CCOVER, BODY LOWER BACK, RH
58398CCOVER, BODY LOWER BACK, LH
6104
64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
9011906374
9015960323
9018904066
9095001005
9095001025
9095001056
9095001060
9095001066
9095001326
9095001575
9354014010
49 parts on this diagram · 3 diagrams in section
