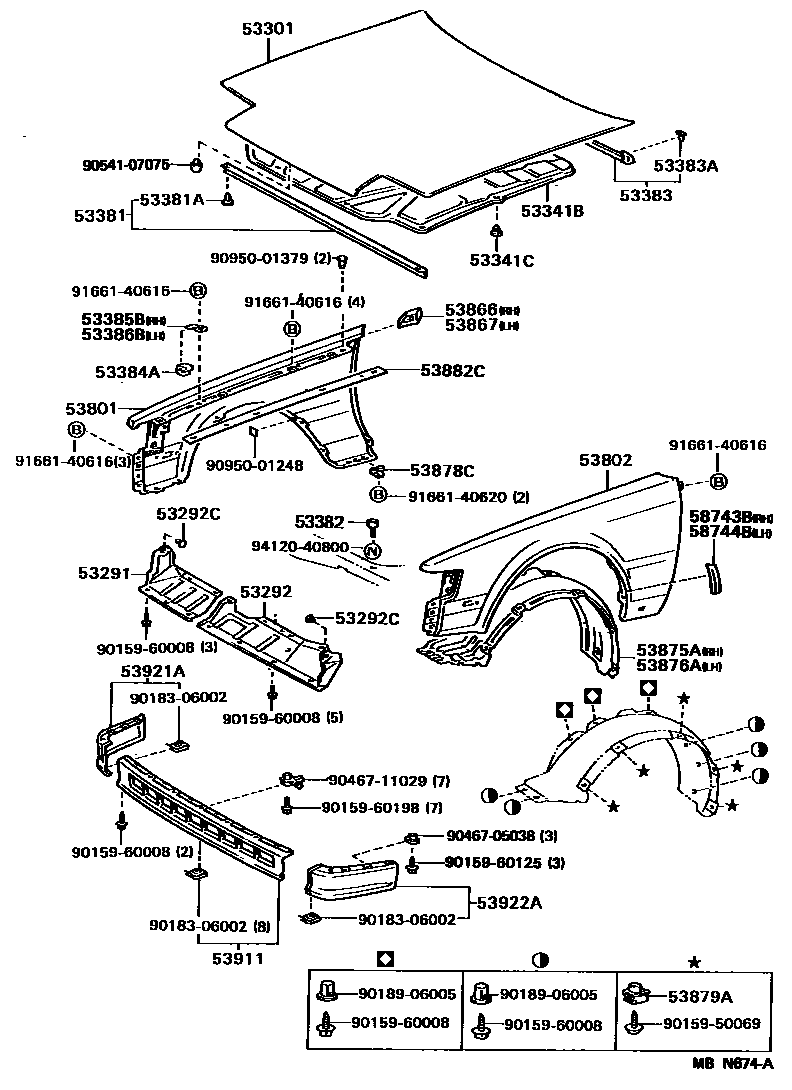

HOOD & FRONT FENDER
53291SEAL, RADIATOR SUPPORT TO FRAME, RH
53292SEAL, RADIATOR SUPPORT TO FRAME, LH
53292CCLIP, RADIATOR SUPPORT TO FRAME
BLACK,040 ,168 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
BLACK,TRIM2#,3#,8#
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382BUMPER, HOOD, FRONT
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
53882CSEAL, FRONT FENDER MAIN
53911PANEL, FRONT VALANCE
53921APANEL, FRONT VALANCE, RH
53922APANEL, FRONT VALANCE, LH
58743BPROTECTER, FRONT FENDER PANEL, RH
58744BPROTECTER, FRONT FENDER PANEL, LH
9015950069
9015960008
9015960125
9015960198
9018306002
9018906005
9046705038
9046711029
9054107075
9095001248
9095001379
9166140616
9166140620
9412040800
42 parts on this diagram · 2 diagrams in section
