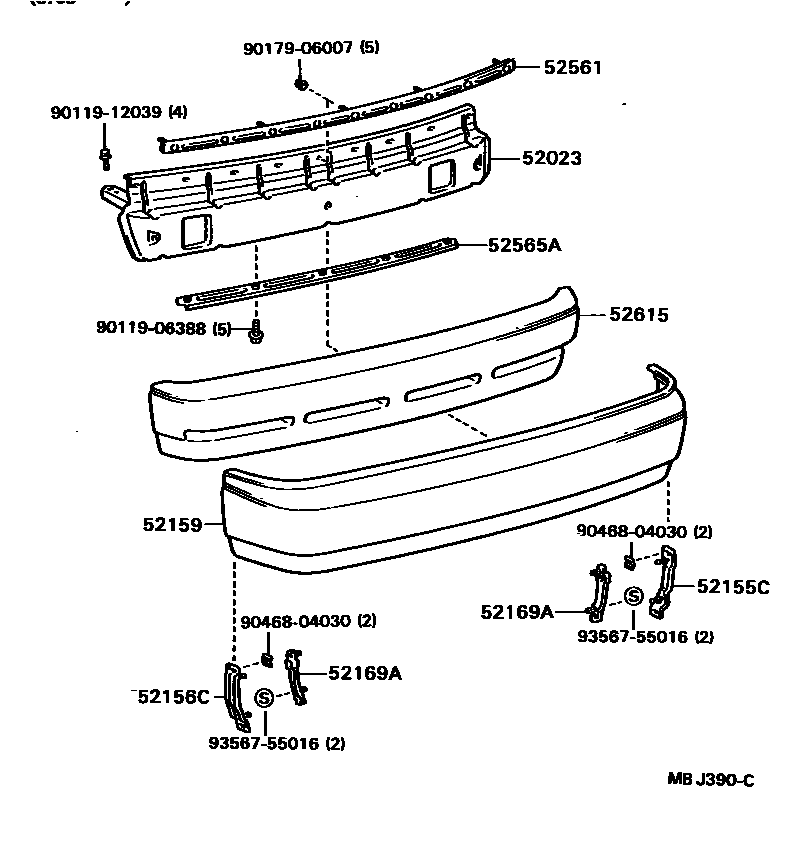

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20160iST162..CP,CVT¥34,600198708-198908

main52023-20170iST162..CVT¥39,200198901-198902

W(COLORED MOULDING)

main52023-20170iST162..LB¥39,200198708-198908

main52023-20261iST165¥30,400198710-198908

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20130iST162..CP,CVT¥890198708-198908

main52155-20140iST162..CVT¥890198901-198902

W(COLORED MOULDING)

main52155-20140iST162..LB¥890198708-198908

main52155-20170iST165¥1,590198710-198908

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-20130iST162..CP,CVT¥890198708-198908

main52155-20140iST162..CVT¥890198901-198902

W(COLORED MOULDING)

main52155-20140iST162..LB¥890198708-198908

52159COVER, REAR BUMPER

main52159-20908iST162..LB¥34,200198708-198908

main52159-20909iST162..CP,CVT¥34,200198708-198908

main52159-20915iST165¥45,600198710-198908

52169ASUPPORT, REAR BUMPER SIDE, NO.3

main52169-20030iST16#¥1,180198708-198908

52561RETAINER, REAR BUMPER, UPPER CENTER

main52521-20070iST162..CVT¥3,690198901-198902

W(COLORED MOULDING)

main52521-20070iST16#..LB¥3,690198708-198908

main52561-20090iST162..CP,CVT¥2,510198708-198908

52565ARETAINER, REAR BUMPER, LOWER

main52565-20060iST162..CP,CVT¥2,890198708-198908

main52565-20080iST162..LB¥3,250198708-198908

main52565-20080iST162..CVT¥3,250198901-198902

W(COLORED MOULDING)

52615ABSORBER, REAR BUMPER ENERGY

main52615-20070iST162..CP,CVT¥14,500198708-198908

main52615-20080iST162..CVT¥14,500198901-198902

W(COLORED MOULDING)

main52615-20080iST162..LB¥14,500198708-198908

main52615-20120iST165¥14,500198710-198908

9011906388

main90119-06388¥120

9011912039

main90119-12039¥310

9017906007

main90179-06007¥80

9046804030

main90468-04030¥140

9356755016

main93567-55016¥110

13 parts on this diagram · 3 diagrams in section
