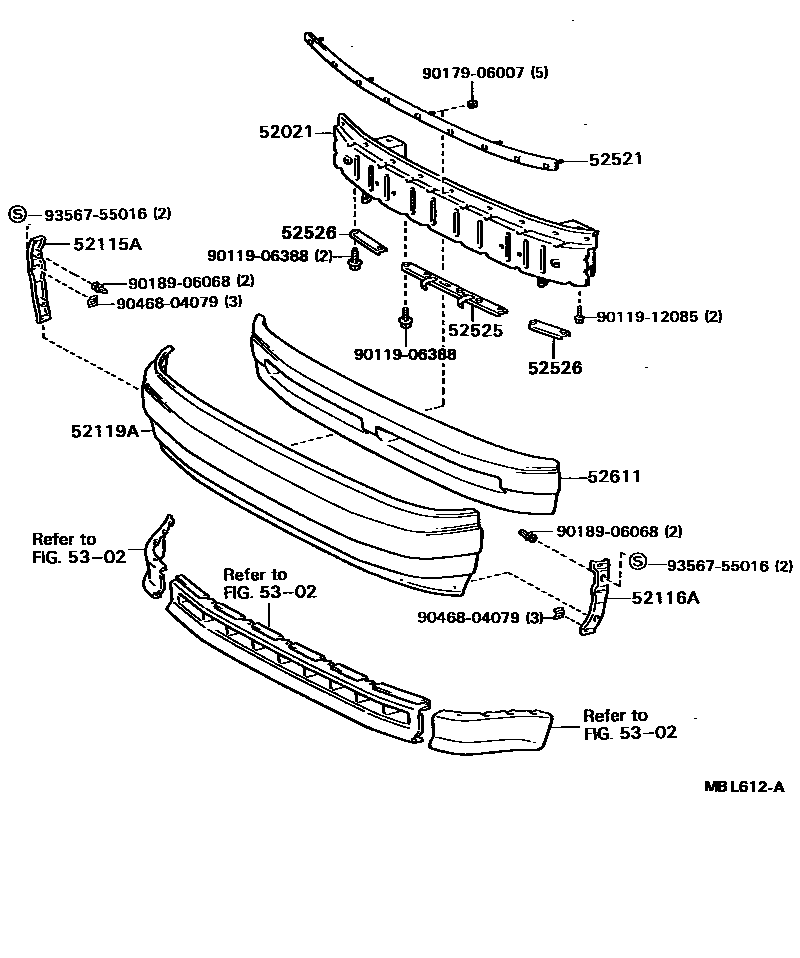

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20110iST162198708-198908

main52021-20170iST165198710-198908

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20170iST162198708-198908

main52115-20210iST165198710-198908

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20150iST162198708-198908

main52116-20190iST165198710-198908

52119ACOVER, FRONT BUMPER

main52119-20907iST162198708-198908

main52119-20910iST165198710-198908

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20070iST16#198708-198908

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-20070iST162198708-198908

main52506-20110iST165198710-198908

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-20040×2iST162198708-198908

main52526-20050×2iST165198710-198908

main52535-20030iST165198710-198908

W/O FOG LAMP,RH

main52536-20030iST165198710-198908

W/O FOG LAMP,LH

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20070iST162198708-198908

main52611-20100iST165198710-198908

5302

9011906388

main90119-06388

9011912085

main90119-12085

9017906007

main90179-06007

9018906068

main90189-06068

9046804079

main90468-04079

9356755016

main93567-55016

15 parts on this diagram · 2 diagrams in section
