04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20090i198708-198908

main04479-20120i198710-198908

sub04479-33040

04492PAD KIT, DISC BRAKE, REAR

main04492-20010i198708-198712

sub04492-20011

main04492-20011i198712-198806

sub04466-33010

main04492-20060i198806-198908

sub04492-20150

main04492-32011i198710-198908

sub04466-33010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i198708-198908

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i198708-198908

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-20060i198708-198712

main47716-32020i198710-198908

sub47716-33070

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20130i198708-198908

main47721-32040i198710-198908

sub47721-33070

sub47715-33020

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08133i198710-198908

*8-1.25PX58-25

main90109-08098i198708-198908

*8-1.25PX56-15

main90119-08431i198708-198908

*8-1.25PX62-20

main90119-08547i198710-198908

*8-1.25PX68-30

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20130i198708-198908

main47721-32040i198710-198908

sub47721-33070

sub47715-33020

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20230i198708-198908

main47730-20260i198710-198908

sub47730-33100

47731BPISTON, REAR DISC BRAKE

main47731-20110i198708-198908

main47731-20130i198710-198908

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43003i198710-198908

main90522-45001i198708-198908

47736CPLATE, REAR DISC BRAKE PAD GUIDE

main47736-12030i198708-198712

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32031i198708-198908

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12030i198708-198712

sub47743-12060

main47743-12060i198712-198908

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-12070i198708-198805

sub47744-12071

main47744-12071i198805-198908

sub47744-12080

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32030i198708-198908

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12090i198708-198712

sub47748-12110

main47748-12110i198712-198908

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20220i198708-198908

main47750-20260i198710-198908

sub47750-33100

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010i198708-198908

main47769-32020i198710-198908

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010i198708-198908

main47775-32020i198710-198908

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010i198708-198908

sub47776-12020

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010i198708-198908

main47779-32020i198710-198908

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379i198708-198908

main90119-10445i198710-198908

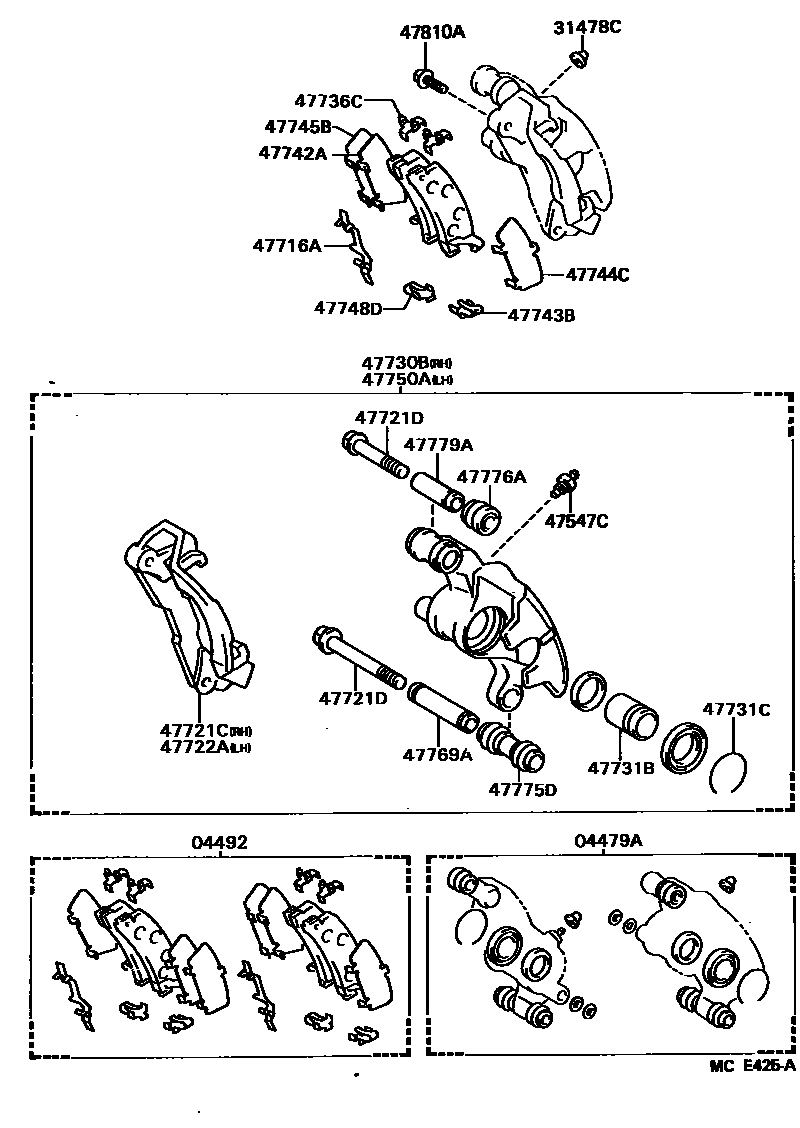

REAR DISC BRAKE CALIPER & DUST COVER
