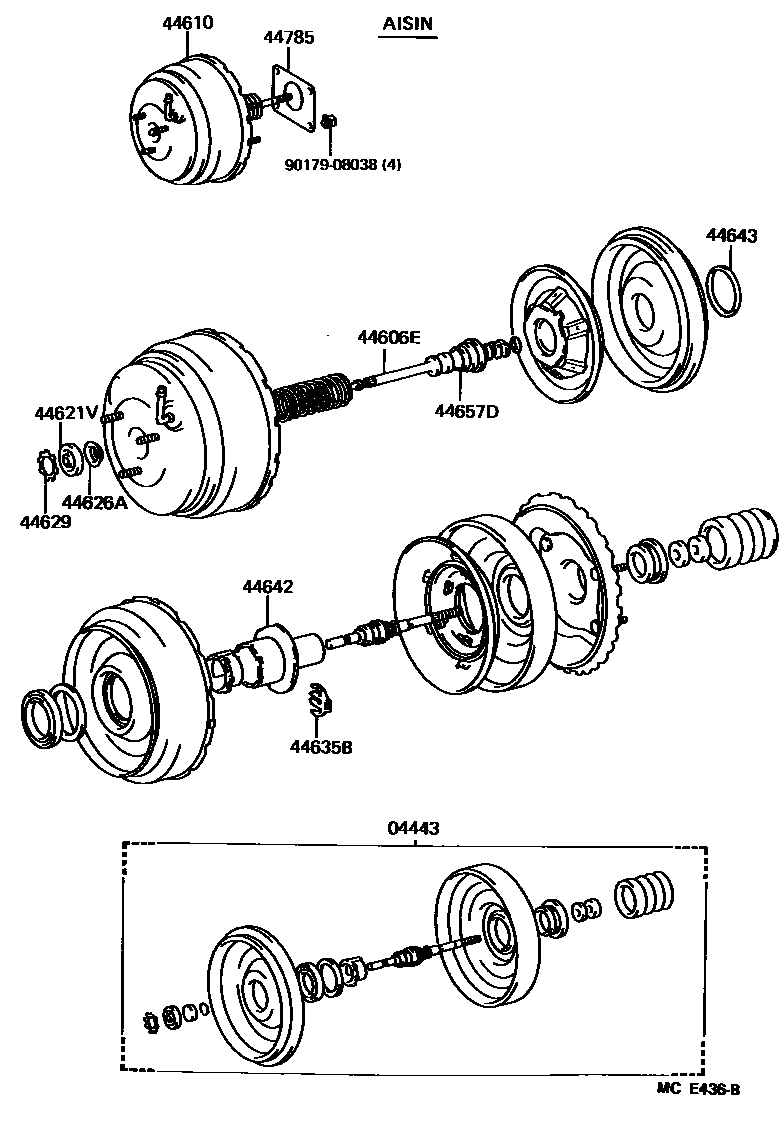

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-20440iST162198708-198908

main04443-20450iST162198708-198908

main04443-32240iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-20800iST16#198708-198908

44610BOOSTER ASSY, BRAKE

main44610-20800iST162198708-198908

main44610-2B100iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

44621VSEAL, BOOSTER BODY

main44621-14030iST16#198708-198908

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iST16#198708-198908

44629RING, CIRCULAR INTERNAL

main44628-60010iST16#198708-198908

44635BKEY, VALVE STOPPER

main44635-20800iST16#198708-198908

44642PISTON, BRAKE BOOSTER

main44642-20800iST16#198708-198908

44643RETAINER, DIAPHRAGM

main44643-20800iST16#198708-198908

44657DCASE, REACTION DISC

main44657-20800iST16#198708-198908

44785GASKET, BRAKE BOOSTER

main44785-32010iST16#198708-198908

9017908038

main90179-08038

12 parts on this diagram · 3 diagrams in section
