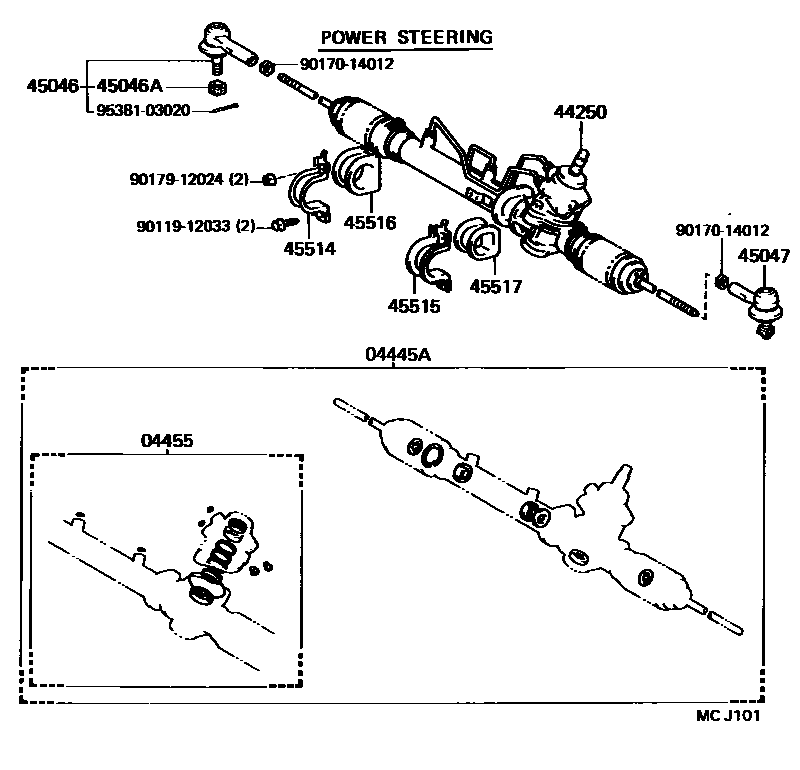

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20040iST162..USA;ST162..LB..5F..CND;ST162..4FC..GT..CND;ST162..CP..GTS..CND198708-198908

main04445-32030iST165198710-198908

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20050iST162..USA;ST162..LB..5F..CND;ST162..4FC..GT..CND;ST162..CP..GTS..CND198708-198908

main04455-20080iST165198710-198903

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20100iST162198708-198908

main44250-20160iST165198710-198801

sub44250-20161

sub44410-20490

main44250-20161iST165198801-198908

sub44250-20162

sub45517-32050

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iST16#198708-198908

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iST16#198708-198908

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iST16#198708-198908

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-20010iST162198708-198908

main45514-20060iST165198710-198908

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20030iST162198708-198908

main45515-20090iST165198710-198908

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-20010iST162198708-198908

main45516-32020iST165198710-198908

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12060iST162198708-198908

main45517-32030iST165198710-198908

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
