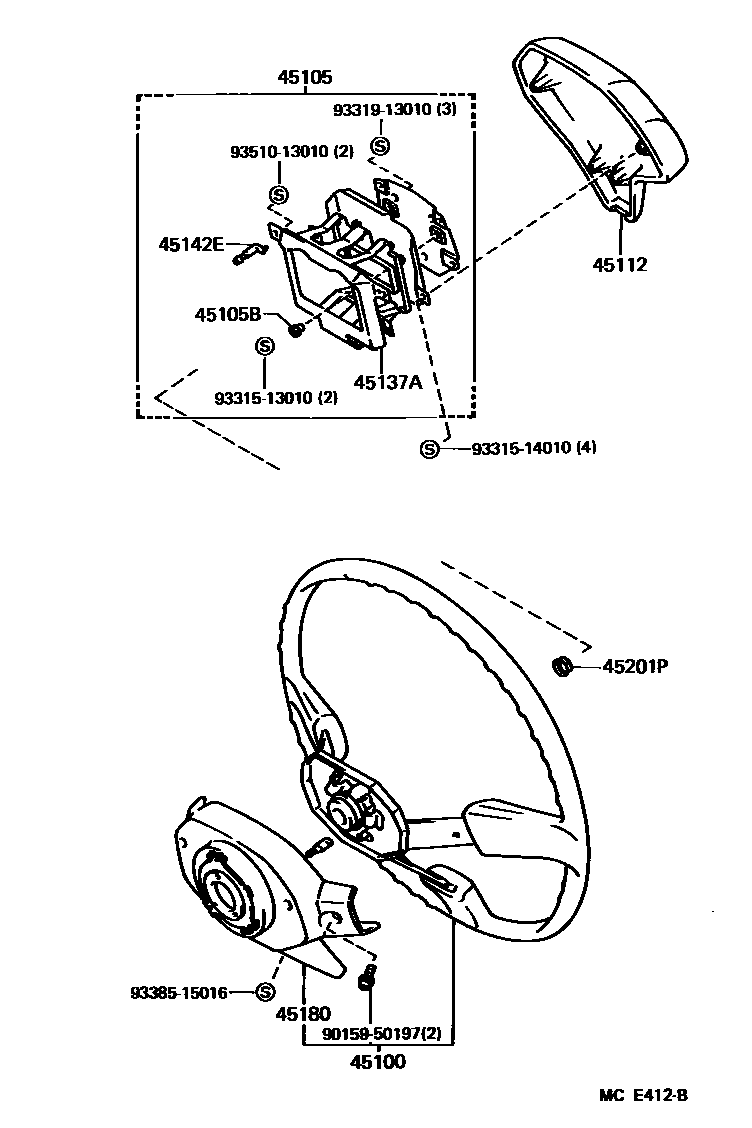

STEERING WHEEL
45100WHEEL ASSY, STEERING
W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),NEW BLACK,TRIM2#
sub45102-20490
W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),MAROON,TRIM3#
sub45102-20490
W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),DEEP BLUE,TRIM8#
sub45102-20490
W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),DARK BEIGE,TRIM4#
sub45102-20490
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
45112PAD, STEERING WHEEL
45137APLATE, HORN BUTTON CONTACT, NO.2
45142EPIECE, HORN CONTACT
45180COVER SUB-ASSY, STEERING WHEEL
45201PNUT, STEERING WHEEL SET
9015950197
main90159-50197
9331513010
main93315-13010
9331514010
main93315-14010
9331913010
main93319-13010
9338515016
main93385-15016
9351013010
main93510-13010
14 parts on this diagram · 4 diagrams in section
