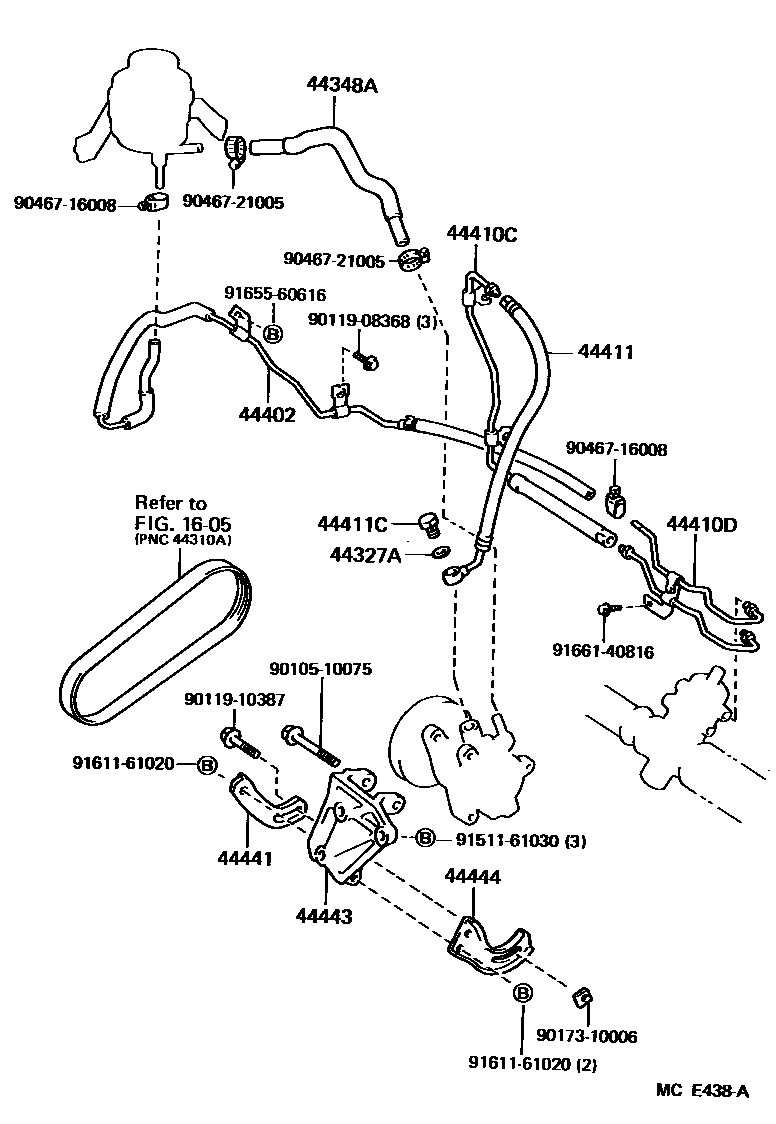

POWER STEERING TUBE

0001 1 0002 1 0003 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iST16#¥260198708-198908

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20110iST16#¥6,200198708-198908

main44348-20150iST162..GTS¥6,300198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-20180iST162..GTS¥8,100198708-198908

main44402-20210iST162..GT,ST¥6,300198708-198908

main44402-20300iST165¥8,100198710-198908

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-20330iST162¥14,200198708-198908

sub44410-20331¥14,200

main44410-20370iST165¥14,600198710-198908

sub44410-20371¥14,600

44410DTUBE ASSY, PRESSURE FEED, NO.2

main44410-20260iST162¥8,700198708-198908

main44410-20350iST165¥8,600198710-198801

main44410-20490iST165198801-198908

44411HOSE, PRESSURE FEED

main44411-20170iST162¥11,400198708-198908

sub44411-20171¥11,400

main44411-20220iST165¥12,600198710-198908

sub44411-20221¥12,600

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iST16#¥610198708-198908

44441BRACKET, PUMP, FRONT

main44441-32010iST16#¥1,130198708-198908

44443BRACKET, PUMP

main44443-20050iST16#¥5,300198708-198908

44444STAY, PUMP, REAR

main44444-20030iST16#¥1,300198708-198908

9010510075

main90105-10075¥180

9011908368

main90119-08368¥170

9011910387

main90119-10387¥260

9017310006

main90173-10006¥160

9046716008

main90467-16008¥240

9046721005

main90467-21005¥330

9151161030

main91511-61030¥240

9161161020

main91611-61020¥240

9165560616

main91655-60616¥130

9166140816

main91661-40816

21 parts on this diagram · 3 diagrams in section
