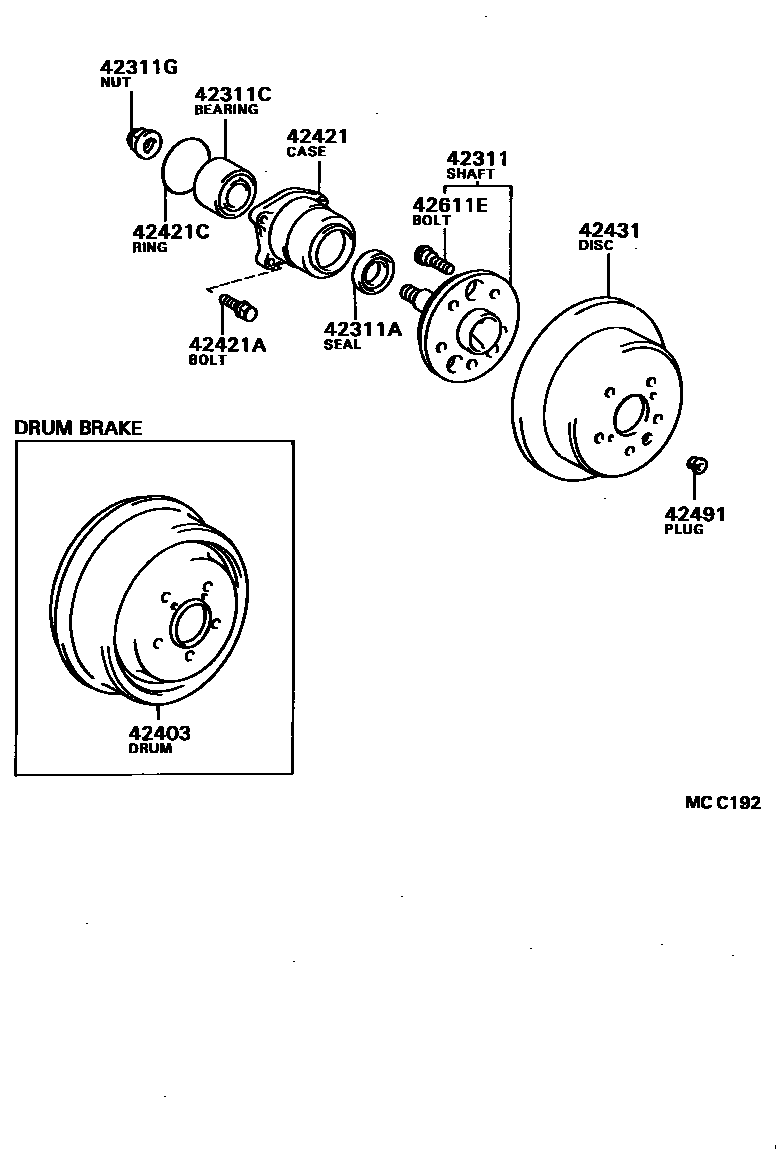

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311SHAFT, REAR AXLE

main42301-20070iST165¥14,900198710-198908

main42301-20080iST162..GT,ST¥16,200198708-198908

sub42410-20130¥24,300

main42301-32020iST162..GTS¥14,200198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

sub42410-32050¥24,400

main42301-32031iST162..GTS¥13,600198708-198908

sub42410-20140¥24,300

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iST162¥270198708-198908

main90311-52005iST165¥520198710-198908

OUTER

main90311-56007iST165¥520198710-198908

INNER

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iST162¥6,900198708-198908

main90369-38003iST165¥7,000198710-198908

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19002iST165¥320198710-198908

main90179-20003iST162¥510198708-198903

main90179-20017iST162¥410198903-198908

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20080iST162..GT,ST¥9,400198708-198908

42421CASE, REAR AXLE BEARING

main42421-20020iST162¥7,500198708-198908

sub42409-20010¥16,100

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iST162¥200198708-198908

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iST162¥350198708-198908

sub90301-63006¥350

42431DISC, REAR

main42431-20090iST162..GTS¥10,200198708-198908

sub42431-20160¥10,200

main42431-20100iST165¥10,200198710-198908

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iST16#..GTS,TBO4W,TBOAT¥140198708-198908

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iST162..GT,ST¥230198708-198908

11 parts on this diagram · 3 diagrams in section
