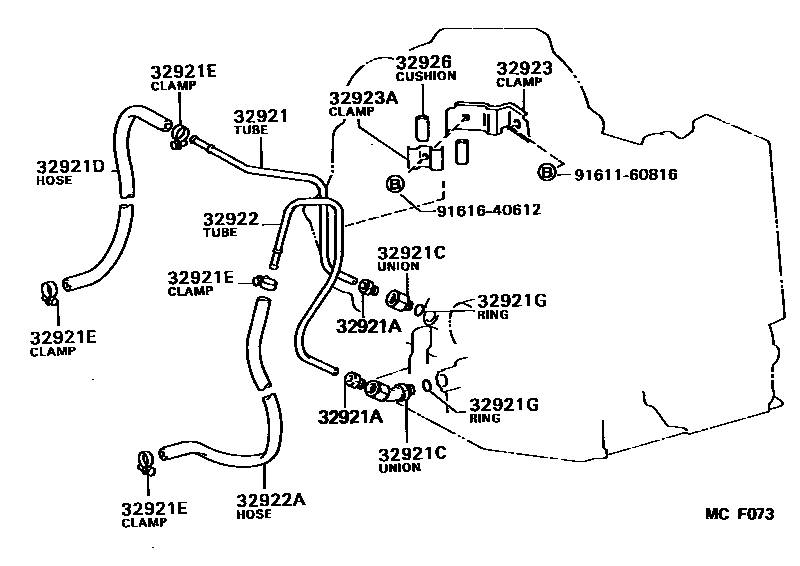

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-20260iST162..4FC198708-198908

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-14004iST162..4FC198708-198908

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iST162..4FC198708-198908

OUTLET

main90404-14007iST162..4FC198708-198908

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-20080iST162..4FC198708-198908

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iST162..4FC198708-198908

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iST162..4FC198708-198908

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32040iST162..4FC198708-198902

sub32922-32041

main32922-32041iST162..4FC198902-198908

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-16026iST162..4FC198708-198908

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20090iST162..4FC198708-198908

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12085iST162..4FC198708-198908

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iST162..4FC198708-198908

L=25,ID=8

9161160816

main91611-60816

9161640612

main91616-40612

13 parts on this diagram · 1 diagram in section
