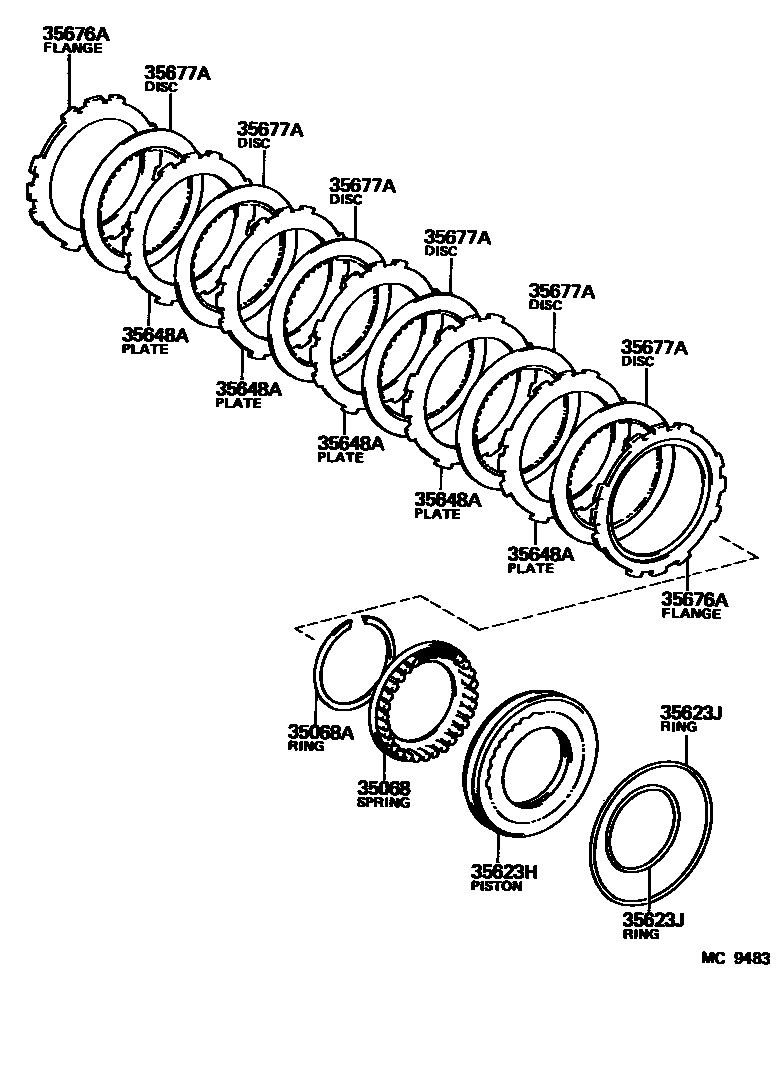

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iST162..4FC¥2,210198708-198908

sub35068-20010¥2,120

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iST162..4FC¥230198708-198908

35623HPISTON, 1ST & REVERSE BRAKE

main35623-32010iST162..4FC¥3,710198708-198908

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iST162..4FC¥600198708-198908

INNER

main90301-99022iST162..4FC¥940198708-198908

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iST162..4FC¥2,190198708-198908

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iST162..4FC¥4,590198708-198908

T=3.5

sub35676-12030¥4,810

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32040iST162..4FC¥2,060198708-198908

7 parts on this diagram · 1 diagram in section
