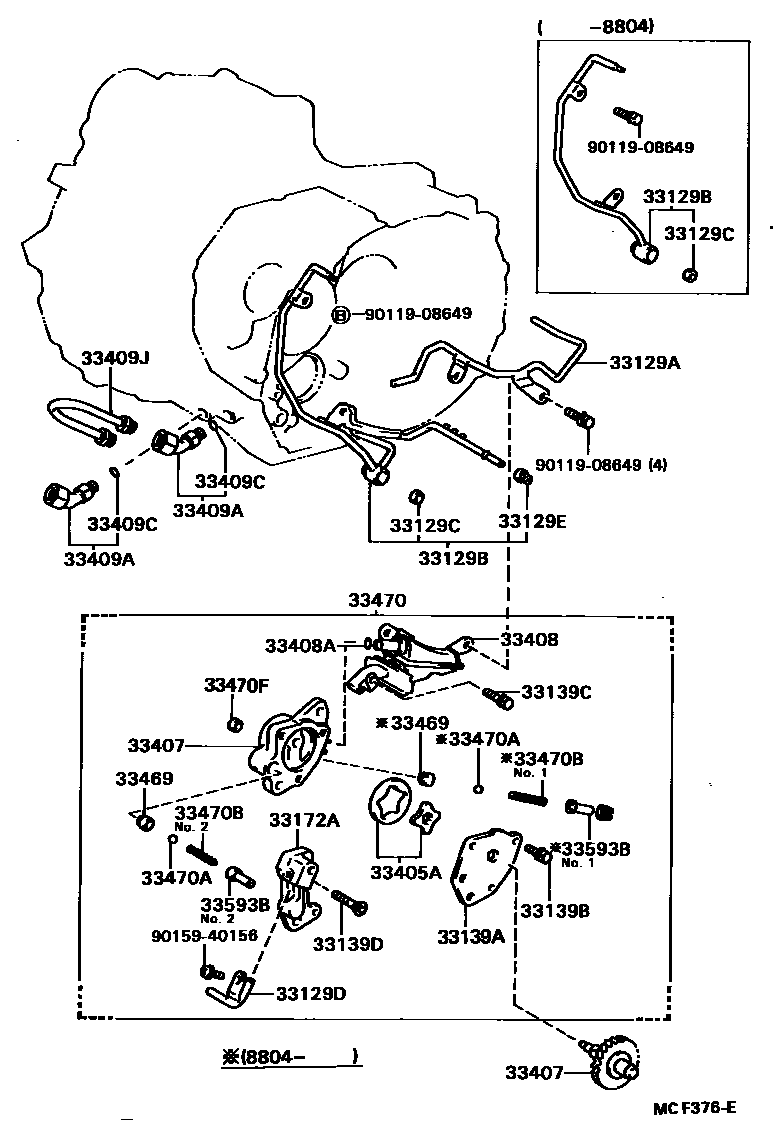

OIL PUMP, OIL COOLER & PIPE (MTM)
33129APIPE, MANUAL TRANSMISSION OIL, NO.1
33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)
33129DPIPE, TRANSMISSION OIL, NO.3
33129EBUSH(FOR MANUAL TRANSMISSION OIL PIPE)
33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)
33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)
33139CBOLT(FOR TRANSMISSION OIL PUMP COVER)
33139DSCREW(FOR TRANSMISSION OIL PUMP COVER)
33172ABY-PASS, TRANSMISSION OIL PUMP
33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP
33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE
33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
33409CRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)
33409JTUBE SUB-ASSY, TRANSMISSION OIL COOLER, NO.2
33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)
33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)
33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)
NO.2
NO.1
NO.1
33470FGASKET (FOR TRANSMISSION OIL PUMP)
33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)
NO.1
NO.2
9011908649
main90119-08649
9015940156
main90159-40156
25 parts on this diagram · 1 diagram in section
