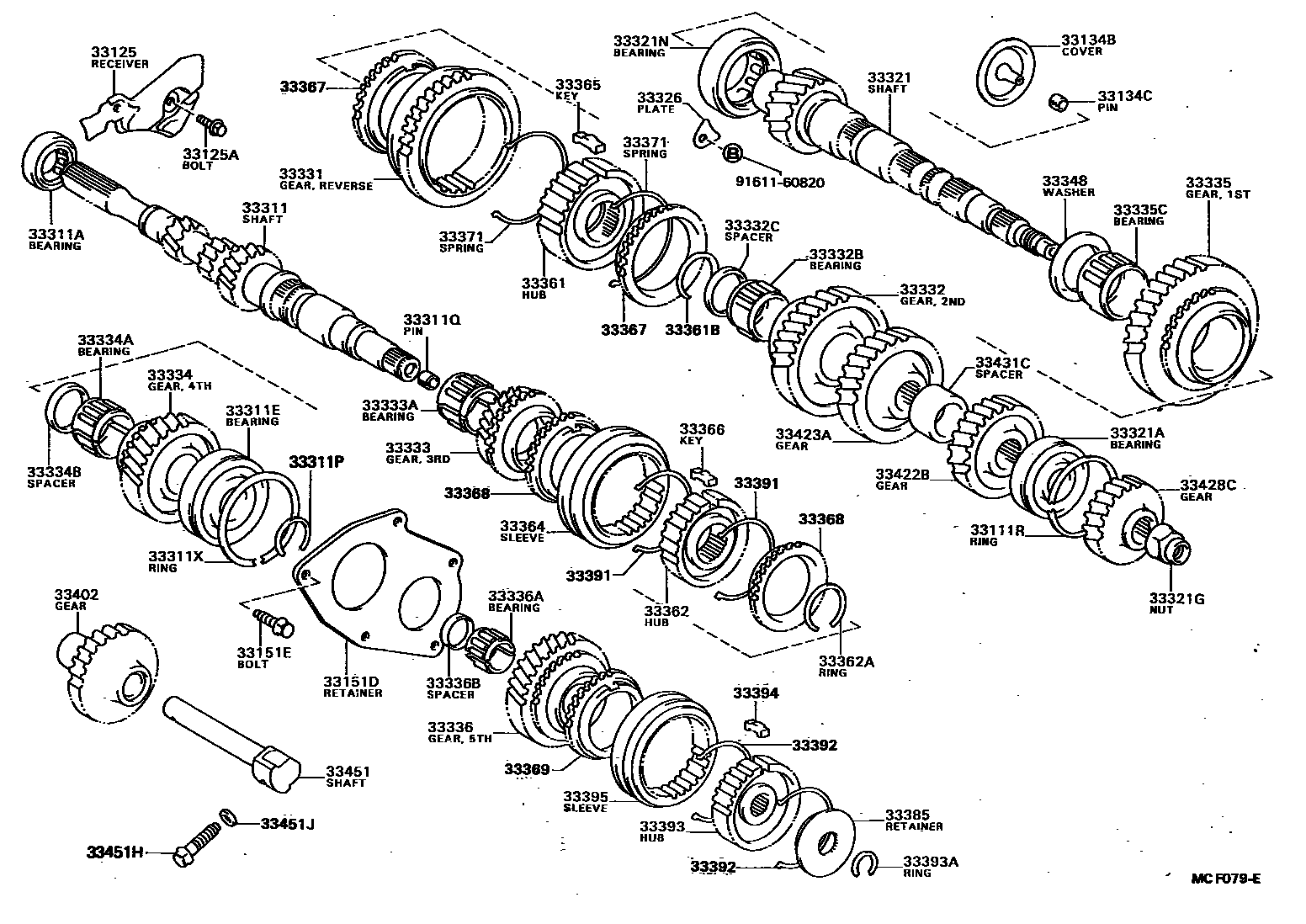

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)
33151DRETAINER, BEARING, REAR(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.15-2.20,MARK A
T=2.20-2.25,MARK B
T=2.25-2.30,MARK C
T=2.30-2.35,MARK D
T=2.35-2.40,MARK E
T=2.35-2.40,MARK 1
T=2.40-2.45,MARK 2
T=2.45-2.50,MARK 3
T=2.50-2.55,MARK 4
T=2.55-2.60,MARK 5
T=2.60-2.65,MARK 6
T=2.65-2.69,MARK 7
T=2.70-2.74,MARK 8
33311QPIN, SLOTTED SPRING (FOR INPUT SHAFT)
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK 1
T=2.55-2.60,MARK 2
T=2.60-2.65,MARK 3
T=2.65-2.70,MARK 4
T=2.70-2.75,MARK 5
T=2.75-2.80,MARK 6
T=2.80-2.85,MARK A
T=2.85-2.90,MARK B
T=2.90-2.95,MARK C
T=2.95-3.00,MARK D
T=3.00-3.05,MARK E
T=3.05-3.10,MARK F
T=3.10-3.15,MARK G
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=2.30-2.35,MARK H
T=2.35-2.40,MARK J
T=2.40-2.45,MARK K
T=2.45-2.50,MARK L
T=2.50-2.55,MARK M
T=2.55-2.60,MARK N
T=2.60-2.65,MARK P
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
FOR 1ST
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33385RETAINER, SHIFTING KEY
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.60-1.65,MARK 1
T=1.65-1.70,MARK 2
T=1.70-1.75,MARK 3
T=1.75-1.80,MARK 4
T=1.80-1.85,MARK 5
T=1.85-1.90,MARK 6
T=1.90-1.95,MARK 7
T=1.95-2.00,MARK 8
T=2.00-2.05,MARK 9
T=2.05-2.10,MARK 10
T=2.10-2.15,MARK 11
T=2.15-2.20,MARK 12
T=2.20-2.25,MARK 13
T=2.25-2.30,MARK 14
T=2.30-2.35,MARK 15
T=2.10,MARK 4
T=2.15,MARK 5
T=2.35-2.40,MARK S
T=2.40-2.45,MARK T
T=2.45-2.50,MARK U
T=2.50-2.55,MARK V
T=2.55-2.60,MARK W
T=2.60-2.65,MARK X
T=2.65-2.70,MARK Y
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
9161160820
60 parts on this diagram · 2 diagrams in section
