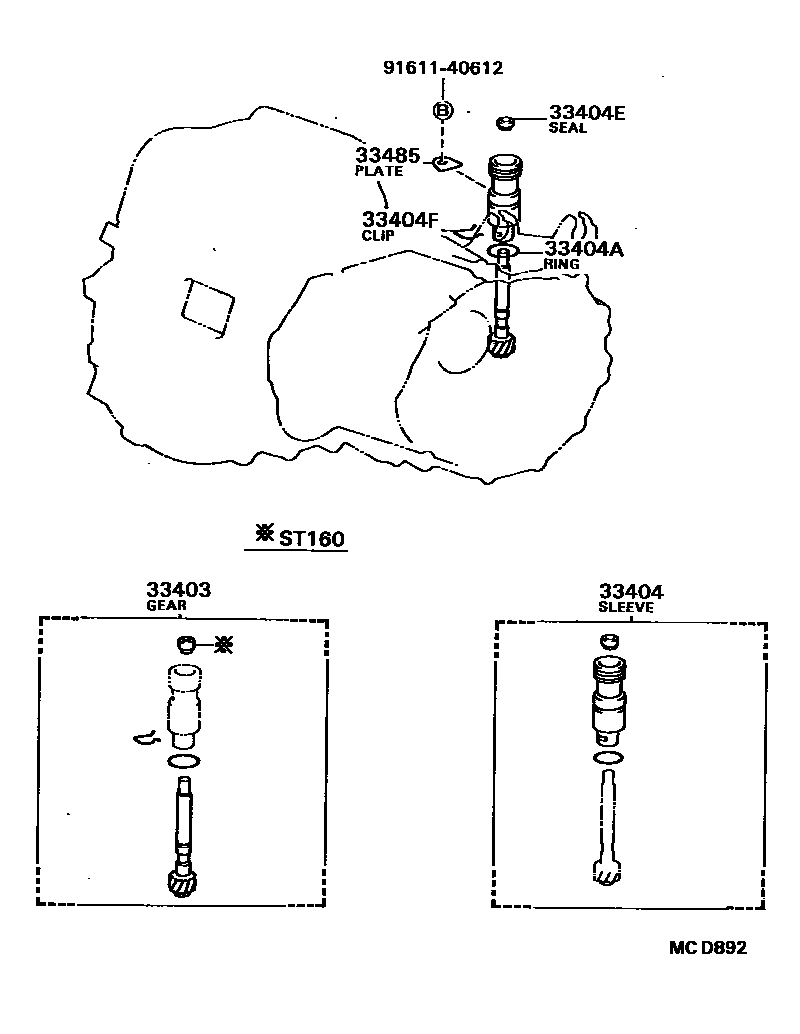

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1S53 0002 1E50F2

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19405iST165198710-198908

N=30,MARK 30:35

sub33403-19406

main33403-39115iST162..5F198708-198908

N=22,MARK 22:25

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iST162..5F198708-198908

main33404-17010iST165198710-198908

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iST162..5F198708-198908

main96721-24030iST165198710-198908

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iST162..5F198708-198908

main90310-09003iST165198710-198908

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iST16#..5F198708-198908

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iST162..5F198708-198908

9161140612

main91611-40612

7 parts on this diagram · 2 diagrams in section
