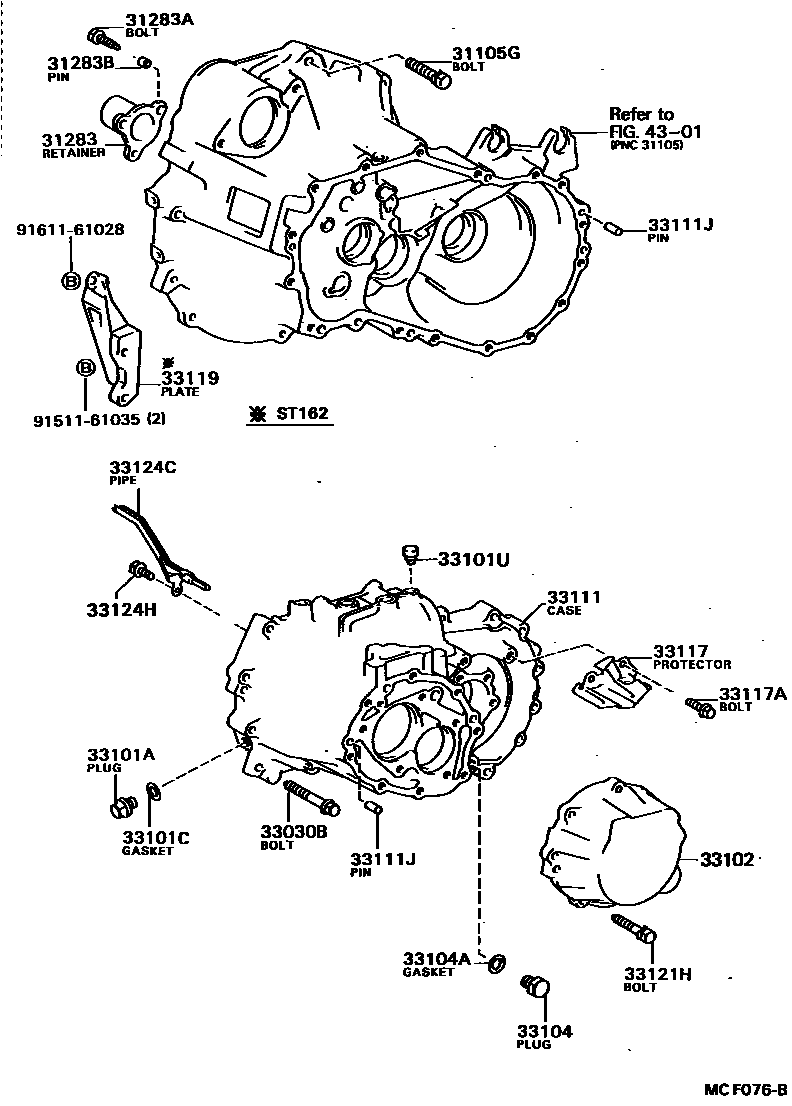

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1S53 0002 1E50F2

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iST16#..5F¥180198708-198908

*8-1.25PX18-15

sub91641-H0820¥90

main90105-10077iST16#..5F¥260198708

*10-1.25PX43-26

main90119-12168iST16#..5F¥170198708-198908

*12-1.25PX55-30

main91651-41022iST162..5F¥160198708-198908

*10-1.25PX22-22

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010iST162..5F¥3,670198708-198908

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023iST162..5F¥210198708-198908

sub91511-B0620¥100

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002iST162..5F¥200198708-198908

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iST162..5F¥300198708-198908

*8-1.25PX45-27.5

sub90105-08430¥100

main90105-08126iST165¥190198710-198908

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iST162..5F¥580198708-198908

main90341-18033iST165¥190198710-198908

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iST16#..5F¥110198708-198908

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iST162..5F¥610198708-198908

main90930-03111iST165¥1,630198710-198908

sub90930-03148¥1,650

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-20040iST165¥15,400198710-198908

sub33102-33010¥15,100

main33102-32011iST162..5F¥14,600198708-198908

sub33102-32012¥16,300

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iST16#..5F¥180198708-198908

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iST16#..5F¥110198708-198908

33111CASE, MANUAL TRANSMISSION

main33101-20030iST165¥39,500198710-198907

sub33101-20040¥40,900

sub90560-10019¥280

sub91511-61016¥140

main33101-20040iST165¥40,900198907-198908

sub33101-33010¥40,800

main33111-20140iST162..5F¥35,500198906-198910

sub33111-20141¥35,600

main33111-32014iST162..5F¥35,600198708-198906

sub33111-20140¥35,500

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iST16#..5F¥120198708-198908

L=23,OD=8

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iST165¥1,950198710-198908

main33117-32011iST162..5F¥2,010198708-198908

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iST16#..5F¥180198708-198908

sub91641-H0820¥90

33119PLATE, STIFFENER, LH(MTM)

main33119-20080iST165¥1,880198710-198905

main33119-20090iST165¥3,200198905-198908

main33119-32020iST162..5F..(GT,ST)¥3,090198708-198908

main33119-32030iST162..5F..GTS¥4,100198708-198908

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iST162..5F¥190198708-198908

sub90105-08273¥170

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20020iST165¥1,200198710-198908

main33124-32011iST162..5F¥790198708-198908

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iST165¥140198710-198908

sub90119-08830¥100

main91651-60618iST162..5F¥90198708-198908

4301

9151161035

main91511-61035¥230

9161161028

main91611-61028¥140

22 parts on this diagram · 2 diagrams in section
