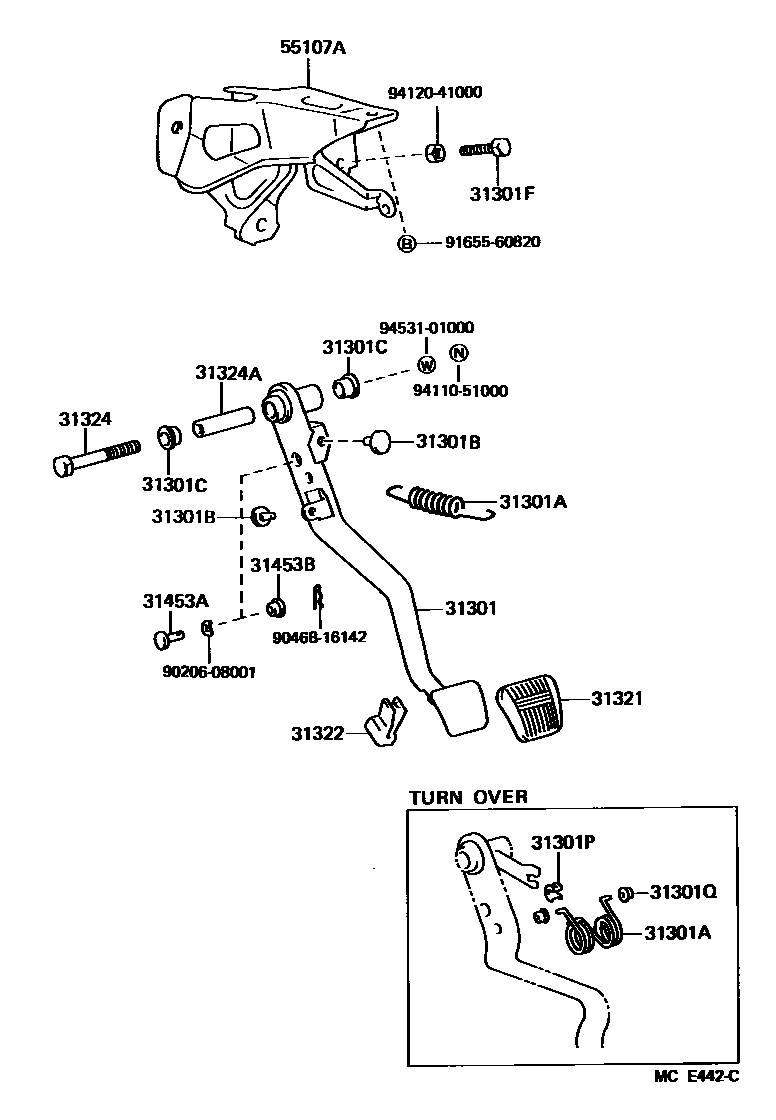

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31310-20050iST16#..5F..(GTS,TBO4W,TBOAT)198708-198908

main31310-20060iST162..5F..(GT,ST)198708-198908

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iST162..5F..(GT,ST)198708-198908

main90508-35022iST16#..5F..(GTS,TBO4W,TBOAT)198708-198908

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iST16#..5F198708-198908

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iST162..5F..(GT,ST)198708-198908

main90386-13192iST16#..5F..(GTS,TBO4W,TBOAT)198708-198908

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iST16#..5F198708-198908

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-04002iST16#..5F..(GTS,TBO4W,TBOAT)198708-198908

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-04009iST16#..5F..(GTS,TBO4W,TBOAT)198708-198908

31321PAD, CLUTCH PEDAL

main31321-14020iST16#..5F198708-198908

31322STOPPER, CLUTCH PEDAL

main31322-20010iST16#..5F198708-198908

31324SHAFT, CLUTCH PEDAL

main90101-10015iST16#..5F198708-198908

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iST16#..5F198708-198908

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iST16#..5F198708-198908

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iST16#..5F198708-198908

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20180iST162..5F..(GT,ST)198708-198908

main55107-20190iST16#..5F..(GTS,TBO4W,TBOAT)198708-198908

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

20 parts on this diagram · 2 diagrams in section
