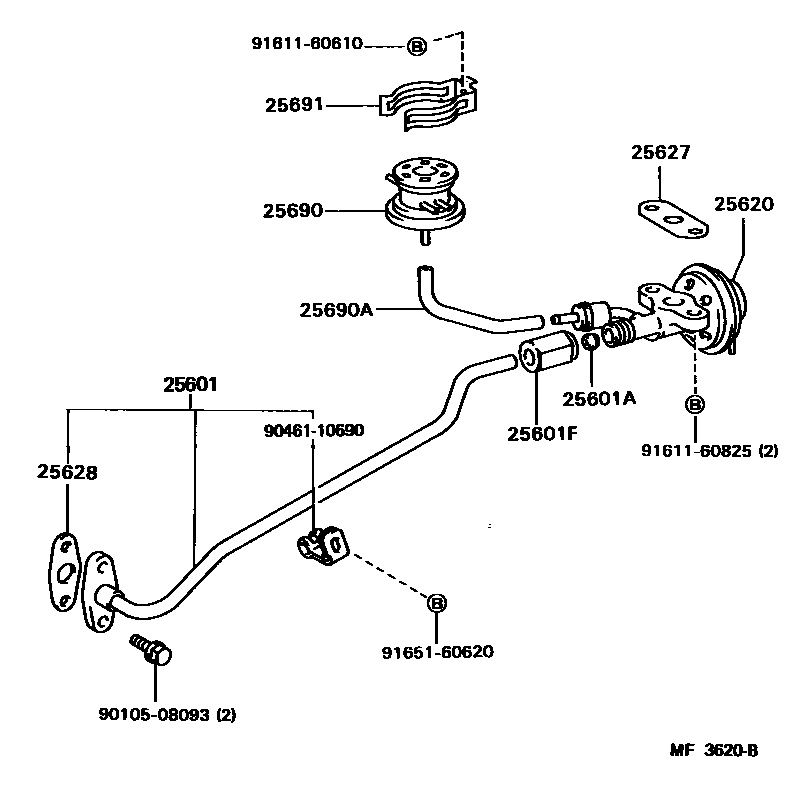

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-74040i3SGELC..ST162198708-198908

sub25601-74041

sub25634-74050

main25601-88380i3SGTE..ST165198710-198908

sub25601-88382

main25611-74030i3SFE..ST162198708-198908

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i3SFE..ST162198708-198908

25601FUNION(FOR EGR PIPE, NO.1)

main90402-20009i3SGELC..ST162198708-198908

main90402-20073i3SFE..ST162198708-198908

25620VALVE ASSY, EGR

main25620-74110i3SFE..ST162..5F198708-198908

main25620-74120i3SFE..ST162..4FC198708-198908

main25620-74140i3SFE..ST162..5F..USA198808-198908

CALIFORNIA SPEC

main25620-74150i3SFE..ST162..4FC..USA198808-198908

CALIFORNIA SPEC

main25620-74160i3SGELC..ST162198708-198908

main25620-74170i3SGTE..ST165198710-198908

sub25620-74220

25627GASKET, EGR VALVE

main25627-74010i3SFE..ST162198708-198907

sub25627-74011

main25627-74011i3SFE..ST162198907-198908

main25627-74040i3SG#..ST16#198708-198908

sub25627-74060

25628GASKET, EGR INLET

main25634-74030i3SGTE..ST165198708-198908

sub25634-74040

25690MODULATOR ASSY, EGR VACUUM

main25690-88380i3SGTE..ST165198710-198908

main25870-74070i3SGELC..ST162..5F198708-198908

main25870-74080i3SGELC..ST162..4FC198708-198908

main25870-74090i3SFE..ST162..5F198708-198908

main25870-74100i3SFE..ST162..4FC198708-198908

sub25870-74090

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-74010i3SGELC..ST162198708-198908

main25695-88380i3SGTE..ST165198710-198908

main90445-11065i3SFE..ST162198708-198908

25691BRACKET, EGR VACUUM MODULATOR

main25691-74030i3SGELC..ST162198708-198908

main25691-74040i3SFE..ST162198708-198908

sub25691-74080

9010508093

main90105-08093

9046110690

main90461-10690

9161160610

main91611-60610

9161160825

main91611-60825

9165160620

main91651-60620

14 parts on this diagram · 3 diagrams in section
