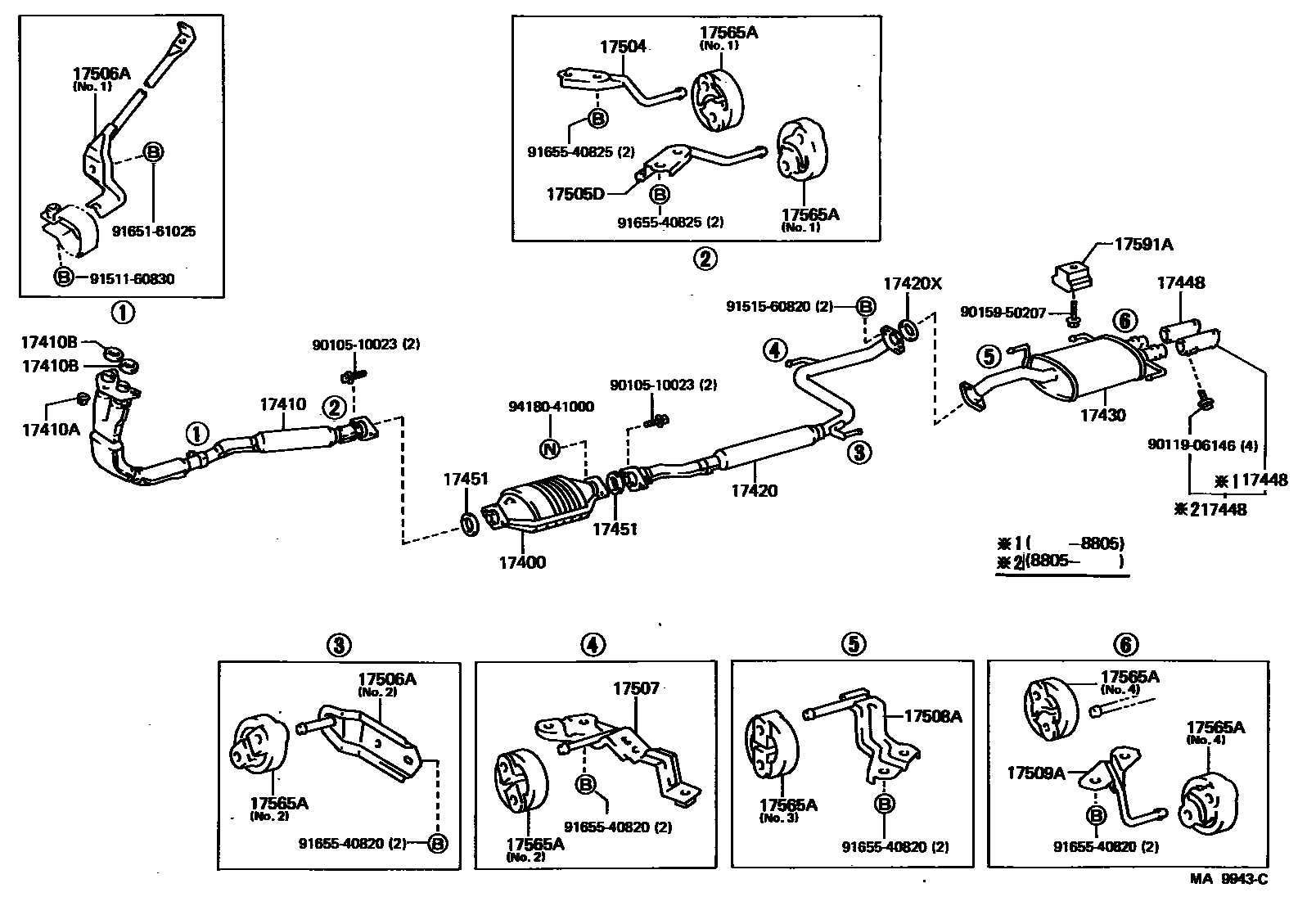

EXHAUST PIPE
17410ANUT, EXHAUST PIPE SET STUD BOLT
17420PIPE ASSY, EXHAUST, CENTER
CALIFORNIA SPEC
17420XGASKET, EXHAUST PIPE, CENTER
sub90917-06045
17504BRACKET SUB-ASSY, CATALYTIC CONVERTER
17505DBRACKET SUB-ASSY, CONVERTER SUPPORT, LH
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
NO.2
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.4
NO.3
NO.1
NO.3
NO.2
NO.4
NO.2
NO.1,2
NO.1
17591ASTOPPER, EXHAUST PIPE SUPPORT
9010510023
main90105-10023
9011906146
main90119-06146
9015950207
main90159-50207
9151160830
main91511-60830
9151560820
main91515-60820
9165161025
main91651-61025
9165540820
main91655-40820
9165540825
main91655-40825
9418041000
main94180-41000
26 parts on this diagram · 3 diagrams in section
