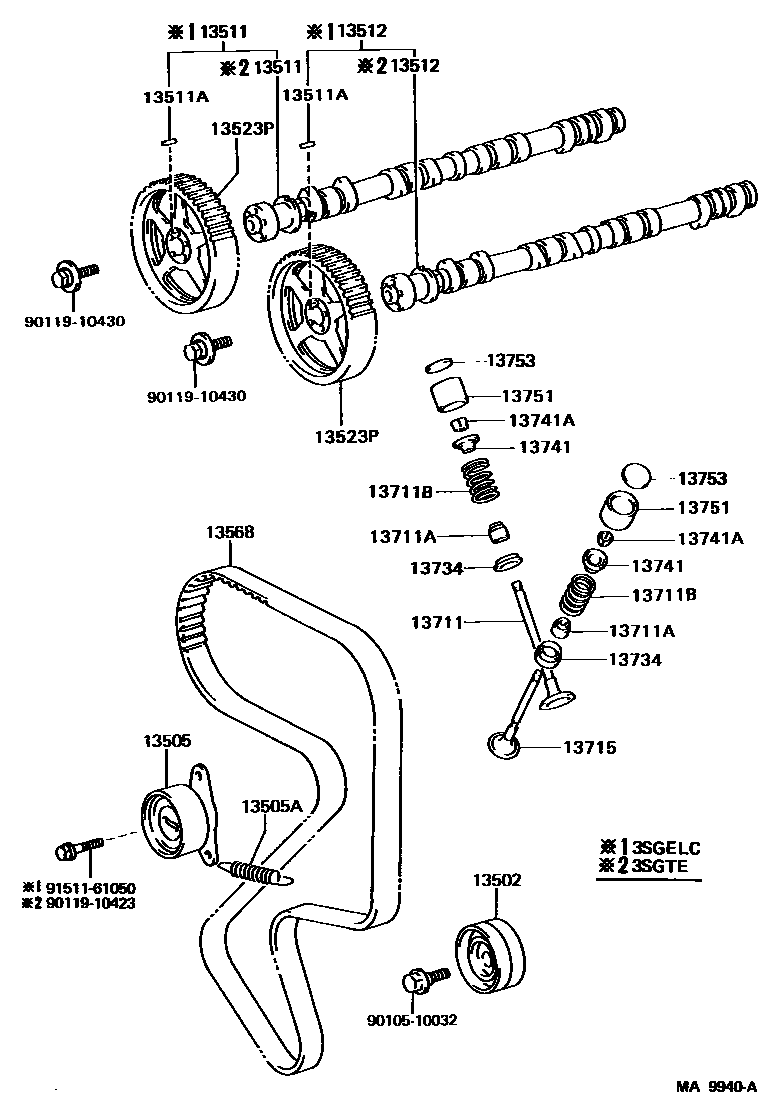

CAMSHAFT & VALVE
13511CAMSHAFT
CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=13.8,OD=5.0
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE
EXHAUST SIDE
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.50,T=2.50
T=2.55,T=2.55
T=2.55
T=3.25,T=3.25
T=3.25
T=3.30
T=3.30,T=3.30
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
9010510032
main90105-10032
9011910423
main90119-10423
9011910430
main90119-10430
9151161050
main91511-61050
21 parts on this diagram · 2 diagrams in section
