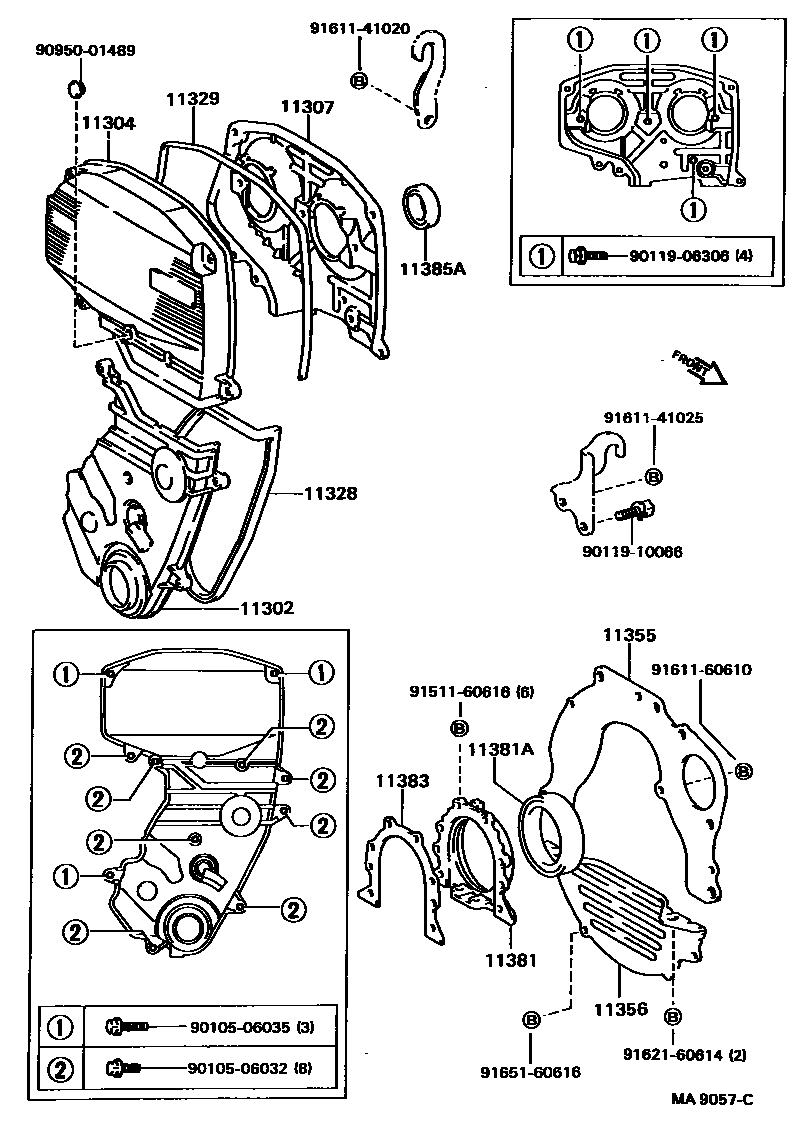

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-74010i3SFE..ST162198708-198906

sub11302-74011

main11302-74011i3SFE..ST162198906-198908

main11321-88360i3SG#..ST16#198708-198909

sub11321-74030

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74010i3SFE..ST162198708-198908

main11322-88361i3SGELC..ST162198708-198908

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-74010i3SFE..ST162198708-198908

main11323-88360i3SGELC..ST162198708-198908

sub11323-88361

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-74010i3SFE..ST162198708-198908

main11328-88361i3SG#..ST16#198708-198908

11329GASKET, TIMING GEAR REAR COVER

main11329-74010i3SFE..ST162198708-198908

main11329-88360i3SG#..ST16#198708-198908

11355PLATE, REAR END

main11355-63021i3SGELC..ST162198708-198908

main11355-74010i3SFE..ST162198708-198908

main11355-74030i3SGTE..ST165198710-198908

11356PLATE, REAR END, NO.2

main11356-63030i3SFE,3SG#..ST16#198708-198907

sub11356-63031

main11356-63031i3SFE,3SG#..ST16#198907-198908

sub11356-74030

11381RETAINER, ENGINE REAR OIL SEAL

main11381-63011i3SFE,3SG#..ST16#198708-198907

sub11381-63012

main11381-63012i3SFE,3SG#..ST16#198907-198908

11381ASEAL, ENGINE REAR OIL

main90311-85003i3SFE,3SG#..ST16#198708-198908

sub90311-85006

main90311-89001i3SG#..ST16#198907-198908

sub90311-89003

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-63010i3SFE,3SGELC..ST162198708-198907

sub11383-63011

main11383-63011i3SFE..ST162198907-198908

sub11383-74021

main11383-88380i3SGTE..ST165198710-198907

sub11383-88381

main11383-88381i3SG#..ST16#198907-198908

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i3SGELC..ST162198708-198908

sub90311-35022

9010506032

main90105-06032

9010506035

main90105-06035

9011906306

main90119-06306

9011910066

main90119-10066

9095001489

main90950-01489

9151160616

main91511-60616

9161141020

main91611-41020

9161141025

main91611-41025

9161160610

main91611-60610

9162160614

main91621-60614

9165160616

main91651-60616

22 parts on this diagram · 3 diagrams in section
