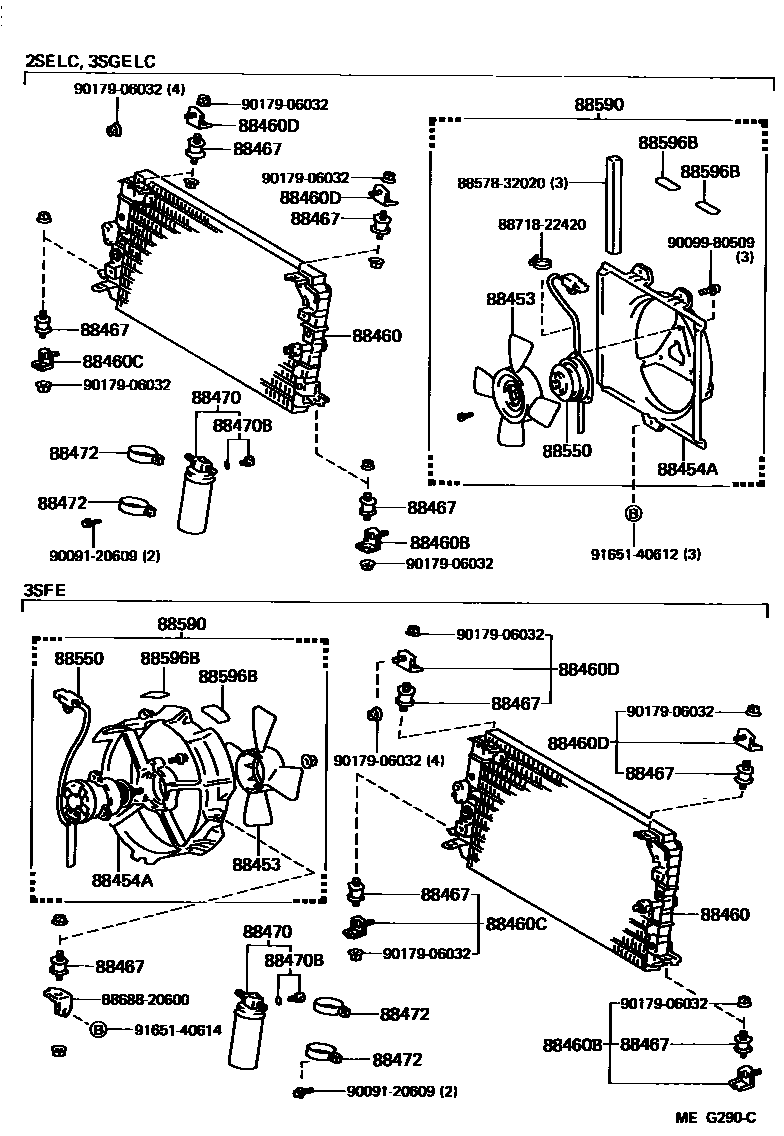

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88453FAN, COOLING (FOR CONDENSER)

main88453-20020iST162..GT,ST198608-198708

main88453-32020iST16#198508-198708

88454ASHROUD, FAN

main88454-20050iST162..GT,ST198608-198708

main88454-32030iST16#198508-198708

88460CONDENSER ASSY, COOLER

main88460-20200iST16#198508-198708

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-20650iST16#198508-198708

main88688-20760iST162..GT,ST198608-198708

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-20660iST162..GTS198508-198708

main88688-20770iST162..GT,ST198608-198708

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-20620iST16#198508-198708

main88688-20750iST162..GT,ST198608-198708

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14040iST16#198508-198708

88470RECEIVER & DRYER ASSY, COOLER

main88470-12050iST16#198508-198708

sub88470-14010

88470BBOLT, FUSE

main88475-12020iST16#198508-198708

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iST16#198508-198708

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iST16#198508-198708

main88550-20030iST162..GT,ST198608-198708

sub88550-24060

88590BLOWER ASSY, W/SHROUD

main88590-20080iST162..GT,ST198608-198708

main88590-20090iST161198508-198608

sub88590-20100

main88590-20100iST162..GTS198508-198708

88596BPLATE, CAUTION, NO.1

main88596-12010iST16#198508-198608

AIR CONDITIONER CAUTION

sub88723-12010

main88596-12040iST16#198508-198608

CAUTION

main88596-24010iST162198608-198708

CAUTION

main88723-12010iST162198608-198708

AIR CONDITIONER CAUTION

8857832020PAKING, COOLER AIR DUCT

main88578-32020

8868820600BRACKET, COOLER DIAPHRAGM

main88688-20600

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9009120609

main90091-20609

9009980509

main90099-80509

9017906032

main90179-06032

9165140612

main91651-40612

9165140614

main91651-40614

21 parts on this diagram · 2 diagrams in section
