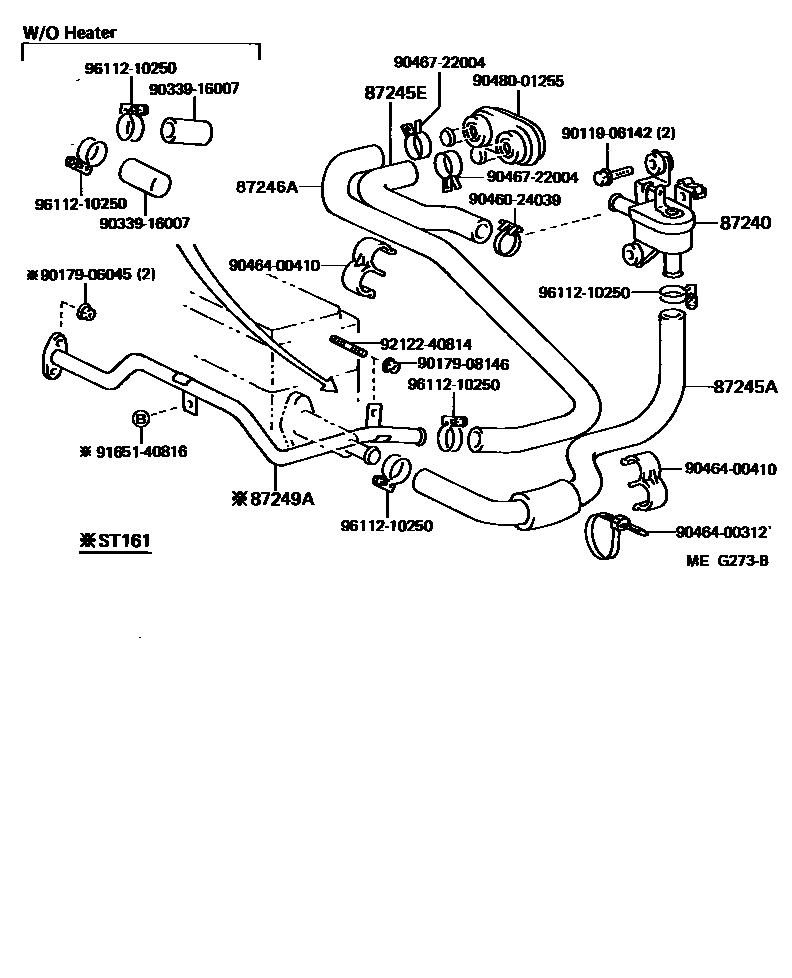

HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-20300iST16#198508-198708

87245AHOSE, HEATER WATER, INLET A

main87245-20830iST161198508-198608

main87245-2B080iST162198508-198708

87245EHOSE, HEATER WATER, INLET E

main87245-20820iST16#198508-198708

87246AHOSE, HEATER WATER, OUTLET A

main87245-20870iST16#198508-198708

87249APIPE, HEATER WATER OUTLET, A

main87208-20170iST161198508-198608

9011906142

main90119-06142

9017906045

main90179-06045

9017908146

main90179-08146

9033916007

main90339-16007

9046024039

main90460-24039

9046400312

main90464-00312

9046400410

main90464-00410

9046722004

main90467-22004

9048001255

main90480-01255

9165140816

main91651-40816

9212240814

main92122-40814

9611210250

main96112-10250

17 parts on this diagram · 1 diagram in section
