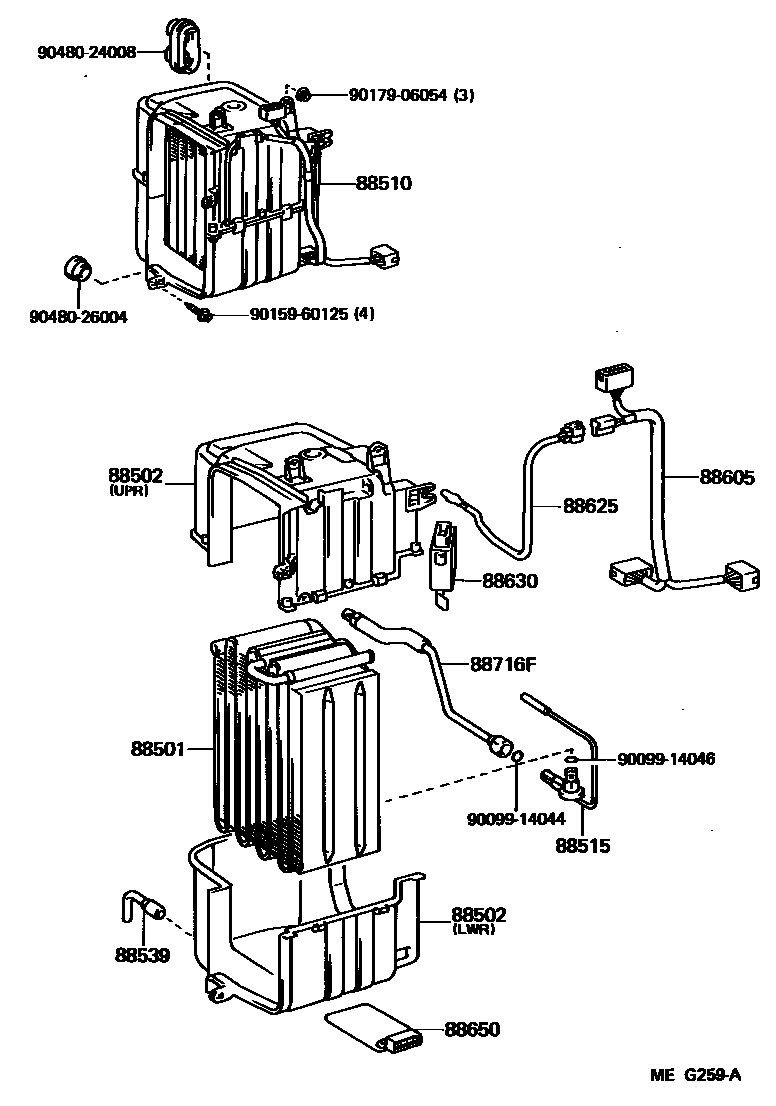

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20210iST16#198508-198601

sub88501-20211

main88501-20211iST16#198601-198708

88502CASE SUB-ASSY, COOLING UNIT

main88502-20070iST16#198508-198708

UPR

main88502-20080iST16#198508-198708

LWR

88510UNIT ASSY, COOLER

main88510-20380iST16#..ST198508-198708

main88510-20390iST16#..GT,GTS198508-198608

sub88510-20391

main88510-20391iST162..GT,GTS198608-198708

main88510-20400iST16#..GT,GTS198508-198608

W/*AAC

sub88510-20401

main88510-20401iST162..(CP,LB)..(GT,GTS)198608-198708

W/*AAC

main88510-20410iST16#..ST198508-198708

W/*BV

88515VALVE, COOLER EXPANSION

main88515-16031iST16#¥7,400198508-198708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20130iST16#198508-198708

sub88539-22110

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20590iST16#..ST198508-198708

main88605-20600iST16#..GT,GTS198508-198608

sub88605-20601

main88605-20601iST162..GT,GTS198608-198708

W/*AAC

main88605-20620iST16#..ST198508-198708

W/*BV

88625THERMISTOR, COOLER, NO.1

main88625-12070iST16#198508-198708

88630RELAY ASSY, COOLER

main88630-20020iST16#..GT,GTS198508-198708

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20240iST161..ST198508-198605

sub88650-20241

main88650-20241iST162198608-198708

main88650-20250iST161..ST198508-198608

W/*BV

sub88650-20251

main88650-20251iST162..ST198608-198708

W/*BV

main88650-20260iST16#..GT,GTS198508-198608

sub88650-20261

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-2B050iST16#¥2,960198508-198708

9009914044

main90099-14044

9009914046

main90099-14046

9015960125

main90159-60125¥120

9017906054

main90179-06054¥100

9048024008

main90480-24008

9048026004

main90480-26004¥0

16 parts on this diagram · 1 diagram in section
