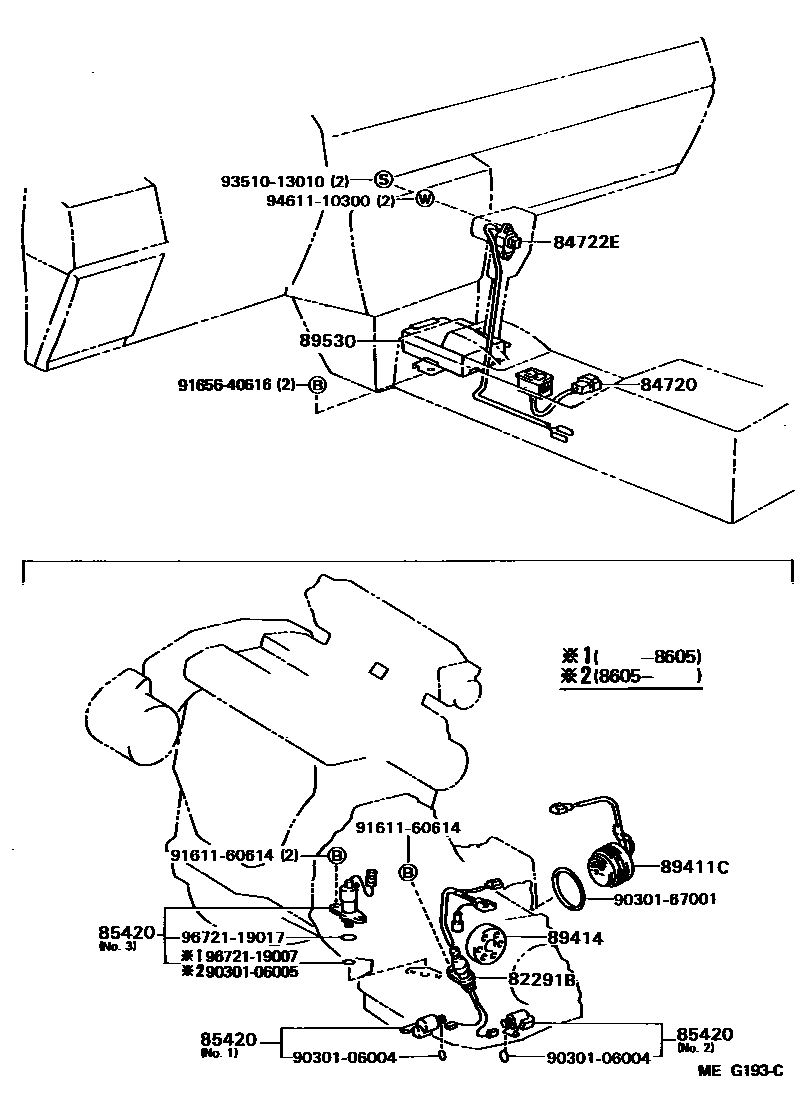

ELECTRONIC CONTROLLED TRANSMISSION

82291BWIRE, TO SOLENOID (FOR TRANSMISSION)

main82125-20090iST162..4FC..GTS198508-198708

84720SWITCH ASSY, PATTERN SELECT

main84720-20060iST162..4FC..GTS198508-198708

84722ESWITCH, TRANSMISSION CONTROL

main84722-20040-03iST162..4FC..GTS198508-198708

GRAY,GRAY,TRIM1#

sub84722-20040

main84722-20040-05iST162..4FC..GTS198508-198708

BEIGE,BEIGE,TRIM4#

sub84722-20040

main84722-20040-12iST162..4FC..GTS198508-198708

RED,RED,TRIM3#

sub84722-20040

main84722-20040-24iST162..4FC..GTS198508-198708

BLUE,BLUE,TRIM8#

sub84722-20040

85420SOLENOID ASSY, TRANSMISSION

main85420-32020iST162..4FC..GTS198508-198708

NO.1,AISIN

sub85420-32021

main85420-32030iST162..4FC..GTS198508-198708

NO.1,DENSO

sub85420-32020

main85420-32040iST162..4FC..GTS198508-198708

NO.2,AISIN

sub85420-32041

main85420-32050iST162..4FC..GTS198508-198708

NO.2,DENSO

sub85420-32040

main85420-32070iST162..4FC198508-198605

NO.3

sub85420-32071

main85420-32071iST162..4FC..GTS198605-198708

NO.3

sub85420-32061

89411CSENSOR, SPEED

main89411-20020iST162..4FC..GTS198508-198708

sub89411-32040

89414ROTOR, SENSOR

main89414-32010iST162..4FC..GTS198508-198708

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-20090iST162..4FC..GTS198508-198708

9030106004

main90301-06004

9030106005

main90301-06005

9030167001

main90301-67001

9161160614

main91611-60614

9165640616

main91656-40616

9351013010

main93510-13010

9461110300

main94611-10300

9672119007

main96721-19007

9672119017

main96721-19017

16 parts on this diagram · 1 diagram in section
