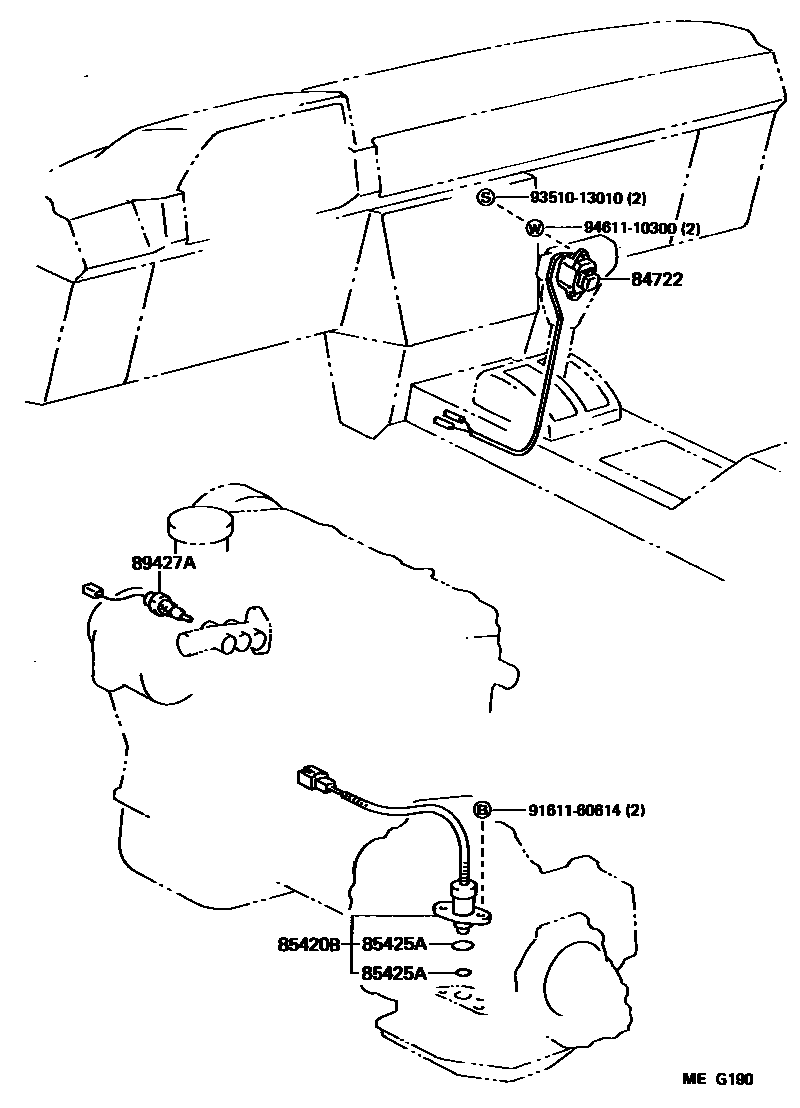

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-03iST16#..4FC..(GT,ST)198508-198708

GRAY,GRAY,TRIM1#

sub84722-20040

main84722-20040-05iST16#..4FC..(GT,ST)198508-198708

BEIGE,BEIGE,TRIM4#

sub84722-20040

main84722-20040-12iST16#..4FC..(GT,ST)198508-198708

RED,RED,TRIM3#

sub84722-20040

main84722-20040-24iST16#..4FC..(GT,ST)198508-198708

BLUE,BLUE,TRIM8#

sub84722-20040

85420BSOLENOID ASSY, TRANSMISSION

main85420-32080iST161..4FC198508-198605

sub85420-32081

main85420-32081iST16#..4FC..(GT,ST)198605-198708

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iST16#..4FC..(GT,ST)198605-198708

ID=6.6

main96721-19007iST161..4FC198508-198605

ID=7

main96721-19017iST16#..4FC..(GT,ST)198508-198708

ID=17

89427ASWITCH, TEMPERATURE

main89427-12070iST16#..4FC..(GT,ST)198508-198708

9161160614

main91611-60614

9351013010

main93510-13010

9461110300

main94611-10300

7 parts on this diagram · 1 diagram in section
