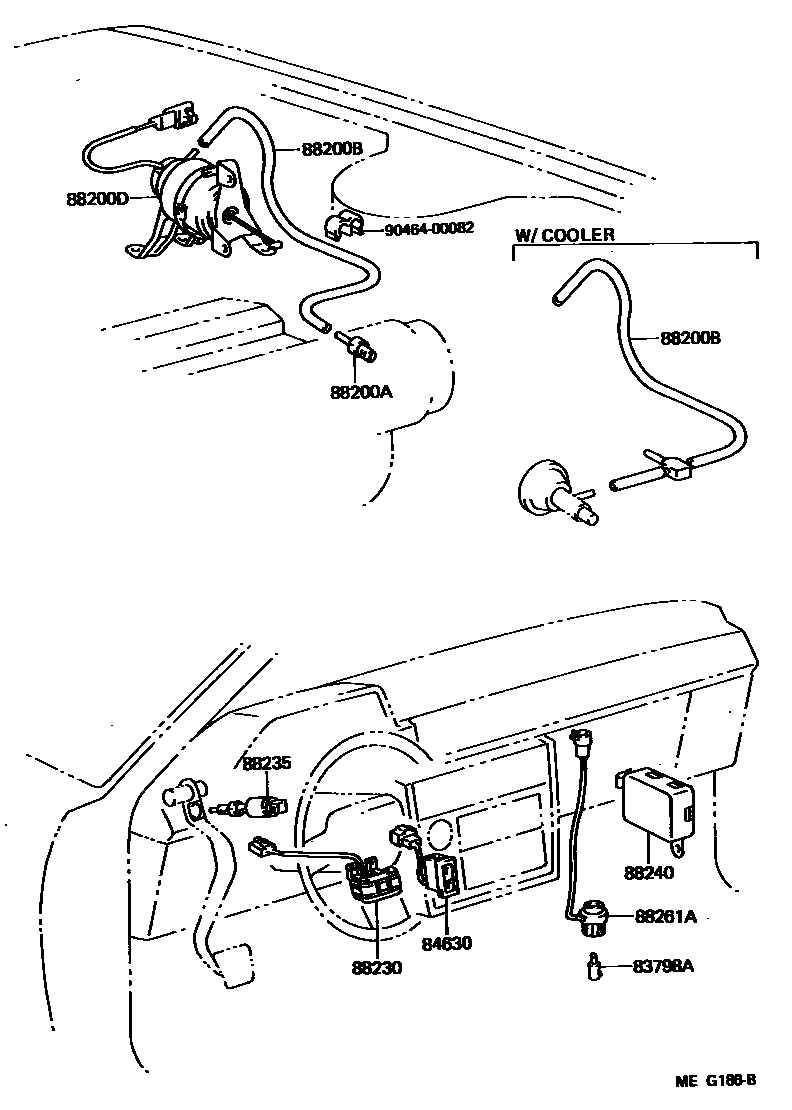

CRUISE CONTROL (AUTO DRIVE)

83798AKEY, SPEEDOMETER CABLE ADAPTER

main83798-20010iST16#..GT,GTS198508-198708

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-20030iST16#..GT,GTS198508-198708

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iST162..GTS198508-198708

88200BHOSE, CRUISE CONTROL VACUUM

main88283-20010iST162..GTS198508-198708

W/COOLER

main95411-19995iST162..GTS198508-198708

*H,L=700,MARK=#*

sub90999-92004

main95411-19995iST162..GTS198508-198708

*H,L=850,MARK=#*

sub90999-92004

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20040iST16#..GT,GTS198508-198708

sub88200-20041

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-20050iST16#..GT,GTS198508-198708

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iST16#..5F..(GT,GTS)198508-198708

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20080iST16#..GT,GTS198508-198604

main88240-20081iST16#..GT,GTS198604-198708

sub88240-20230

88261ASENSOR, SPEED CRUISE CONTROL

main88261-20040iST16#..GT,GTS198508-198708

sub88261-20050

sub83798-20020

9046400082

main90464-00082

10 parts on this diagram · 1 diagram in section
