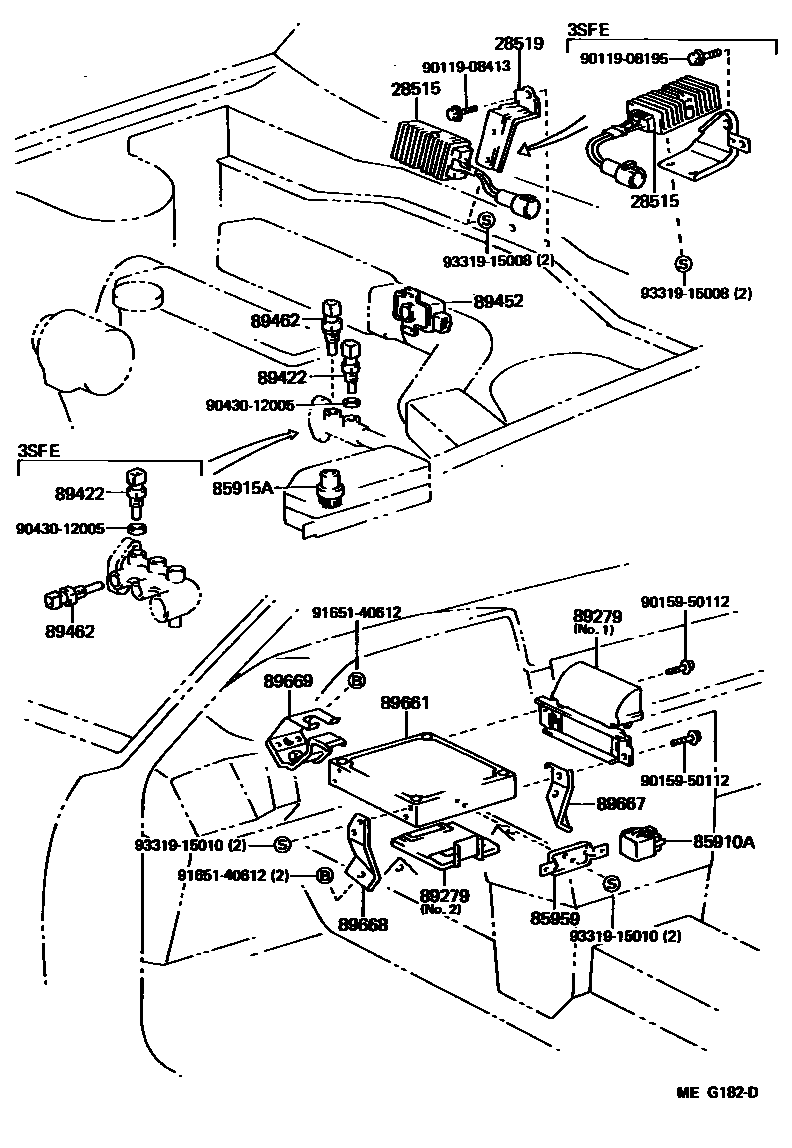

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-52010i2SELC,3SFE..ST16#198508-198708

sub28515-11010

28519BRACKET, SOLENOID RESISTOR

main28519-20020i2SELC..ST161198508-198608

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iST16#198508-198708

85915ARELAY, MAIN

main90987-02004iST16#198508-198708

85959HOLDER, RELAY

main85959-20040iST16#198508-198708

89279COVER, ENGINE CONTROL COMPUTER

main89279-20030iST16#198508-198708

NO.2

main89279-32030iST16#..GT,ST198508-198708

NO.1

main89279-32040iST162..GTS198508-198708

NO.1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iST16#198508-198708

sub89422-12010

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20050iST162..GTS198508-198708

main89452-32020iST16#..GT,ST198508-198708

89462SWITCH, START INJECTOR TIME

main89462-20010iST162..GTS198508-198708

main89462-30011iST16#..GT,ST198508-198708

89661COMPUTER, ENGINE CONTROL

main89661-20110iST162..GTS198608-198708

sub89661-20111

main89661-20140iST161198508-198608

main89661-20160iST162198508-198608

sub89661-20111

main89661-20280iST162..GT,ST198608-198708

sub89661-20281

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20070iST16#198508-198708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20050iST16#198508-198708

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-20030iST16#198508-198708

9011908195

main90119-08195

9011908413

main90119-08413

9015950112

main90159-50112

9043012005

main90430-12005

9165140612

main91651-40612

9331915008

main93319-15008

9331915010

main93319-15010

20 parts on this diagram · 2 diagrams in section
