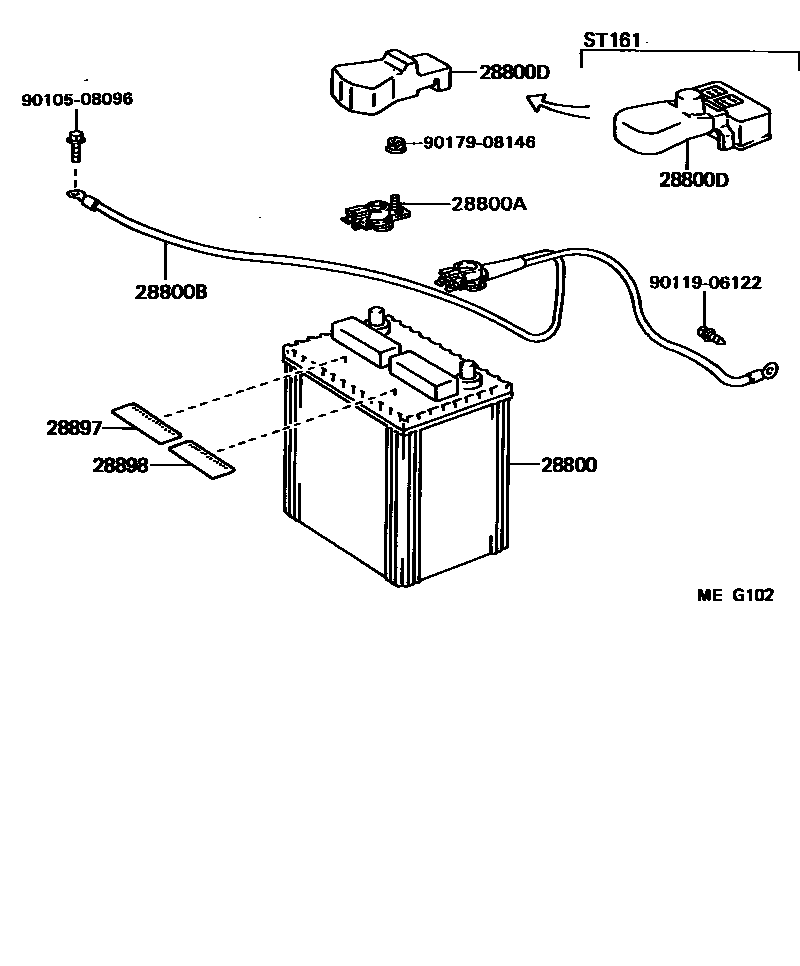

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31031i2SELC,3S#..ST16#..(CP,LB)..USA198508-198708

32C24L,32C24L(N40L-MF)

sub28800-31021

main28800-43220i2SELC,3S#..ST16#198508-198708

55D23L,55D23L-MF

sub28800-74170

28800ATERMINAL, BATTERY POSITIVE

main90982-05029i3SFE..ST162198608-198708

sub90982-05030

main90982-05030i2SELC,3SGELC..ST16#198508-198708

28800BCABLE, BATTERY TO GROUND

main82123-20090i2SELC,3S#..ST16#198508-198708

sub82123-20091

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i3SGELC..ST162198508-198708

main82821-20140i2SELC..ST161198508-198608

28897PLATE, BATTERY CAUTION

main28897-26010i2SELC,3S#..ST16#..(CP,LB)..USA198508-198708

main28897-38010i2SELC,3S#..ST16#..CND198508-198708

28898PLATE, BATTERY

main28898-26010i2SELC,3S#..ST16#..USA198508-198708

9010508096

main90105-08096

9011906122

main90119-06122

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
