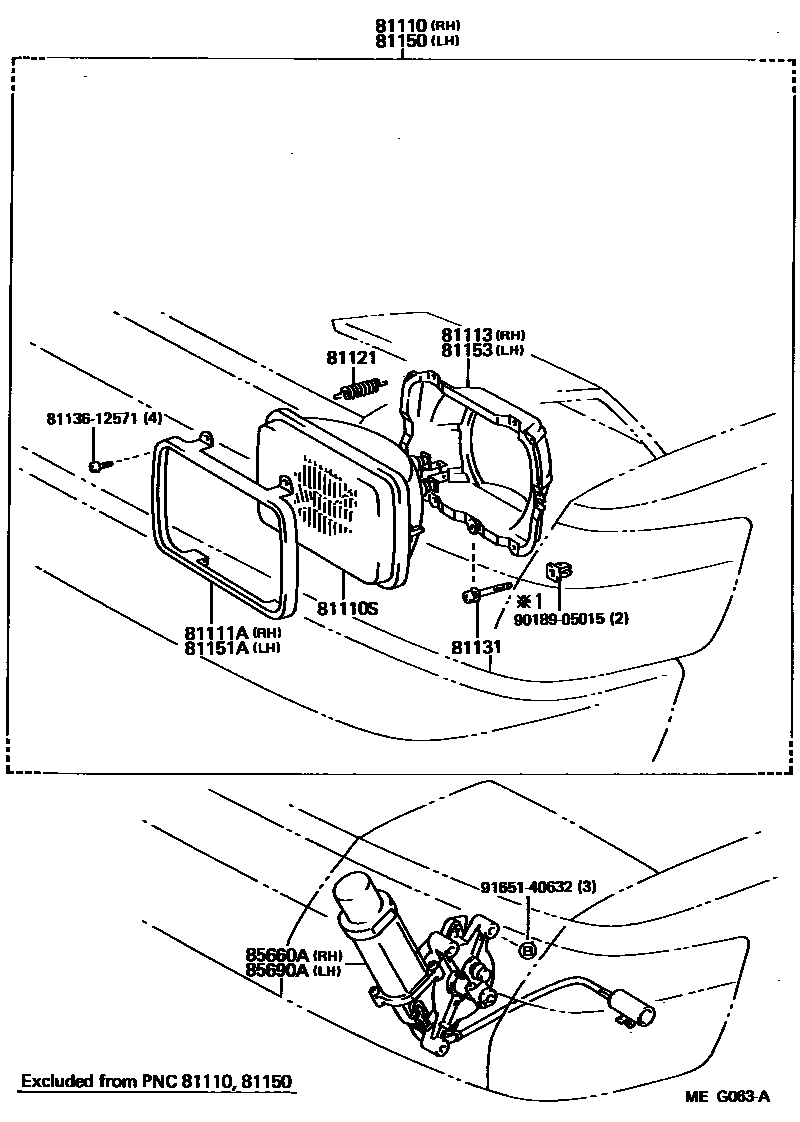

HEADLAMP
81110HEADLAMP ASSY, RH
HALOGEN
KOITO
IKI
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB,KOITO,12V 65/55W
12V 65/35W,*HAL,*WB,12V 65/35W,HALOGEN
81111ARING, SEALED BEAM RETAINING, NO.1 RH
IKI
81113RING, SEALED BEAM MOUNTING, NO.1 RH
KOITO
IKI
81121SPRING, HEADLAMP TENSION
IKI
KOITO
81131SCREW, HEADLAMP ADJUSTING
IKI
KOITO
81150HEADLAMP ASSY, LH
HALOGEN
KOITO
IKI
81151ARING, SEALED BEAM RETAINING, NO.1 LH
IKI
81153RING, SEALED BEAM MOUNTING, NO.1 LH
KOITO
IKI
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905015
main90189-05015
9165140632
main91651-40632
14 parts on this diagram · 1 diagram in section
