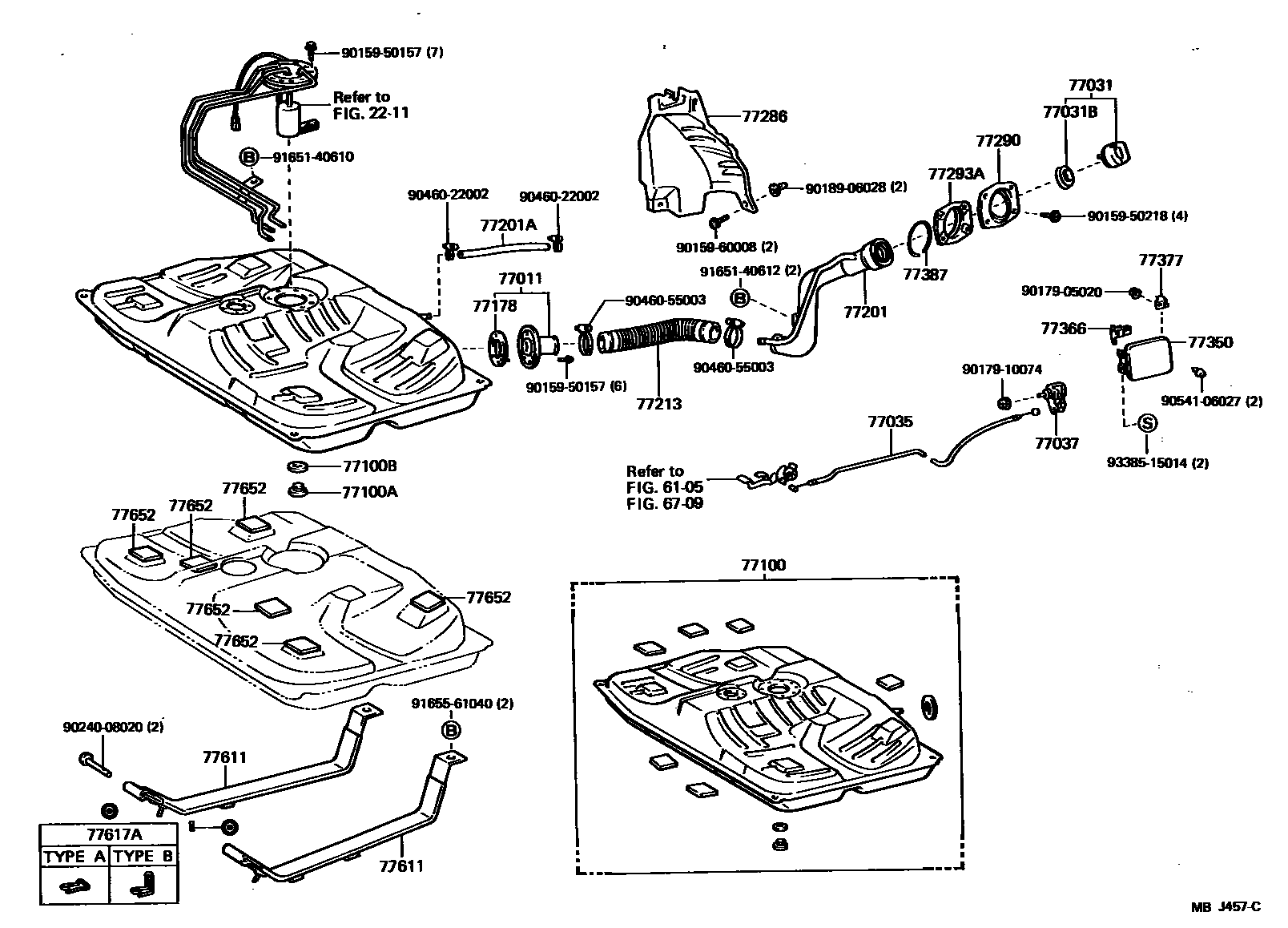

FUEL TANK & TUBE
2211
6105
6709
77031CAP ASSY, FUEL TANK
sub77310-16011
77031BGASKET (FOR FUEL TANK CAP)
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
sub77035-14090
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
sub77037-38010
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
*H,L=240
77213HOSE, FUEL TANK SUB INLET
77286PROTECTOR, FUEL TANK INLET PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77387RING, FUEL INLET BOX
77611BAND, FUEL TANK
RH
LH
77617AUNION, AUXILIARY FUEL BAND
TYPE B
TYPE A
77652CUSHION, FUEL TANK, NO.1
9015950157
main90159-50157
9015950218
main90159-50218
9015960008
main90159-60008
9017905020
main90179-05020
9017910074
main90179-10074
9018906028
main90189-06028
9024008020
main90240-08020
9046022002
main90460-22002
9046055003
main90460-55003
9054106027
main90541-06027
9165140610
main91651-40610
9165140612
main91651-40612
9165561040
main91655-61040
9338515014
main93385-15014
39 parts on this diagram · 2 diagrams in section
