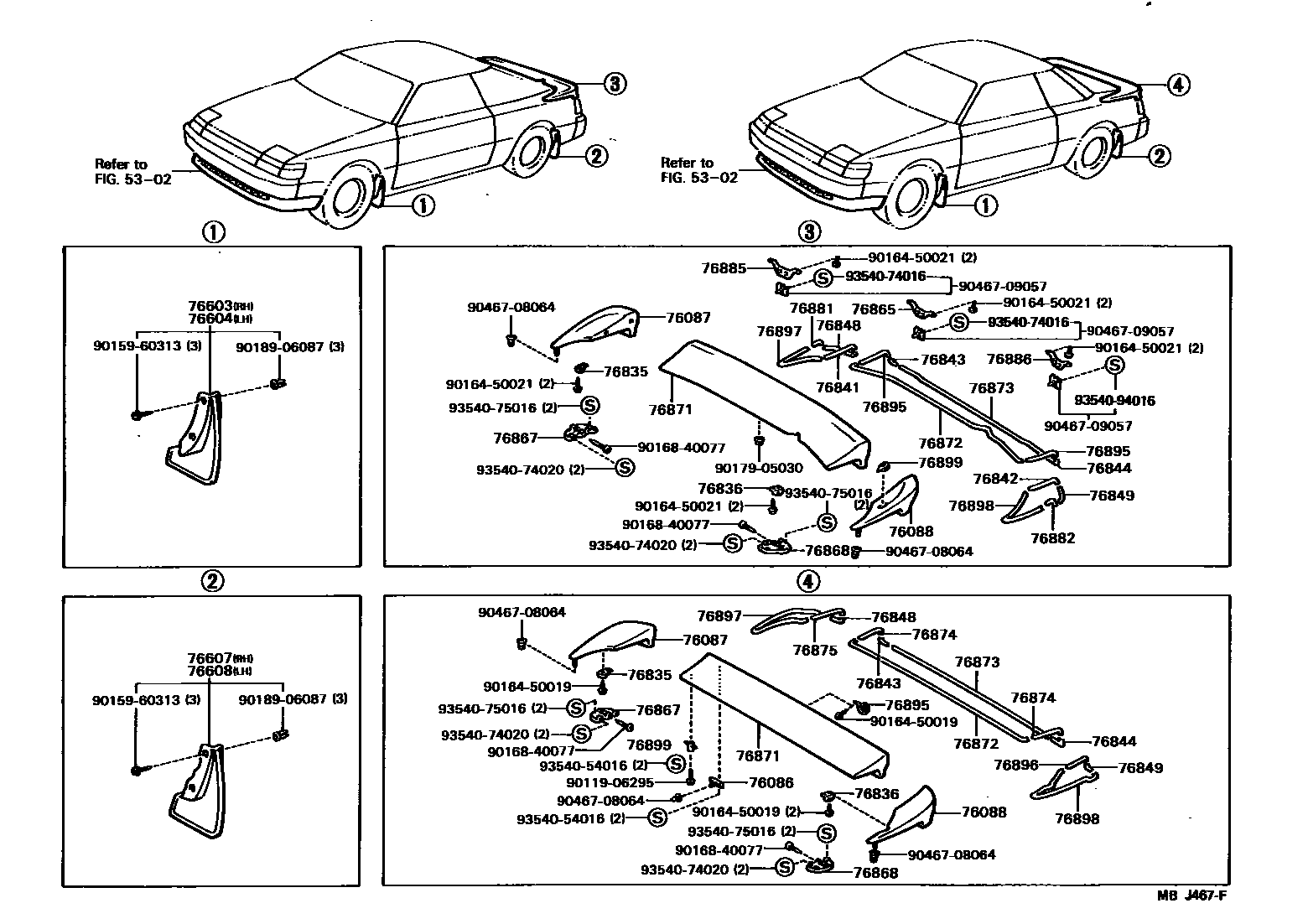

MUDGUARD & SPOILER
5302
76086RETAINER SUB-ASSY, REAR SPOILER
76087SPOILER SUB-ASSY, REAR NO.1
76088SPOILER SUB-ASSY, REAR NO.2
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76835RETAINER, REAR SPOILER SIDE, NO.1
76836RETAINER, REAR SPOILER SIDE, NO.2
76841PROTECTOR, REAR SPOILER SIDE, NO.5 RH
76842PROTECTOR, REAR SPOILER SIDE, NO.5 LH
76843PROTECTOR, REAR SPOILER, NO.11 RH
76844PROTECTOR, REAR SPOILER, NO.11 LH
76848PROTECTOR, REAR SPOILER, NO.12 RH
76849PROTECTOR, REAR SPOILER, NO.12 LH
76865RETAINER, REAR SPOILER, NO.1
76867RETAINER, REAR SPOILER SIDE, RH
76868RETAINER, REAR SPOILER SIDE, LH
76871SPOILER, REAR
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76885RETAINER, REAR SPOILER, NO.5
76886RETAINER, REAR SPOILER, NO.6
76895PROTECTOR, REAR SPOILER, NO.5
76896PROTECTOR, REAR SPOILER, NO.6
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76899PROTECTOR, REAR SPOILER, SIDE NO.6
9011906295
9015960313
9016450019
9016450021
9016840077
9017905030
9018906087
9046708064
9046709057
9354054016
9354074016
9354074020
9354075016
9354094016
main93540-94016
47 parts on this diagram · 1 diagram in section
