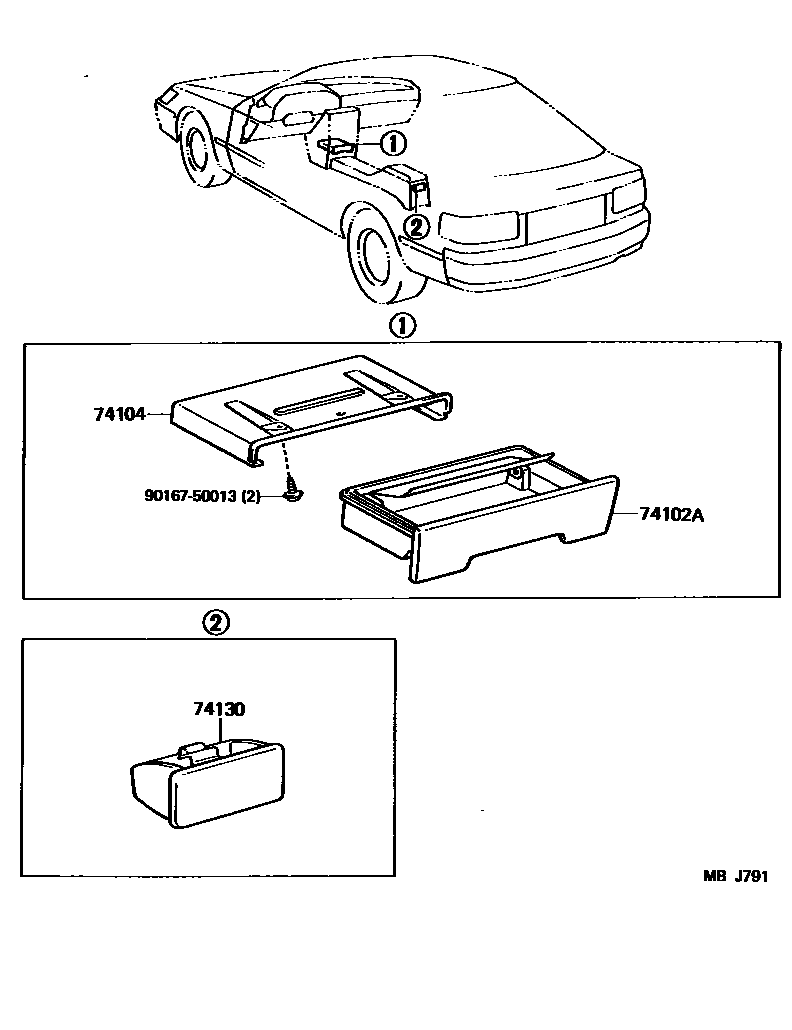

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-20120-02iST16#..ST198508-198708

RED,RED,TRIM3#

sub74102-20130

main74102-20120-03iST16#..ST198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74102-20130

main74102-20120-04iST16#..ST198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74102-20130

main74102-20120-06iST16#..ST198508-198708

BROWN,BROWN,TRIM4#

sub74102-20130

main74102-20130-02iST16#..(CP,LB)..(GT,GTS)198508-198708

RED,RED,TRIM3#

sub74102-20130

main74102-20130-03iST16#..GT,GTS198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74102-20130

main74102-20130-04iST16#..(CP,LB)..(GT,GTS)198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74102-20130

main74102-20130-06iST16#..(CP,LB)..(GT,GTS)198508-198708

BROWN,BROWN,TRIM4#

sub74102-20130

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-20170iST16#198508-198708

74130RECEPTACLE ASSY, REAR ASH

main74109-20040-02iST16#..CP,LB198508-198610

RED,RED,TRIM3#

sub74109-32010

main74109-20040-03iST16#198508-198610

GRAY,SHADOW GRAY,TRIM1#

sub74109-32010

main74109-20040-04iST16#..CP,LB198508-198610

BLUE,DEEP BLUE,TRIM8#

sub74109-32010

main74109-20040-06iST16#..CP,LB198508-198610

BROWN,BROWN,TRIM4#

sub74109-32010

main74109-32010-12iST162..CP,LB198610-198708

RED,RED,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-13iST162198610-198708

GRAY,SHADOW GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-14iST162..CP,LB198610-198708

BLUE,BLUE,TRIM8#

sub74109-20080

sub74109-32010

main74109-32010-16iST162..CP,LB198610-198708

BROWN,BROWN,TRIM4#

sub74109-20080

sub74109-32010

9016750013

main90167-50013

4 parts on this diagram · 1 diagram in section
